2015 Yamaha VX (VX1100CP) Electrical 3 Diagram

← All diagrams

Find the part on the Electrical 3 diagram for your 2015 Yamaha VX (VX1100CP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

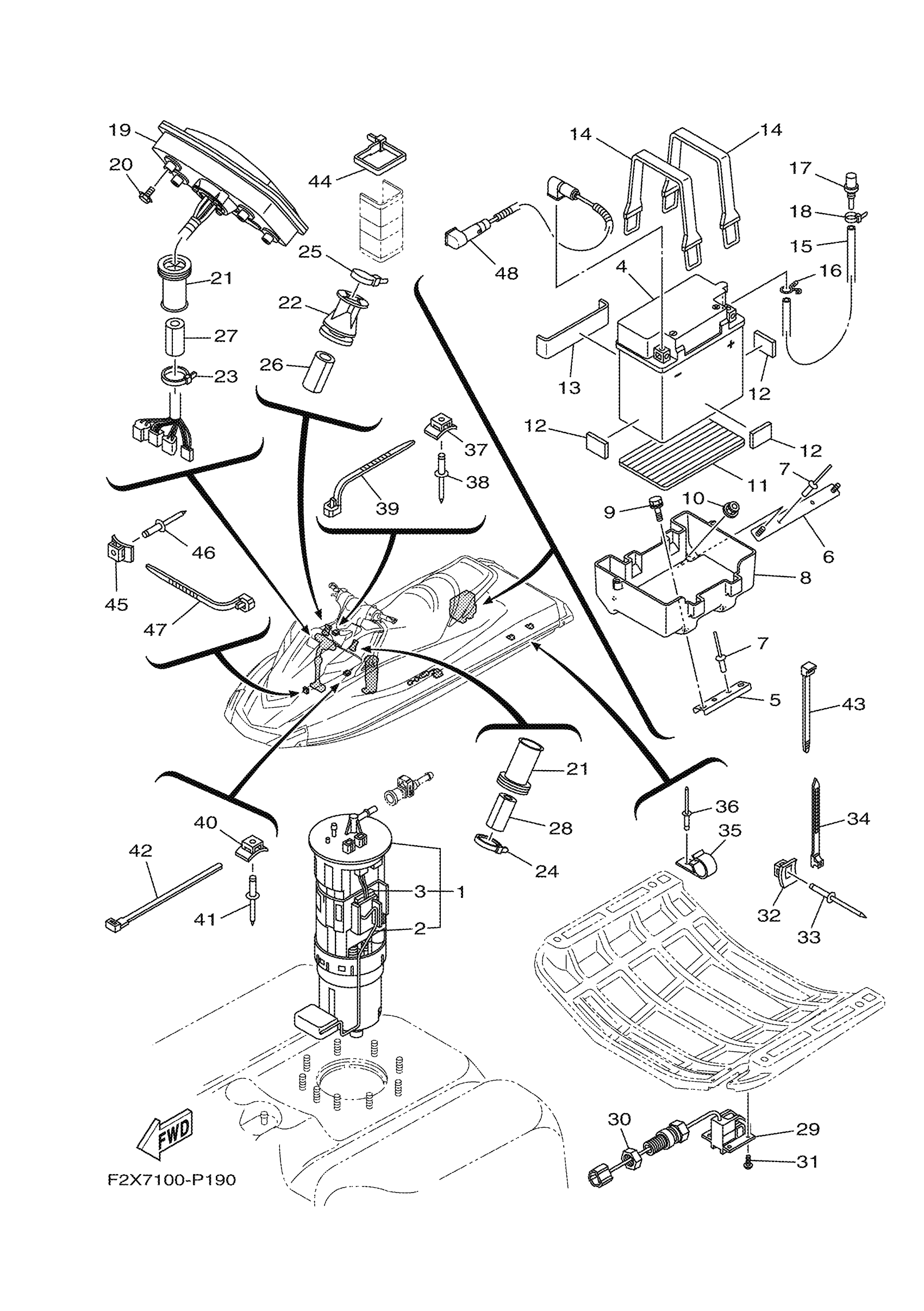

2015 Yamaha VX (VX1100CP) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL PUMP COMP.

60E-13907-0X-00

1
Out of stock

2

. FUEL SENDER ASSY

60E-682E0-00-00

1
Out of stock

3

DAMPER, STOPPER

60E-82556-10-00

1
Out of stock

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1
Out of stock

5

PLATE, BASE 2

F2S-U8592-00-00

1
Out of stock

6

PLATE, BASE 3

F2S-U8593-00-00

1
Out of stock

7

RIVET (EU0)

90267-48938-00

1
Out of stock

8

CASE, BATTERY

F2S-U8211-00-00

1
Out of stock

9

BOLT, WITH WASHER

90119-06820-00

1
Out of stock

10

NUT, LOCK

F2N-U142L-00-00

1
Out of stock

11

PAD, BATTERY

F1S-U8221-00-00

1
Out of stock

12

PAD, BATTERY

EU0-U8221-31-00

1
Out of stock

13

PAD, BATTERY

F1K-U8221-00-00

1
Out of stock

14

BAND,BATTERY 1

EU0-U821D-00-00

1
Out of stock

15

HOSE, AIR VENT

F0D-U785G-11-00

1
Out of stock

16

CLIP

90467-089U1-00

1
Out of stock

17

NIPPLE

GJ3-6215F-00-00

1
Out of stock

18

CLAMP

90465-10098-00

1
Out of stock

19

METER ASSY

F2X-U820A-20-00

1
Out of stock

20

BOLT, WITH WASHER

90119-05803-00

1
Out of stock

21

GROMMET

GU2-6822E-01-00

1
Out of stock

22

GROMMET

F3J-U822E-01-00

1
Out of stock

23

CLAMP

90464-32801-00

1
Out of stock

24

CLAMP

90464-32801-00

1
Out of stock

25

CLAMP

90464-32801-00

1
Out of stock

26

PACKING, HOSE 2

GJ1-U7578-22-00

—
Out of stock

27

PACKING, HOSE 2

GJ1-U7578-12-00

—
Out of stock

28

PACKING, HOSE 2

GJ1-U7578-12-00

—
Out of stock

29

SENSOR SPEED

F1S-U8K31-03-00

1
Out of stock

30

NUT

F2C-U151S-00-00

1
Out of stock

31

SCREW, ROUND HEAD

90150-05807-00

1
Out of stock

32

BASE, CLAMP

F1W-U828M-00-00

1
Out of stock

33

RIVET, BLIND

90267-489U6-00

1
Out of stock

34

CLAMP

90464-32801-00

1
Out of stock

35

CLAMP

F3J-U8368-01-00

1
Out of stock

36

RIVET, BLIND

90267-409U5-00

1
Out of stock

37

BASE, CLAMP

F1W-U828M-00-00

1
Out of stock

38

RIVET, BLIND

90267-489U6-00

1
Out of stock

39

CLAMP

90464-32801-00

1
Out of stock

40

BASE, CLAMP

F1W-U828M-00-00

1
Out of stock

41

RIVET, BLIND

90267-489U6-00

1
Out of stock

42

BAND

90601-200U2-00

1
Out of stock

43

CLAMP

F2C-U4256-00-00

1
Out of stock

44

BAND

90601-200U2-00

1
Out of stock

45

BASE, CLAMP

F1W-U828M-00-00

1
Out of stock

46

RIVET, BLIND

90267-48803-00

1
Out of stock

47

CLAMP

90464-32801-00

1
Out of stock

48

WIRE, MINUS LEAD

6BU-82116-00-00

1
Out of stock
