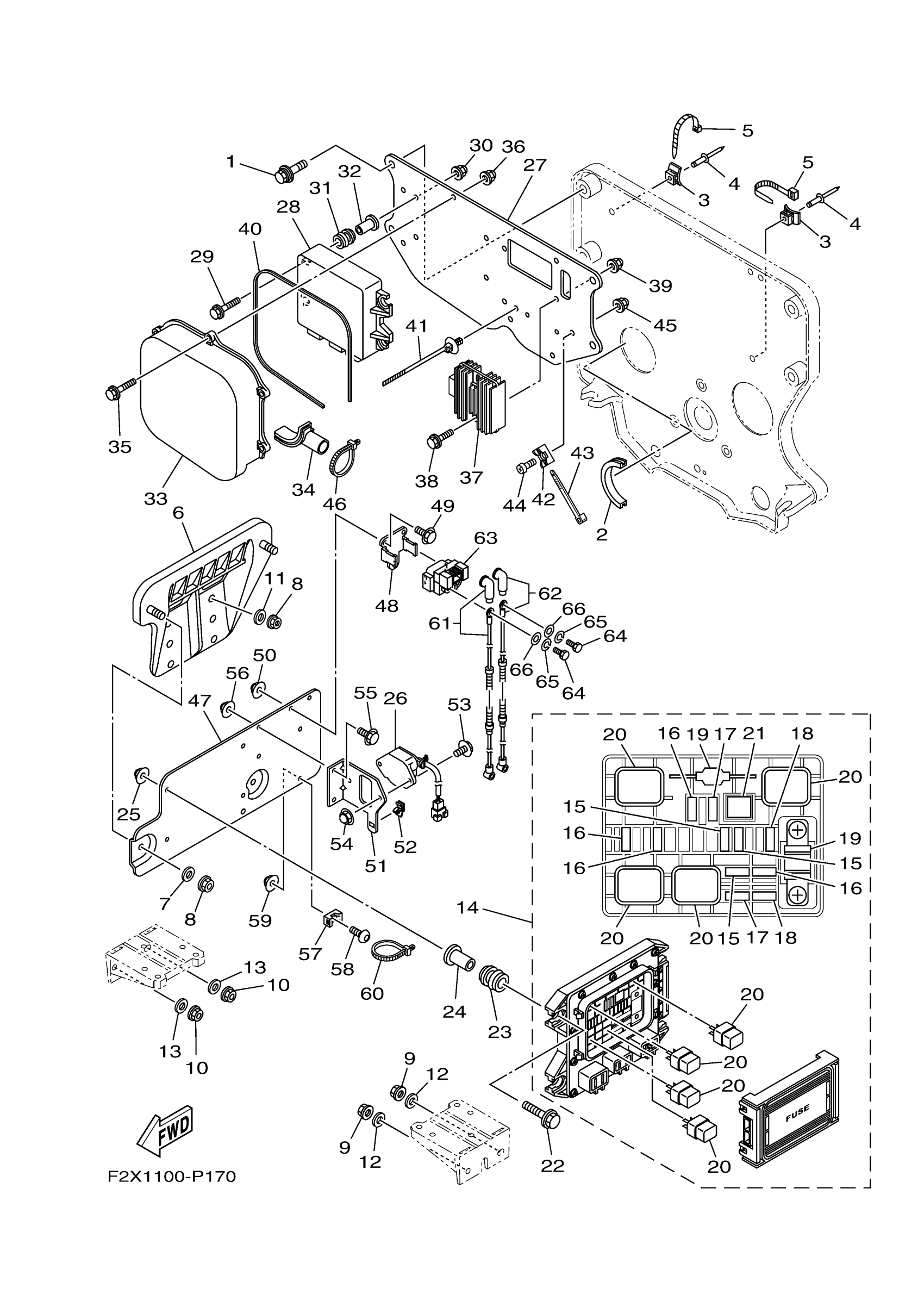

Yamaha VX1100CP (VX) F2X7 2015 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08800-00

$4.31

2

TRIM, 1

F1S-U828H-01-00

$6.42

3

BASE, CLAMP

F1W-U828M-00-00

$1.29

4

RIVET, BLIND

90267-48802-00

$1.98

5

CLAMP

90464-32801-00

$1.29

6

BRACKET, ELECTRIC BOX

F2N-U815D-01-00

$32.82

7

WASHER, PLATE

90201-099U3-00

$2.30

8

NUT, NYLON (6J8)

95780-08300-00

$11.48

9

NUT, NYLON (6J8)

95780-08300-00

$11.48

10

NUT, NYLON (6J8)

95780-08300-00

$11.48

11

WASHER

9299R-08200-00

$1.82

12

WASHER

9299R-08200-00

$1.82

13

WASHER

9299R-08200-00

$1.82

14

FUSE BOX ASSY

6EX-82170-02-00

$195.31

15

. FUSE (3A)

67F-82151-30-00

$4.69

16

. FUSE (10A)

67F-82151-40-00

$6.40

17

FUSE

5JJ-82151-20-00

Unavailable

18

FUSE

5JJ-82151-60-00

Unavailable

19

. FUSE (50A)

6EX-82151-00-00

$3.58

20

. RELAY ASSY

6EX-8195A-00-00

$15.95

21

. PULLER, FUSE

6EX-2812A-00-00

$1.34

22

BOLT, FLANGE

95814-06025-00

Unavailable

23

DAMPER, IGNITION C

6A0-82317-01-00

$6.68

24

. COLLAR

90387-06119-00

$4.60

25

NUT, CROWN (35R)

90176-06047-00

Unavailable

26

SWITCH ASSY

60E-8259E-00-00

$142.11

27

PLATE

6BU-81845-00-00

$174.61

28

ENGINE CONTROL UNIT ASSY

6EX-8591A-01-00

$2,440.28

29

BOLT, FLANGE

95814-06025-00

Unavailable

30

NUT, CROWN (35R)

90176-06047-00

Unavailable

31

DAMPER, IGNITION C

6A0-82317-01-00

$6.68

32

. COLLAR

90387-06119-00

$4.60

33

COVER

6BU-81639-00-00

$56.70

34

GROMMET

6BU-81336-00-00

Unavailable

35

BOLT, FLANGE

95814-06020-00

Unavailable

36

NUT, CROWN (35R)

90176-06047-00

Unavailable

37

RECTIFIER & REGULATOR ASSY

6S8-81960-00-00

$152.37

38

BOLT, FLANGE

95814-06020-00

Unavailable

39

NUT, CROWN (35R)

90176-06047-00

Unavailable

40

GASKET

6BU-81861-00-00

$5.82

41

CLAMP

90464-20005-00

$2.16

42

BRACKET 1

60E-1244E-00-00

$7.16

43

BAND, SWITCH CORD

437-83936-11-00

Unavailable

44

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

45

NUT, CROWN (35R)

90176-06047-00

Unavailable

46

CLAMP

90465-13M18-00

$1.79

47

PLATE

6EX-81845-00-00

$41.78

48

STAY, RELAY

6EX-81953-00-00

$4.93

49

BOLT, FLANGE

95814-06012-00

$2.13

50

NUT, CROWN (35R)

90176-06047-00

Unavailable

51

PLATE

6EX-82588-00-00

$7.16

52

CLAMP

90464-09M47-00

$4.25

53

BOLT, FLANGE

95814-06012-00

$2.13

54

NUT, CROWN (35R)

90176-06047-00

Unavailable

55

BOLT, FLANGE

95814-06012-00

$2.13

56

NUT, CROWN (35R)

90176-06047-00

Unavailable

57

BRACKET 1

60E-1244E-00-00

$7.16

58

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

59

NUT, CROWN (35R)

90176-06047-00

Unavailable

60

CLAMP

90465-13M18-00

$1.79

61

WIRE, PLUS LEAD

6EX-82115-00-00

$79.09

62

WIRE, LEAD

6EX-82117-00-00

$62.67

63

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

64

BOLT(GH1)

97080-06012-00

$2.56

65

WASHER, SPRING

92995-06100-00

$3.04

66

WASHER, PLAIN (646)

92990-06600-00

Unavailable
