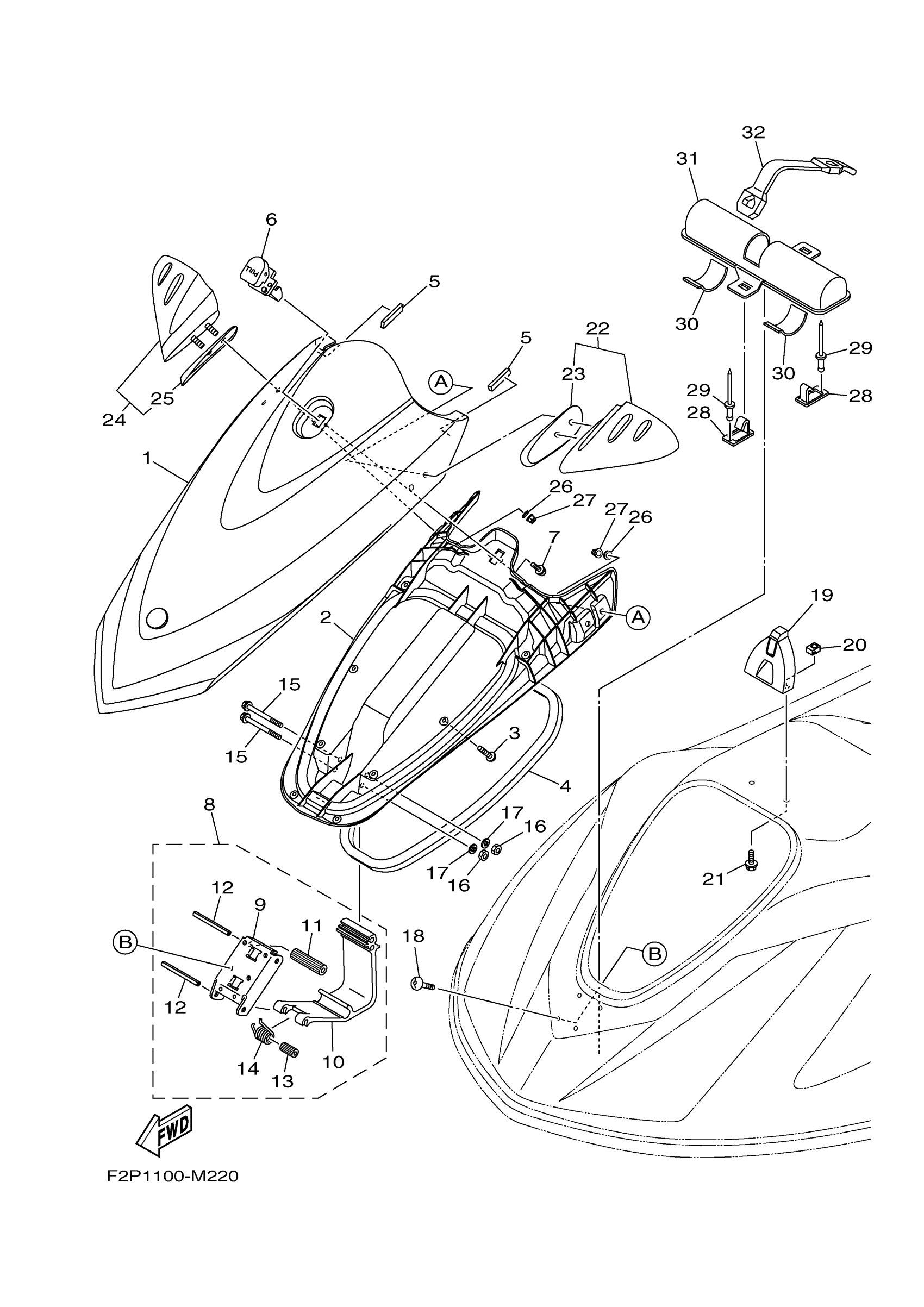

Yamaha VX1100CN (VX SPORT) F2PG 2014 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (DNMC)

F2N-U517B-10-PA

$129.40

2

COVER, VENTILATOR 1

F2N-U213B-01-00

$120.57

3

SCREW(GH1)

90149-05903-00

$2.37

4

PACKING 1

F2N-U2663-01-00

$47.28

5

. PACKING 3

F1K-U266B-00-00

$1.23

6

LOCK, LID

F1K-6517C-00-00

Unavailable

7

BOLT, WITH WASHER (EW3)

90119-05912-00

$3.84

8

HINGE ASSY.

F1K-U515A-00-00

$305.87

9

. PLATE, HINGE LID

F1K-U518E-04-00

$41.16

10

. HINGE, LID

F1K-U517D-05-00

$305.87

11

. ROLLER, DETENT

F1K-U135C-01-00

$8.81

12

PIN, HINGE

F1K-U517R-01-00

$3.37

13

. SPACER 1

F1K-U471E-03-00

$13.22

14

. SPRING, TORSION

F1K-U283B-02-00

$5.96

15

BOLT, FLANGE

90105-06826-00

$3.16

16

NUT, NYLON

9572R-06300-00

$2.93

17

WASHER

9299R-06200-00

$0.43

18

SCREW

F2N-67823-10-00

$2.13

19

HOOK,LID LOCK

F2N-U517F-00-00

$6.62

20

NUT

F1X-U517E-01-00

$7.89

21

BOLT, WITH WASHER

90119-06880-00

$3.65

22

MIRROR LH

F2N-U596B-00-00

$45.73

23

. SPACER 1

F2N-U471E-00-00

$17.63

24

MIRROR RH

F2N-U596C-00-00

$45.73

25

. SPACER 2

F2N-U471F-00-00

$18.37

26

WASHER

9299R-08200-00

Unavailable

27

NUT, NYLON (6J8)

95780-08300-00

$10.09

28

HOOK A

F1K-U5772-04-00

$6.10

29

RIVET (EU0)

90267-48938-00

$4.85

30

MAT 2

F1K-U759C-00-00

$1.80

31

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$18.66

32

BAND 1

F2P-U828K-00-00

$6.17
