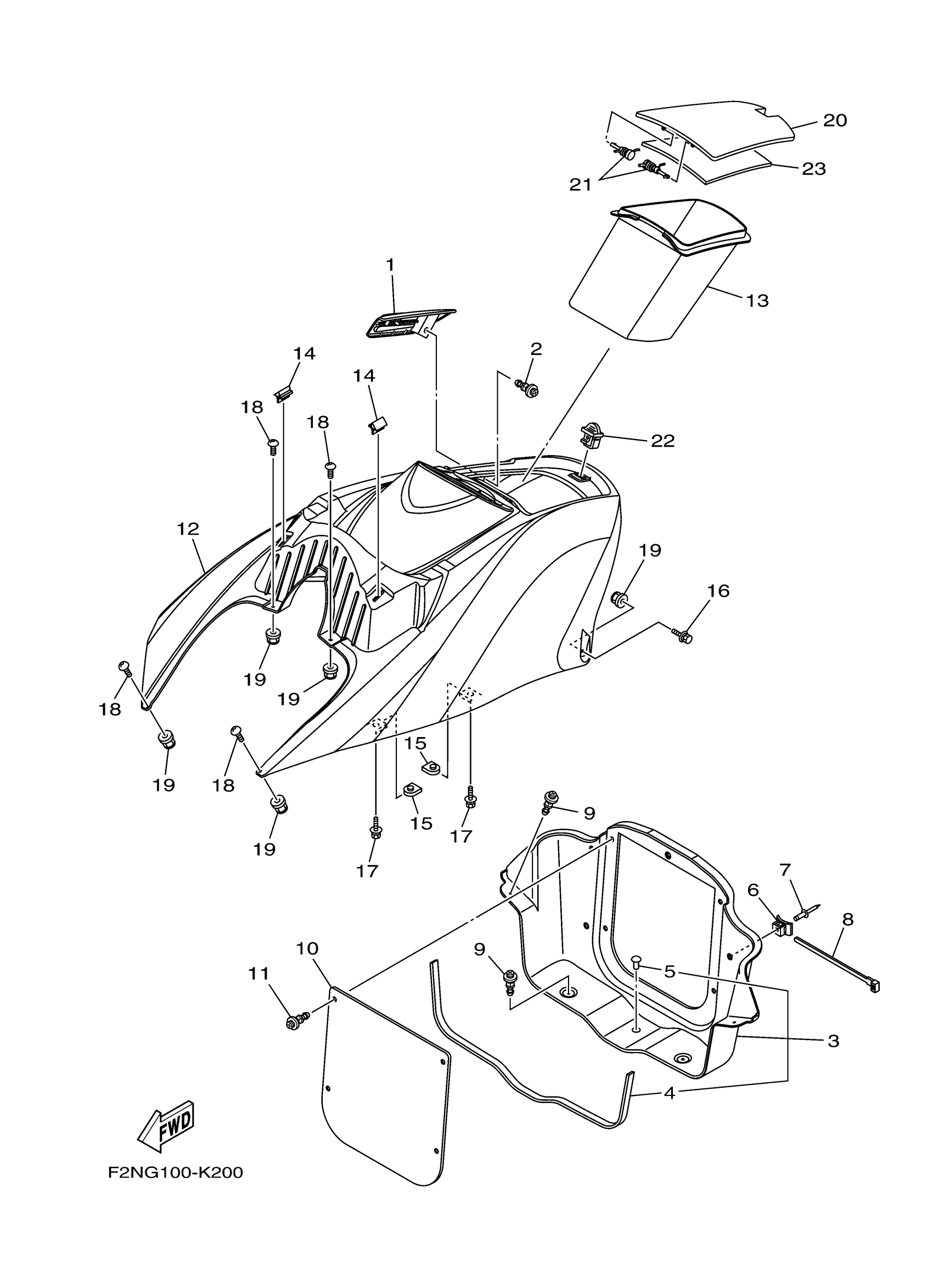

Yamaha VX1100CN (VX SPORT) F2PG 2014 ENGINE HATCH 1 Diagram

#

Description
Price

1

SEAL

F2N-U2723-00-00

$4.92

2

RIVET

90269-08801-00

$0.83

3

LOCKER,BOW

F2N-U475B-04-00

$98.47

4

PACKING 4

F2C-U266C-00-00

$7.35

5

. PLUG, BLIND

90605-502U1-00

$2.16

6

BASE, CLAMP

F1W-U828M-00-00

$1.23

7

RIVET, BLIND

90267-48803-00

$2.35

8

CLAMP

90464-32801-00

$1.23

9

RIVET

90269-08801-00

$0.83

10

PLATE, LOKER BOW

F1W-U475F-01-00

$12.91

11

RIVET

90269-08801-00

$0.83

12

COVER, ENGINE HATCH (DNMC)

F2N-U516N-00-P9

Unavailable

13

BOX GLOVE

F2N-U516P-00-00

$96.95

14

PACKING 4

F1K-U266C-10-00

$2.27

15

NUT, SPRING(GJ3)

90183-06902-00

$8.53

16

BOLT, WITH WASHER

90119-06880-00

$3.52

17

BOLT, WITH WASHER

90119-06878-00

$3.43

18

SCREW

F2N-67823-10-00

$2.02

19

NUT, LOCK

F2N-U142L-00-00

$1.00

20

LID HATCH

F2N-U517H-01-00

$47.39

21

PIN, HINGE

F0X-6517R-01-00

$7.77

22

LOCK

GU2-62875-02-00

$36.31

23

PACKING CASE

F2P-U519D-00-00

$23.47
