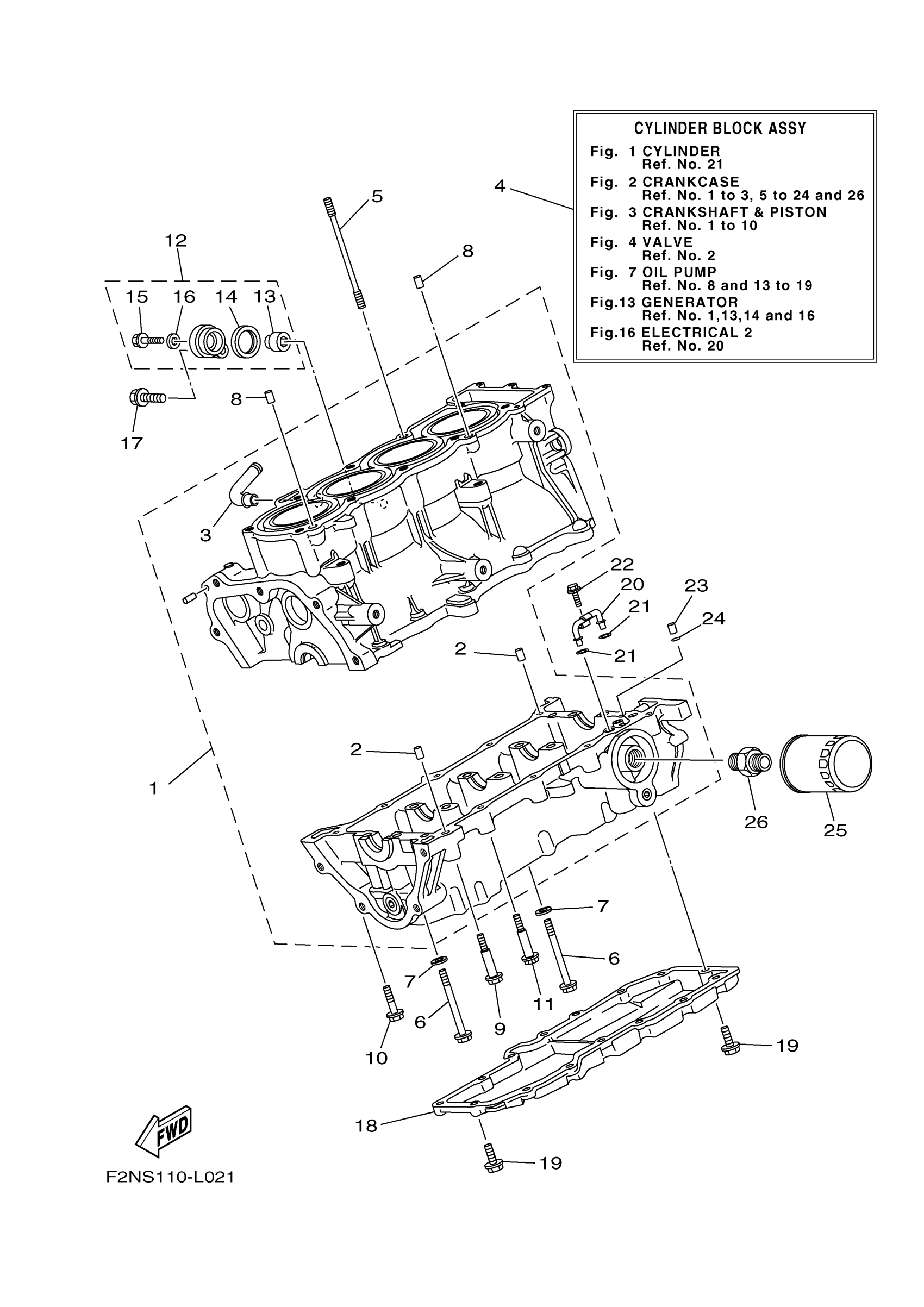

Yamaha VX1100CN (VX SPORT) F2PG 2014 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

6BU-15100-00-00

$2,543.92

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

CYLINDER BLOCK ASSY

6BU-W009B-01-94

Unavailable

4

. NIPPLE

6D3-51129-00-00

$24.98

5

BOLT, STUD

90116-10058-00

$5.91

6

BOLT, WASHER BASED

90105-093A5-00

$8.98

7

WASHER, PLATE(1AA)

90201-096J9-00

$2.61

8

PIN, DOWEL(3VD)

99530-10114-00

$2.13

9

BOLT

90109-06051-00

$5.00

10

BOLT, FLANGE(3JP)

95814-06070-00

$5.75

11

BOLT, FLANGE

90105-06M17-00

$5.29

12

ANODE COVER ASSY

69J-11301-11-00

$17.37

13

. ANODE

68V-11325-02-00

$16.45

14

GROMMET, ANODE

67F-11328-01-00

$3.50

15

BOLT (689)

90105-06M07-00

$1.82

16

. GASKET

90430-06M03-00

$2.80

17

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

$1.86

18

PAN, OIL

6B6-1310A-01-00

Unavailable

19

BOLT, WITH WASHER(61B)

97513-06520-00

Unavailable

20

PIPE, DELIVERY 1

60E-13161-00-00

$24.98

21

O-RING(26H)

93210-06667-00

Unavailable

22

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

23

PIN, DOWEL

99530-08012-00

$4.89

24

. O-RING

93210-08001-00

$1.51

25

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

26

BOLT, UNION

90401-20007-00

$13.86
