2022 Yamaha VX (VX1050FX) Engine Hatch 3 Diagram

← All diagrams

Find the part on the Engine Hatch 3 diagram for your 2022 Yamaha VX (VX1050FX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

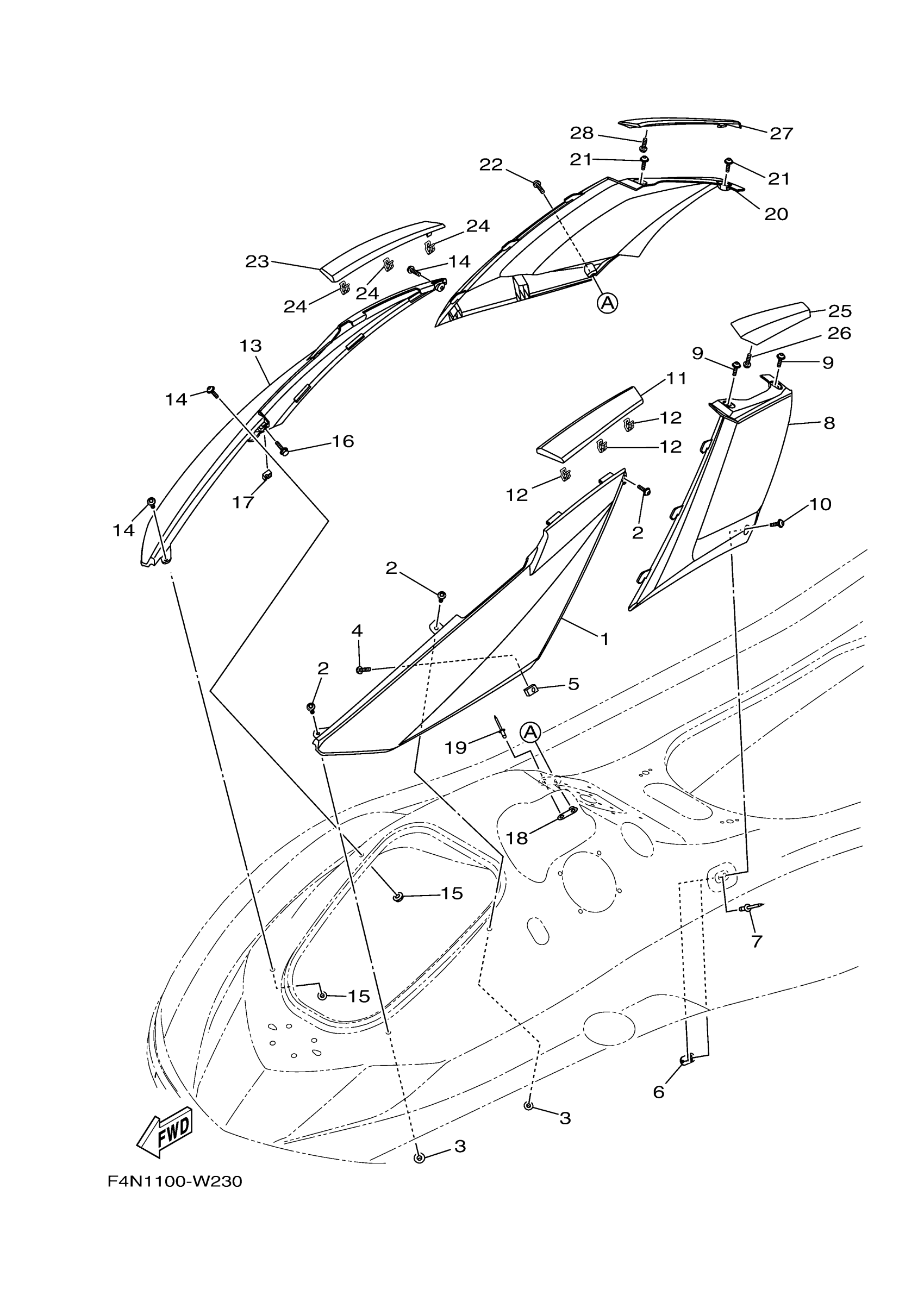

2022 Yamaha VX (VX1050FX) Engine Hatch 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,SIDE 1 (PURW)

F4N-U377B-00-P0

1

$199.98

In stock

2

SCREW

F3X-U7823-12-00

1

$1.31

In stock

3

NUT, LOCK

F2N-U142L-00-00

1

$1.54

In stock

4

BOLT, WITH WASHER

90119-06880-00

1

$3.92

In stock

5

NUT

F3X-U517E-00-00

1

$1.38

In stock

6

PLATE, FIX

F2X-U5175-00-00

1

$2.00

In stock

7

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

8

PAD, KNEE (SSA)

F4N-U353B-00-P3

1

$126.14

In stock

9

SCREW

F3X-U7823-12-00

1

$1.31

In stock

10

SCREW

F3X-U7823-02-00

1

$1.54

In stock

11

ORNAMENT LH

F4N-U517W-01-P3

1

$79.32

In stock

12

CLIP

F3Y-U153K-00-00

1

$1.46

In stock

13

COVER,SIDE 2 (PURW)

F4N-U377C-00-P0

1

$130.75

In stock

14

SCREW

F3X-U7823-12-00

1

$1.31

In stock

15

NUT, LOCK

F2N-U142L-00-00

1

$1.54

In stock

16

BOLT, WITH WASHER

90119-06880-00

1

$3.92

In stock

17

NUT

F3X-U517E-00-00

1

$1.38

In stock

18

PLATE, FIX

F2X-U5175-00-00

1

$2.00

In stock

19

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

20

PAD, KNEE 1 (SSA)

F4N-U353C-00-P3

—

$126.14

In stock

21

SCREW

F3X-U7823-12-00

1

$1.31

In stock

22

SCREW

F3X-U7823-02-00

1

$1.54

In stock

23

ORNAMENT RH

F4N-U517X-01-P3

—

$79.32

In stock

24

CLIP

F3Y-U153K-00-00

1

$1.46

In stock

25

ORNAMENT, MIDDLE LH (SSA)

F4N-U89AA-00-P3

1

$39.98

In stock

26

SCREW

F2S-U13C1-00-00

1

$2.69

In stock

27

ORNAMENT, MIDDLE RH (SSA)

F4N-U89AB-00-P3

1

$55.37

In stock

28

SCREW

F2S-U13C1-00-00

1

$2.69

In stock
