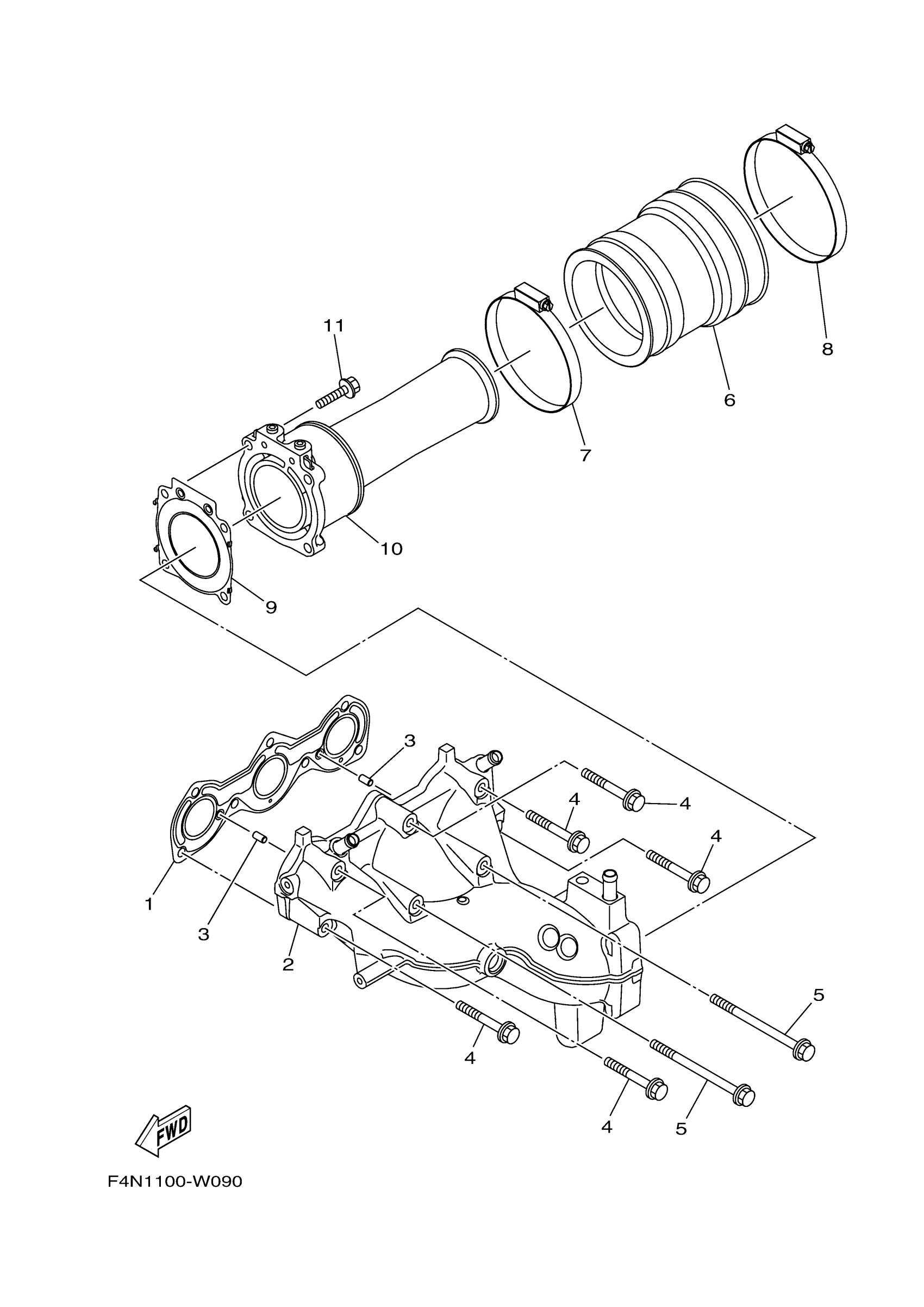

Yamaha VX1050FX (VX) F4NC 2022 EXHAUST 1 Diagram

#

Description
Price

1

. GASKET, EXHAUST PIPE

6GA-14613-00-00

$32.67

2

MUFFLER 1

6JS-14711-00-00

$582.07

3

PIN, DOWEL (614)

93606-12019-00

$3.50

4

BOLT, WITH WASHER

90119-08034-00

$3.41

5

BOLT, WITH WASHER

90119-08097-00

$5.31

6

PIPE, OUTLET

6S5-E4752-01-00

$25.11

7

HOSE CLAMP ASSY

90450-99808-00

$5.07

8

HOSE CLAMP ASSY

90450-99809-00

$5.45

9

. GASKET, MUFFLER DAMPER 2

6JS-14749-00-00

$15.07

10

PIPE, TAIL

6EY-14784-00-00

$107.45

11

BOLT, FLANGE (3JPE)

95024-08030-00

$8.54
