2016 Yamaha V1 (VX1050ER) Steering 2 Diagram

← All diagrams

Find the part on the Steering 2 diagram for your 2016 Yamaha V1 (VX1050ER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

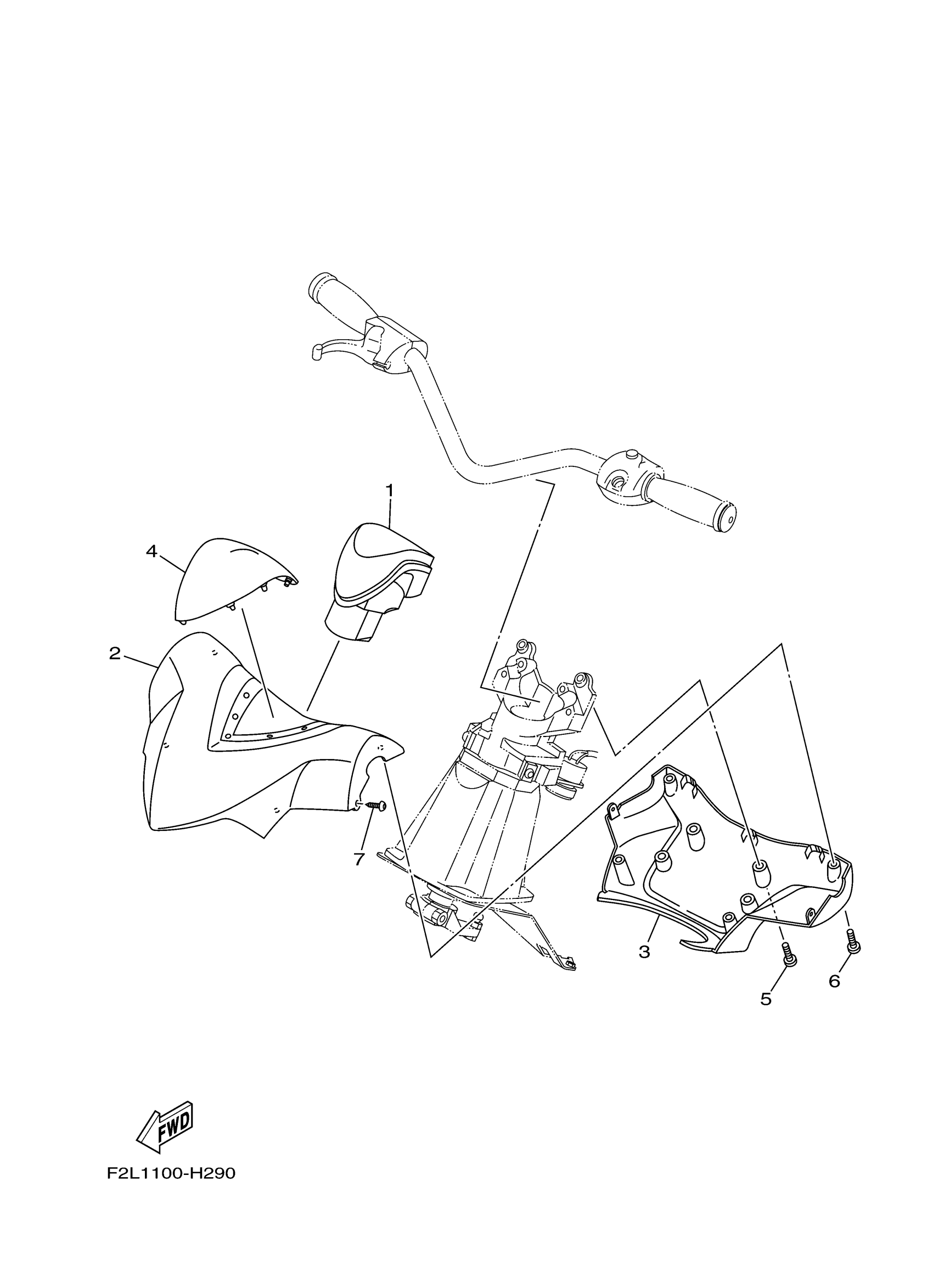

2016 Yamaha V1 (VX1050ER) Steering 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PAD 1

F1K-U156E-01-00

1
Out of stock

2

PAD, STEERING 1

F1K-U143D-10-00

1
Out of stock

3

PAD, STEERING 2

F1K-U143E-10-00

1
Out of stock

4

COVER, PAD

F1K-U142D-10-00

1
Out of stock

5

SCREW, BINDING

90154-06016-00

1
Out of stock

6

SCREW(GH1)

90149-05903-00

1
Out of stock

7

SCREW, TAPPING

90167-04003-00

1
Out of stock
