2016 Yamaha V1 (VX1050ER) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2016 Yamaha V1 (VX1050ER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

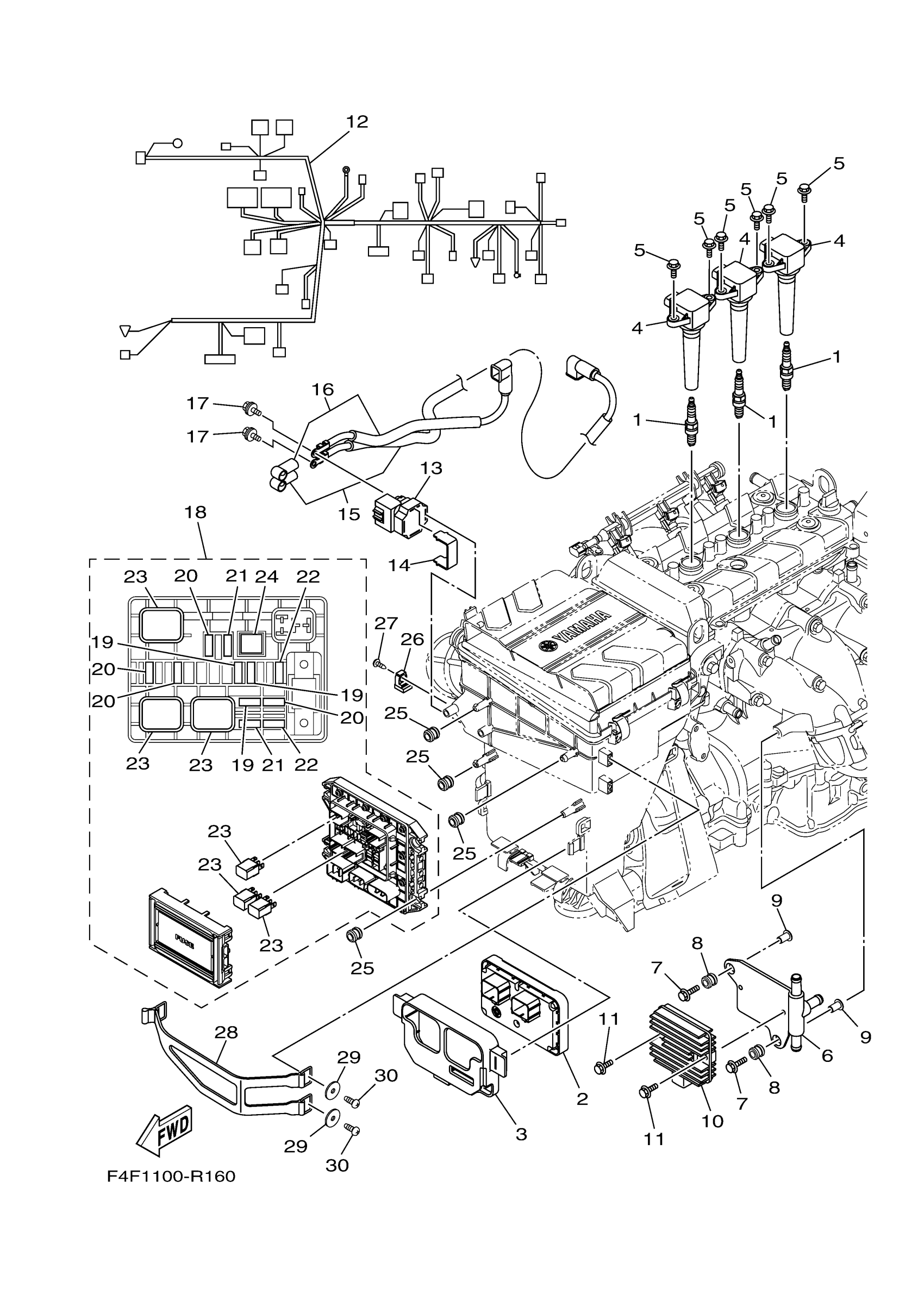

2016 Yamaha V1 (VX1050ER) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

1
Out of stock

2

ENGINE CONTROL UNIT ASSY

6FB-8591A-00-00

1
Out of stock

3

GROMMET, ECU

6EY-8591S-00-00

1
Out of stock

4

IGNITION COIL ASSY

6EX-82310-02-00

1
Out of stock

5

BOLT, FLANGE(JL8)

95880-06016-00

1
Out of stock

6

PLATE, RECTIFIER FITTING

6EY-81975-00-00

1
Out of stock

7

BOLT, WITH WASHER

90119-06311-00

1
Out of stock

8

DAMPER, IGNITION C

6A0-82317-01-00

1
Out of stock

9

. COLLAR

90387-06119-00

1
Out of stock

10

RECTIFIER & REGULA

6D3-81960-01-00

1
Out of stock

11

BOLT, FLANGE

95814-06020-00

1
Out of stock

12

WIRE HARNESS ASSY 1

6FB-8259L-00-00

1
Out of stock

13

STARTER RELAY ASSY

6EY-81940-09-00

1
Out of stock

14

STAY, RELAY

6EY-81953-00-00

1
Out of stock

15

WIRE, PLUS LEAD

6EY-82115-00-00

1
Out of stock

16

WIRE, LEAD

6EY-82117-00-00

1
Out of stock

17

BOLT, HEXAGON W/W DEEP RECESS

97E95-06612-00

1
Out of stock

18

FUSE BOX ASSY

6EX-82170-12-00

1
Out of stock

19

. FUSE (3A)

67F-82151-30-00

1
Out of stock

20

. FUSE (10A)

67F-82151-40-00

1
Out of stock

21

FUSE

5JJ-82151-20-00

—
Out of stock

22

FUSE

5JJ-82151-60-00

—
Out of stock

23

. RELAY ASSY

6EX-8195A-00-00

1
Out of stock

24

. PULLER, FUSE

6EX-2812A-00-00

1
Out of stock

25

DAMPER, IGNITION C

6A0-82317-01-00

1
Out of stock

26

BRACKET

6AA-85542-00-00

1
Out of stock

27

SCREW, ROUND TAPPING

90160-05003-00

1
Out of stock

28

BAND

6EY-82593-01-00

1
Out of stock

29

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

—
Out of stock

30

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

—
Out of stock
