2016 Yamaha V1 (VX1050ER) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2016 Yamaha V1 (VX1050ER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

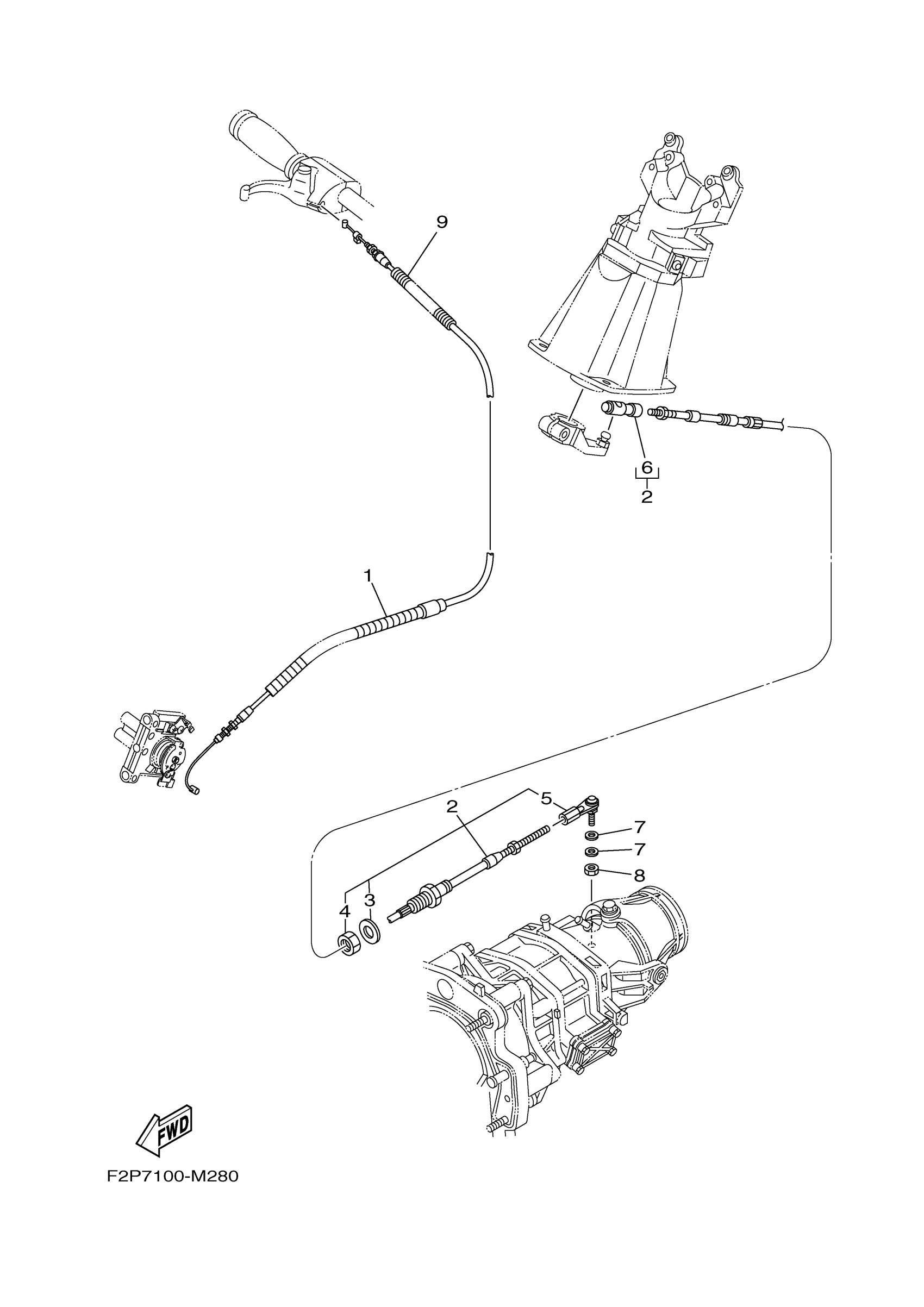

2016 Yamaha V1 (VX1050ER) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

6BU-26311-00-00

1

$100.49

In stock

2

CABLE, STEERING

F2N-61481-02-00

1
Out of stock

3

. PACKING C

F1B-61438-00-00

1

$2.57

In stock

4

NUT

F1B-6151S-01-00

1

$14.49

In stock

5

. STUD, JOINT BALL

F1B-61461-02-00

1

$85.53

In stock

6

. BALL JOINT ASSY

F2N-61460-00-00

1

$48.49

In stock

7

WASHER, PLATE

90201-06906-00

1

$3.23

In stock

8

NUT

9538R-06700-00

1
Out of stock

9

TUBE

90447-06803-00

1

$2.00

In stock
