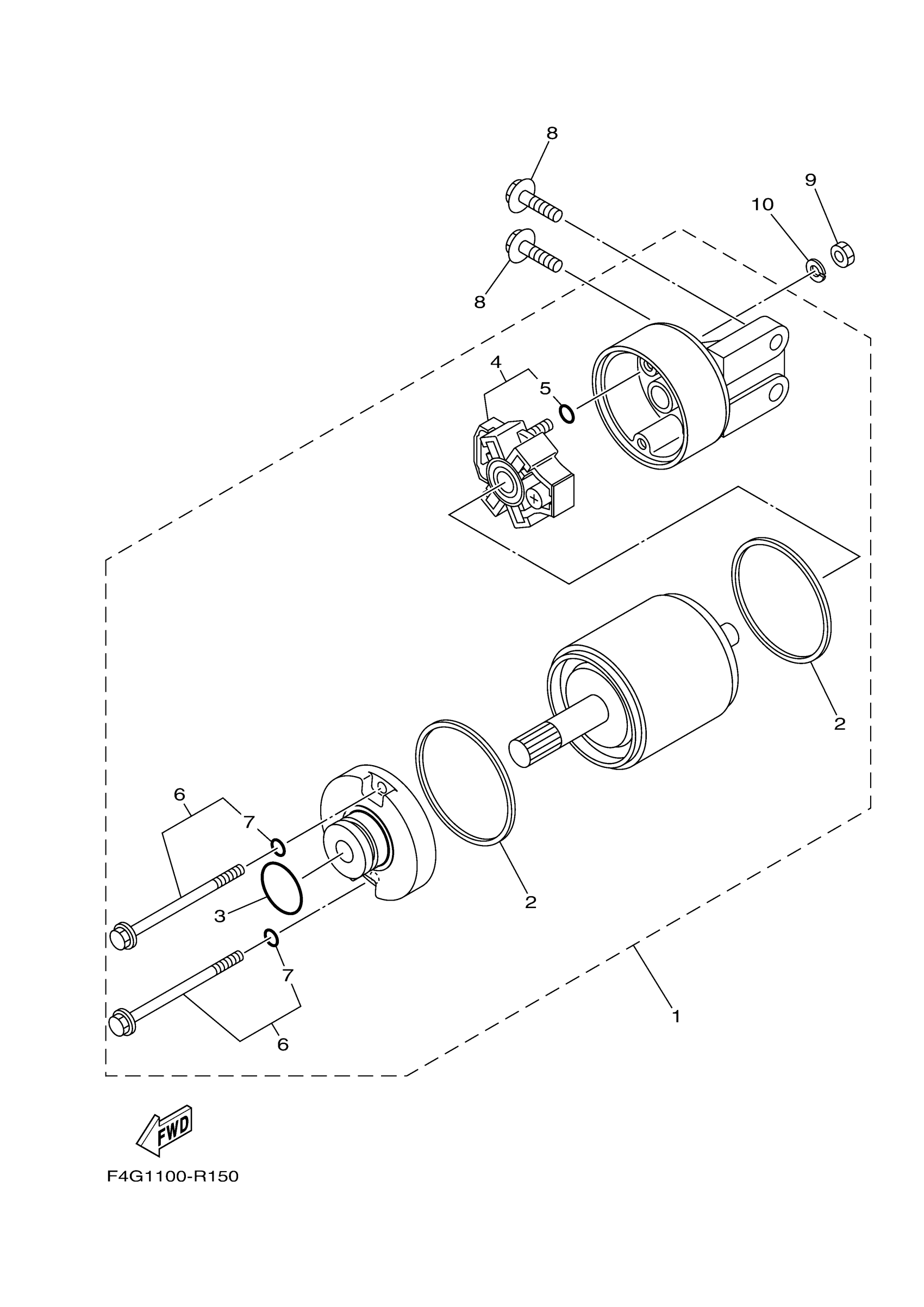

Yamaha VX1050CS (VX) F4GJ 2017 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSY

6EY-81800-00-00

$293.11

2

GASKET

35C-81844-00-00

Unavailable

3

O-RING (437)

93210-24235-00

$5.34

4

. BRUSH HOLDER ASSY

6EY-81840-00-00

$34.48

5

.. O-RING

3TB-81847-00-00

$2.27

6

. BOLT

6EY-81826-00-00

$9.08

7

.. O-RING

3TB-81847-00-00

$2.27

8

BOLT, WITH WASHER (62X)

97513-08530-00

$2.64

9

NUT(650)

95380-06700-00

$5.75

10

WASHER, SPRING

92995-06100-00

$2.95
