2017 Yamaha VX (VX1050CS) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2017 Yamaha VX (VX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

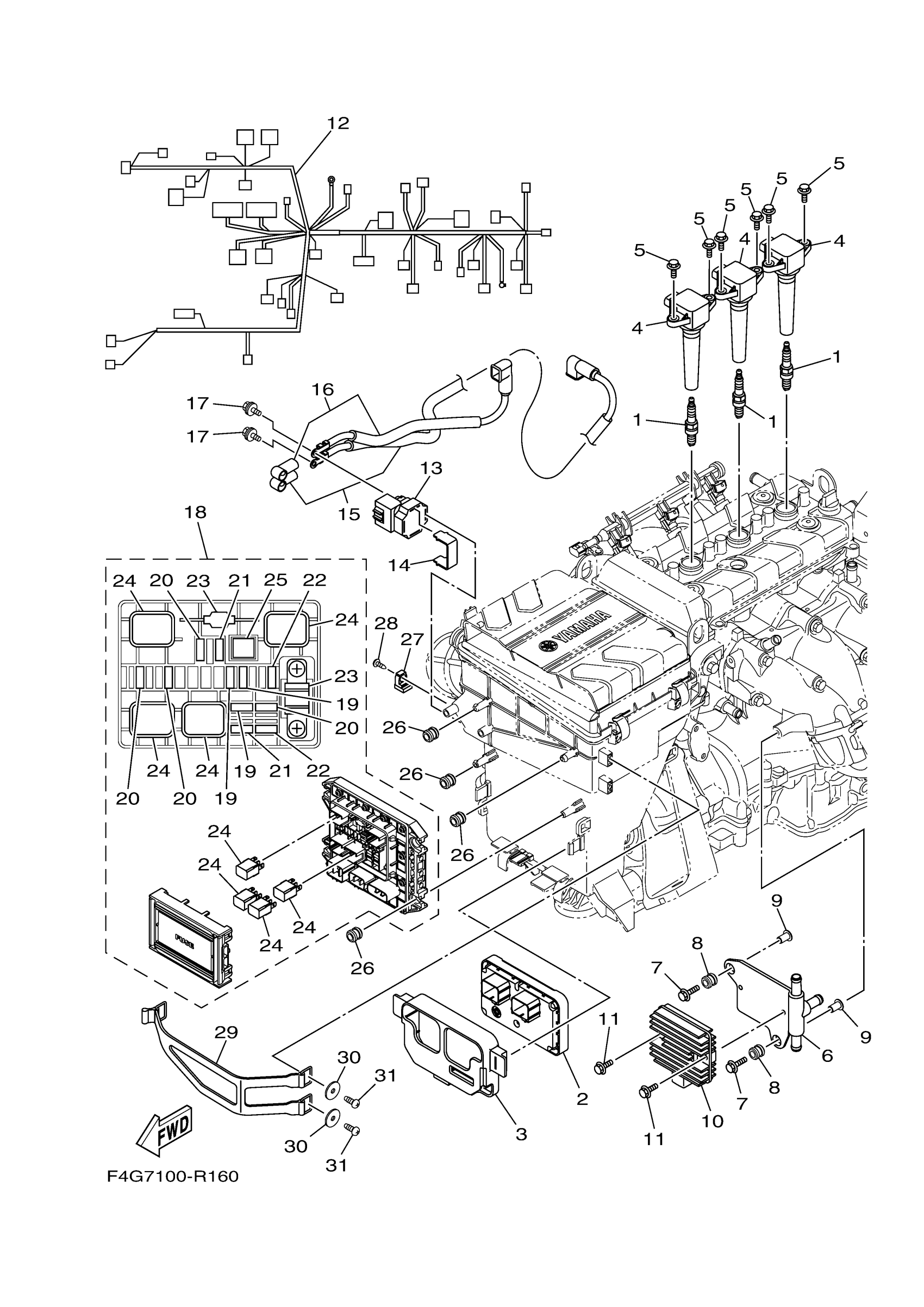

2017 Yamaha VX (VX1050CS) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

1

$11.29

In stock

2

ENGINE CONTROL UNIT ASSY

6EY-8591A-01-00

1

$1,663.49

In stock

3

GROMMET, ECU

6EY-8591S-00-00

1

$19.79

In stock

4

IGNITION COIL ASSY

6EX-82310-02-00

1

$185.32

In stock

5

BOLT, FLANGE(JL8)

95880-06016-00

1

$3.72

In stock

6

PLATE, RECTIFIER FITTING

6EY-81975-00-00

1

$57.99

In stock

7

BOLT, WITH WASHER

90119-06311-00

1

$1.67

In stock

8

DAMPER, IGNITION C

6A0-82317-01-00

1

$6.31

In stock

9

. COLLAR

90387-06119-00

1

$4.13

In stock

10

RECTIFIER & REGULA

6D3-81960-01-00

1

$145.47

In stock

11

BOLT, FLANGE

95814-06020-00

1

$6.68

In stock

12

WIRE HARNESS ASSY 1

6EY-8259L-00-00

1

$854.99

In stock

13

STARTER RELAY ASSY

6EY-81940-09-00

1

$64.14

In stock

14

STAY, RELAY

6EY-81953-00-00

1

$4.15

In stock

15

WIRE, PLUS LEAD

6EY-82115-00-00

1

$57.01

In stock

16

WIRE, LEAD

6EY-82117-00-00

1

$35.63

In stock

17

1

$1.33

In stock

18

FUSE BOX ASSY

6EX-82170-02-00

1

$195.31

In stock

19

. FUSE (3A)

67F-82151-30-00

1

$4.89

In stock

20

. FUSE (10A)

67F-82151-40-00

1

$6.67

In stock

21

FUSE

5JJ-82151-20-00

—

$6.42

In stock

22

FUSE

5JJ-82151-60-00

—

$6.42

In stock

23

. FUSE (50A)

6EX-82151-00-00

1

$3.16

In stock

24

. RELAY ASSY

6EX-8195A-00-00

1

$16.62

In stock

25

. PULLER, FUSE

6EX-2812A-00-00

1

$1.38

In stock

26

DAMPER, IGNITION C

6A0-82317-01-00

1

$6.31

In stock

27

BRACKET

6AA-85542-00-00

1

$2.31

In stock

28

SCREW, ROUND TAPPING

90160-05003-00

1

$5.53

In stock

29

BAND

6EY-82593-01-00

1

$23.99

In stock

30

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

—
Out of stock

31

—

$2.22

In stock
