2016 Kawasaki Vulcan® S Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

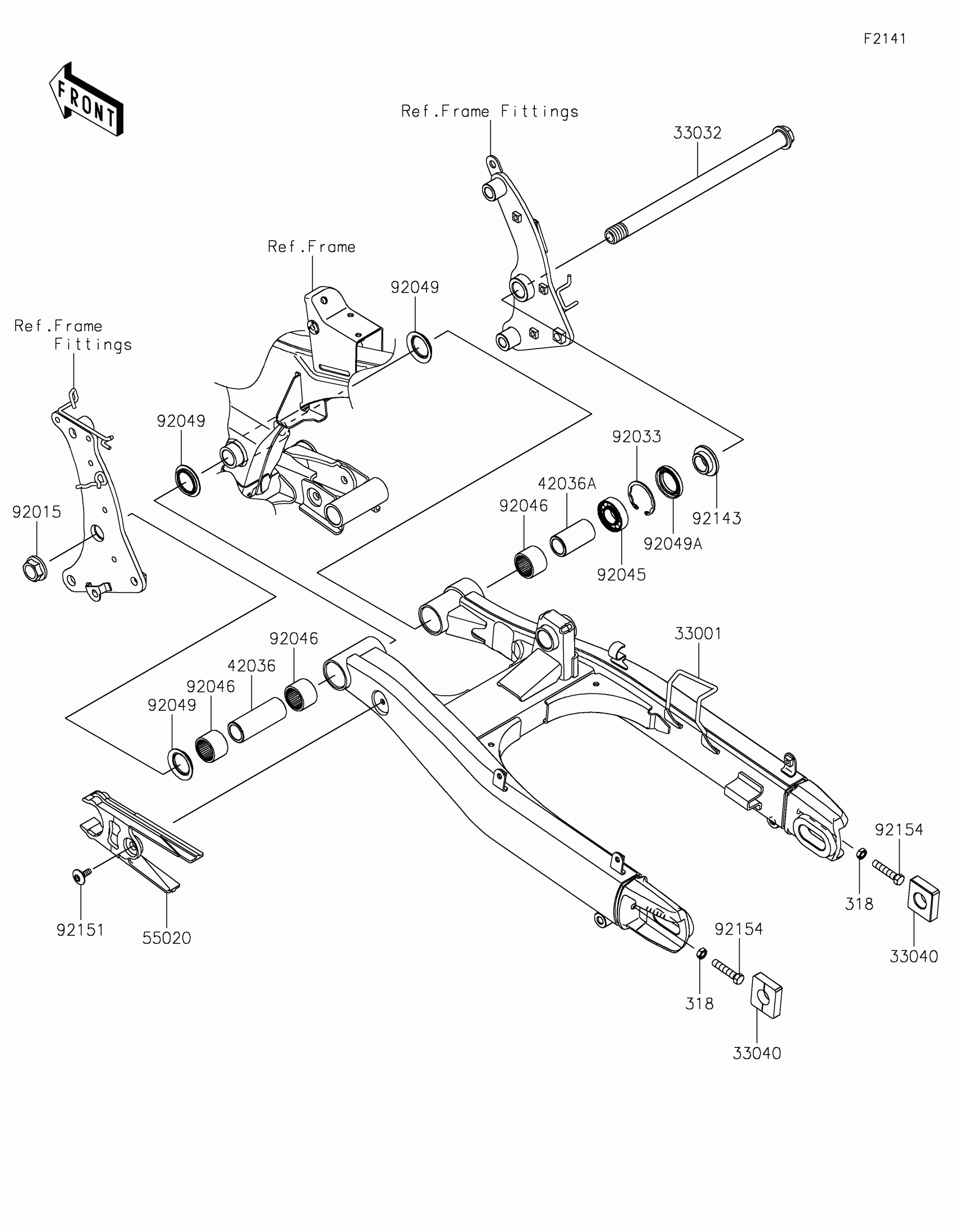

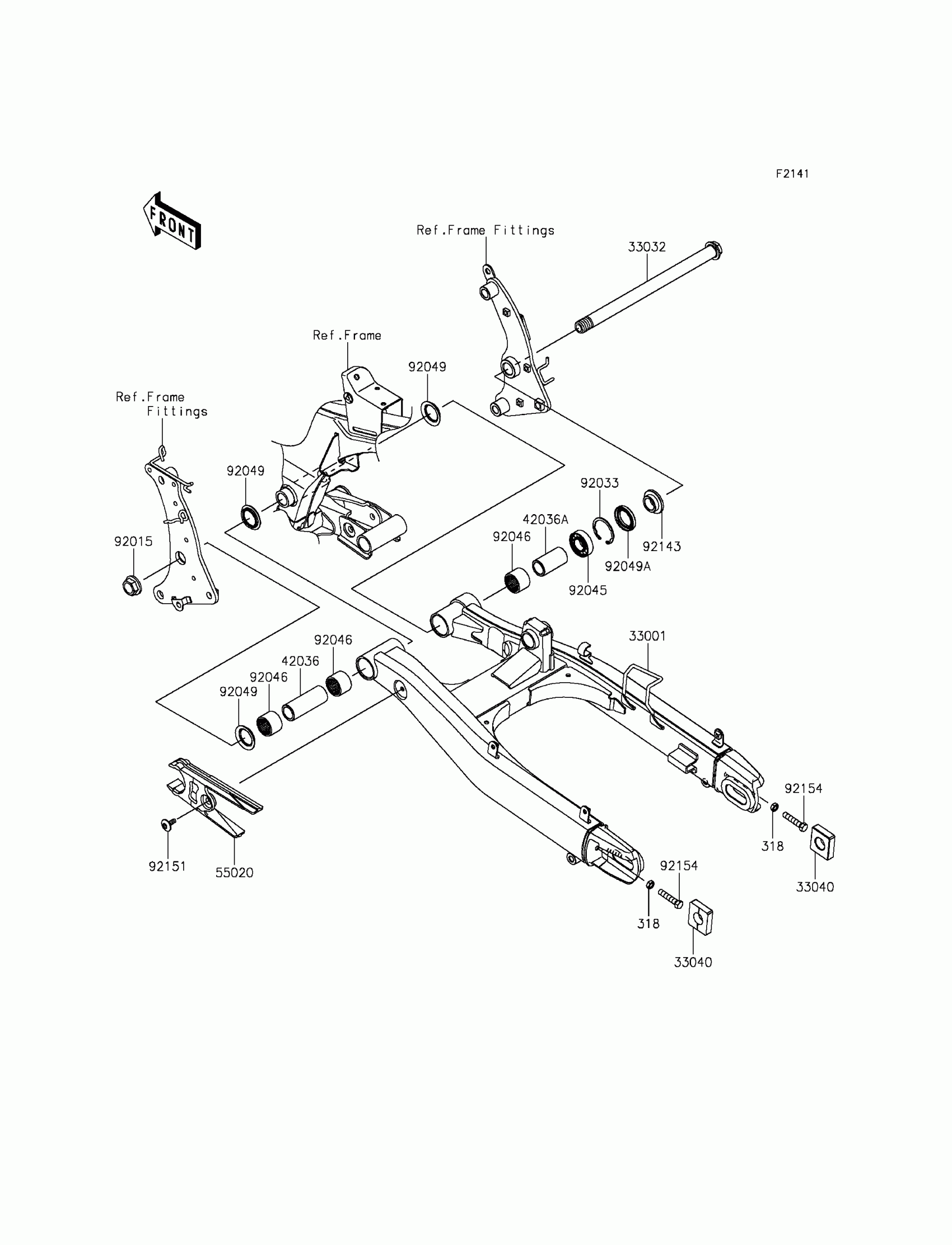

2016 Kawasaki Vulcan® S Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

318

NUT-HEX-SMALL,8MM

318BA0800

1

$1.20

In stock

33001

ARM-COMP-SWING,F.S.BLACK

33001-0625-18R

1

$527.68

In stock

33032

1

$102.29

In stock

33040

ADJUSTER-CHAIN

33040-1109

1

$18.36

In stock

42036

1

$38.19

In stock

42036A

1

$30.70

In stock

55020

GUARD,CHAIN

55020-0985

1

$43.44

In stock

92015

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$11.39

In stock

92046

BEARING-NEEDLE,BM2824

92046-1202

1
Out of stock

92049

SEAL-OIL

92049-0132

1
Out of stock

92049A

SEAL-OIL

92049-0138

1
Out of stock

92143

1

$18.34

In stock

92151

BOLT,SOCKET,6X18

92151-1149

1

$6.11

In stock

92154

BOLT,8X40

92154-0837

1

$3.20

In stock
