2025 Kawasaki Vulcan S Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2025 Kawasaki Vulcan S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

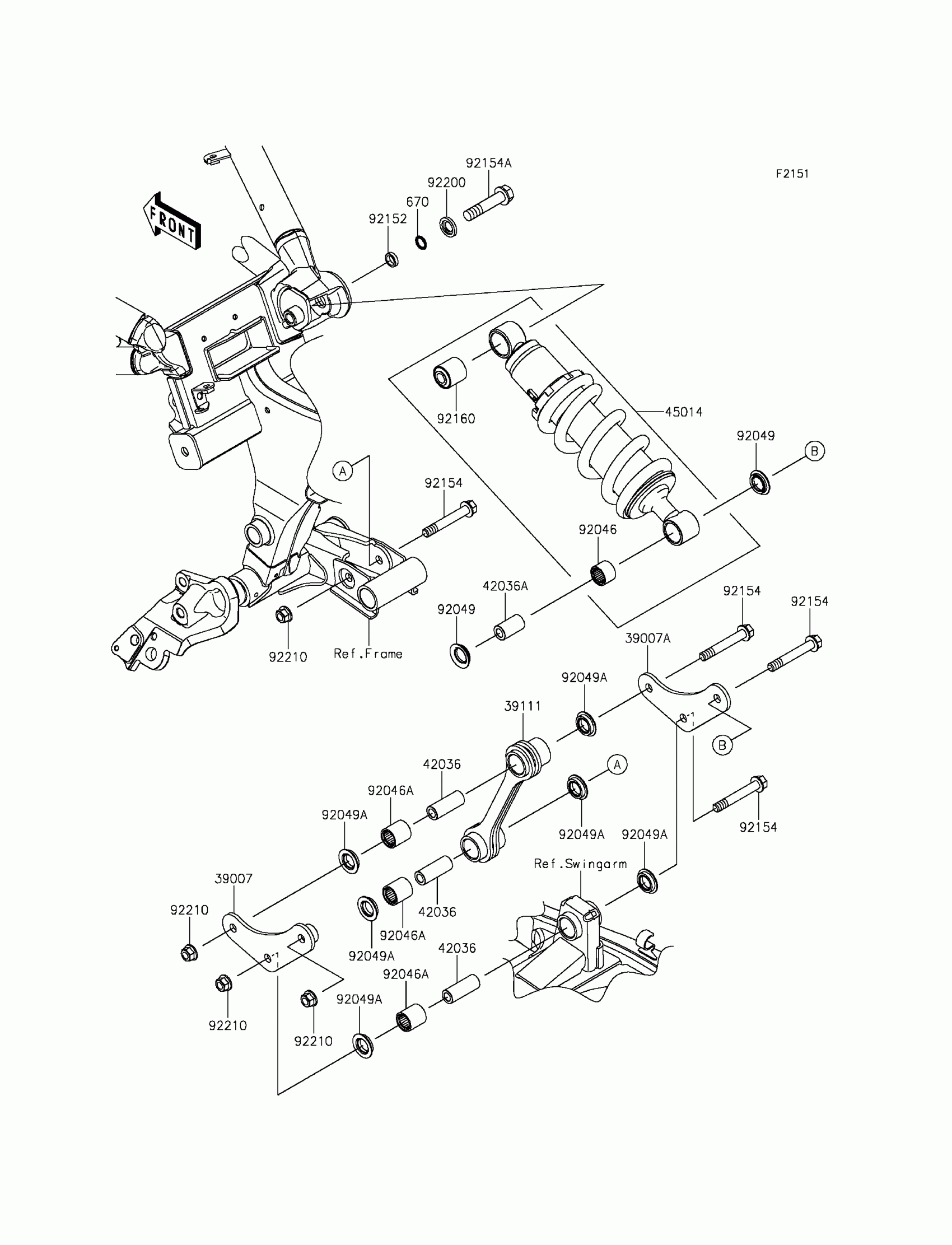

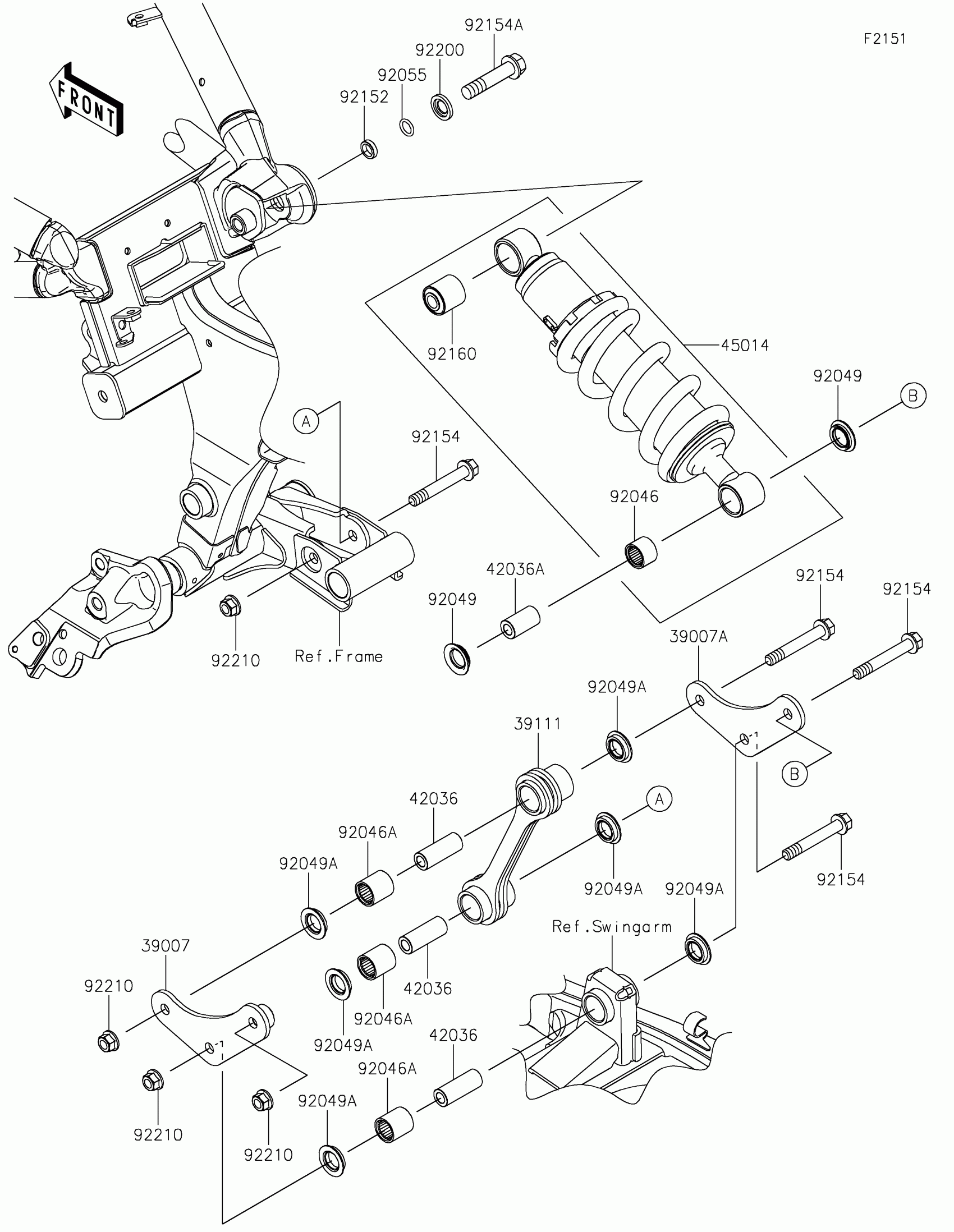

2025 Kawasaki Vulcan S Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,LINK,LH,F.BLACK

39007-0385-21

1

$65.43

In stock

39007A

ARM-SUSP,LINK,RH,F.BLACK

39007-0386-21

1

$65.43

In stock

39111

ROD-TIE,SUSPENSION

39111-0339

1

$160.02

In stock

42036

SLEEVE,10.1X17X44.5

42036-0718

1
Out of stock

42036A

SLEEVE,10.1X18X32

42036-1344

1
Out of stock

45014

SHOCKABSORBER,BLACK

45014-0472-10

1
Out of stock

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL

92049-0133

1
Out of stock

92049A

SEAL-OIL,MHA17245.7F

92049-0850

1
Out of stock

92055

RING-O,11.8X2.4

92055-0843

1
Out of stock

92152

COLLAR,12.1X16.8X4.4

92152-0811

1
Out of stock

92154

BOLT,FLANGED,10X67

92154-0264

1
Out of stock

92154A

BOLT,FLANGED,12X55

92154-0836

1
Out of stock

92160

DAMPER,SHOCKABSORBER

92160-1161

1
Out of stock

92200

WASHER,12.5X24X3.2

92200-0519

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
