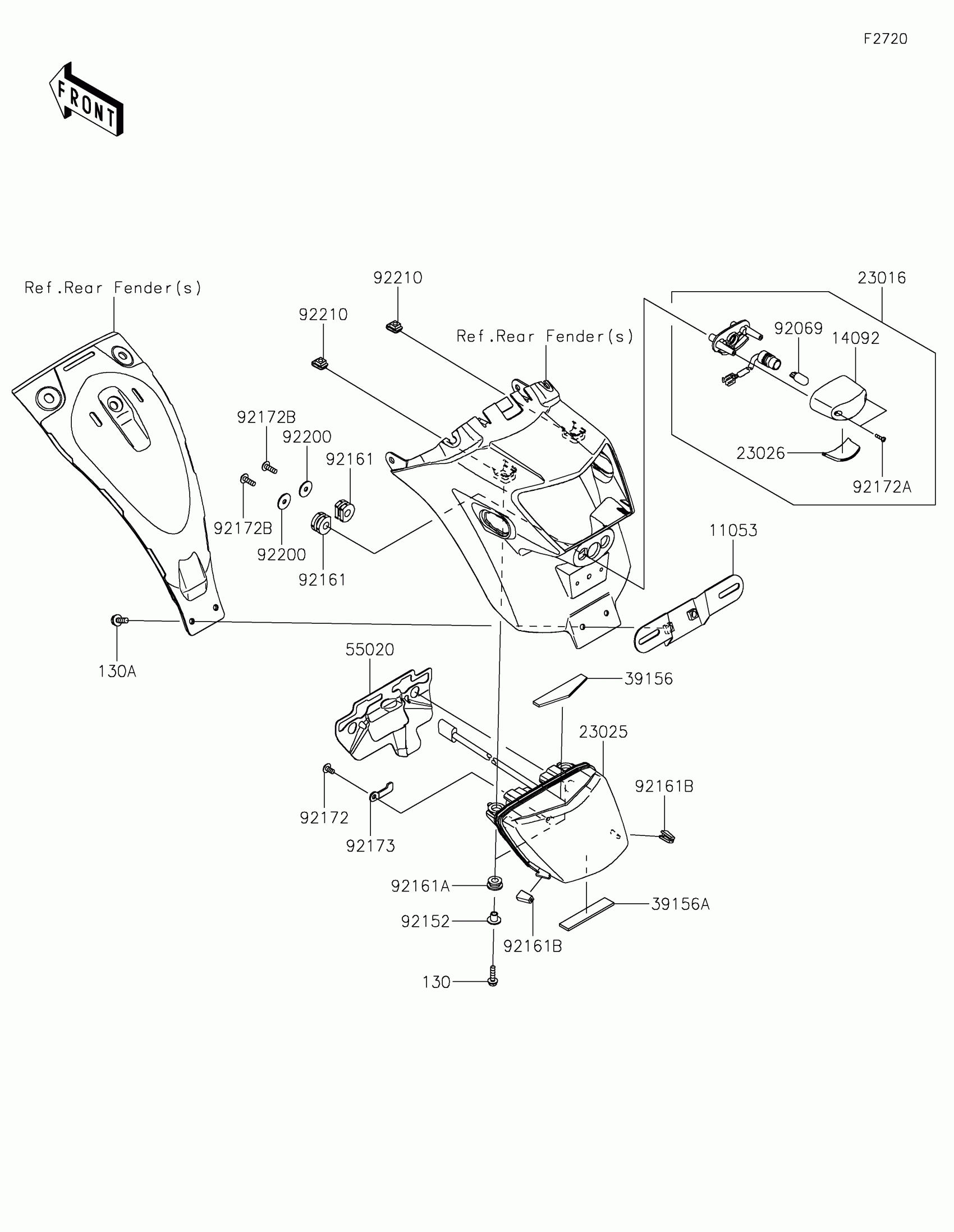

Kawasaki Vulcan® S CAFÉ Taillight(s) Diagram

Description

Price

11053

BRACKET,LICENSE

11053-0400

$12.55

14092

COVER,LICENSE LAMP

14092-0001

$20.17

23016

LAMP-ASSY,LICENCE

23016-0658

$73.13

23025

LAMP-TAIL,LED

23025-0342

$263.57

23026

LENS,LICENCE LAMP

23026-0035

$29.34

39156

PAD,20X80X3

39156-1869

$1.80

39156A

PAD,15X76X3

39156-1928

$0.98

55020

GUARD,TAIL LAMP

55020-1882

$18.49

92069

BULB,12V 5W

92069-1016

$4.88

92152

COLLAR

92152-1592

$2.11

92161

DAMPER

92161-0776

$4.18

92161A

DAMPER,8X18X8.1

92161-1369

$1.44

92161B

DAMPER,TAIL LAMP

92161-1694

$1.47

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92172A

SCREW,TAPPING,2.9X13

92172-0343

$1.32

92172B

SCREW,TAPPING,5X16

92172-0427

$1.81

92173

CLAMP

92173-1337

$1.10

92200

WASHER,5.5X20X1.2

92200-0284

$1.57

92210

NUT,PLATE,5MM

92210-0935

$1.44

130

BOLT-FLANGED,5X20

130BA0520

$0.79

130A

BOLT-FLANGED,6X16

130BA0616

$0.97
