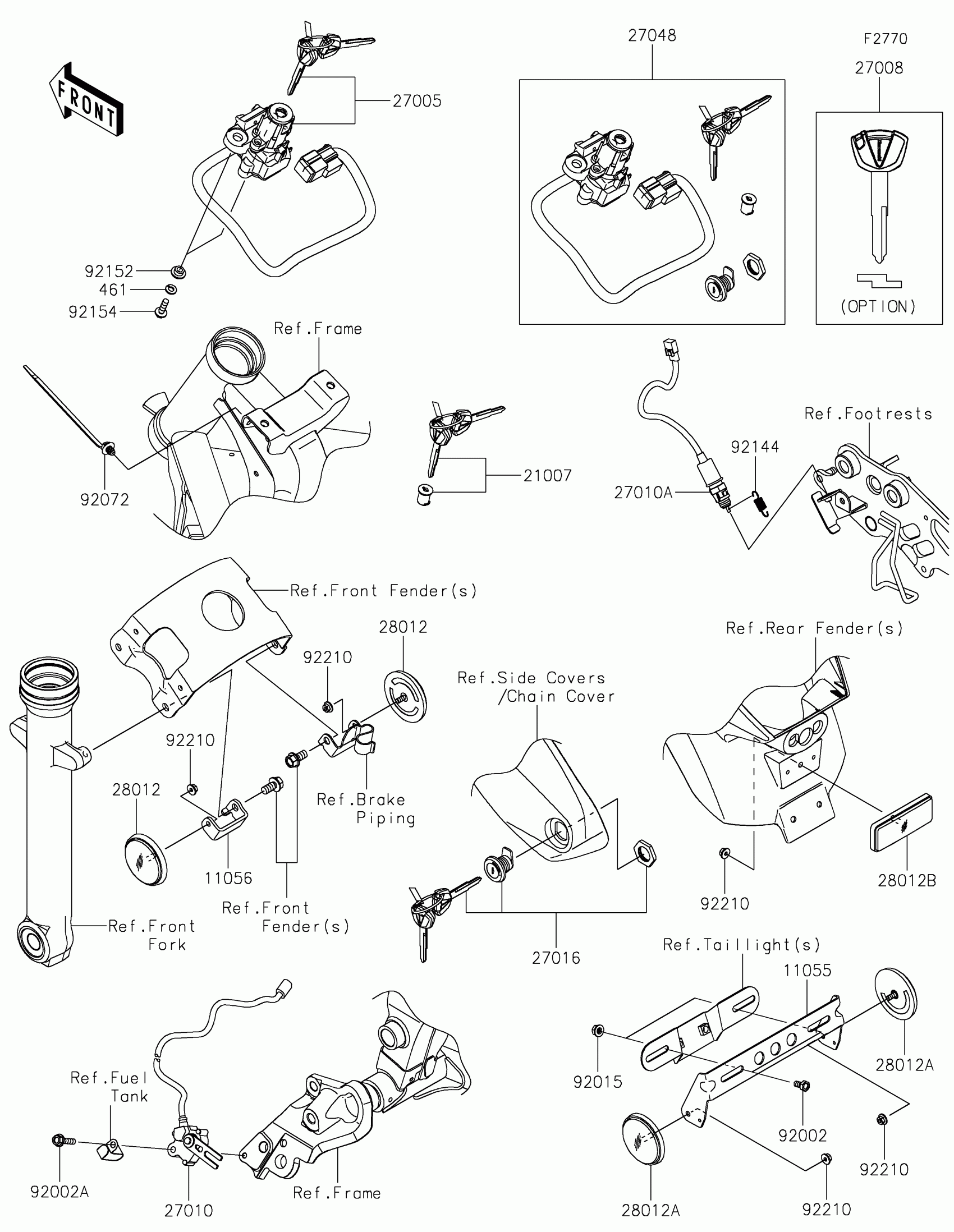

Kawasaki Vulcan® S CAFÉ Ignition Switch/Locks/Reflectors Diagram

Description

Price

11055

BRACKET,REFLECTOR

11055-1092

$33.99

11056

BRACKET,REFLECTOR,LH

11056-7698

$2.75

21007

ROTOR,LOCK,TANK CAP

21007-5077

$126.11

27005

SWITCH-ASSY-IGNITION

27005-0595

$178.58

27008

KEY-LOCK,BLANK

27008-0596

$17.69

27010

SWITCH,SIDE STAND

27010-0722

$118.06

27010A

SWITCH,RR BRAKE

27010-0760

Unavailable

27016

LOCK-ASSY

27016-5387

$92.11

27048

SWITCH-ASSY

27048-5053

$410.39

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-0002

$19.59

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

92002

BOLT,6X12

92002-1132

$1.14

92002A

BOLT,FLANGED,6X25

92002-1582

$4.17

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$4.14

92152

COLLAR,6.15X10.15X6

92152-1535

$2.84

92154

BOLT,FLANGED,6X20

92154-0107

$2.10

92210

NUT,FLANGED,5MM

92210-0007

$1.90

461

WASHER-SPRING,6MM

461DA0600

$0.66
