2023 Kawasaki Vulcan® S CafÉ Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

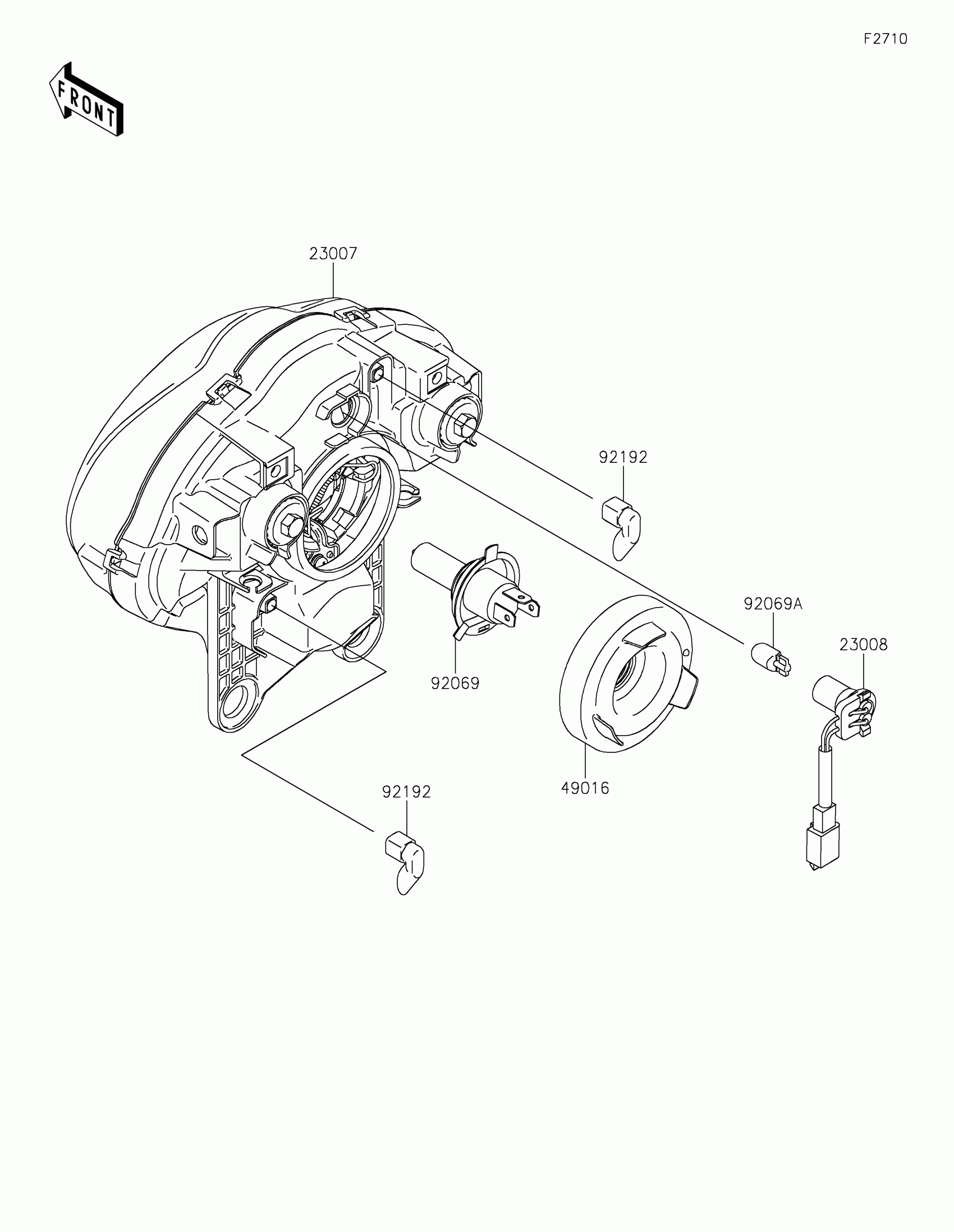

2023 Kawasaki Vulcan® S CafÉ Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007

LENS-COMP

23007-0191

1

$282.04

In stock

23008

SOCKET-ASSY

23008-0158

1

$112.50

In stock

49016

COVER-SEAL

49016-0627

1

$13.63

In stock

92069

BULB,12V 60/55W,H4

92069-0050

1

$14.37

In stock

92069A

BULB,12V 5W

92069-1016

1

$5.16

In stock

92192

TUBE,BREATHER

92192-1528

1
Out of stock
