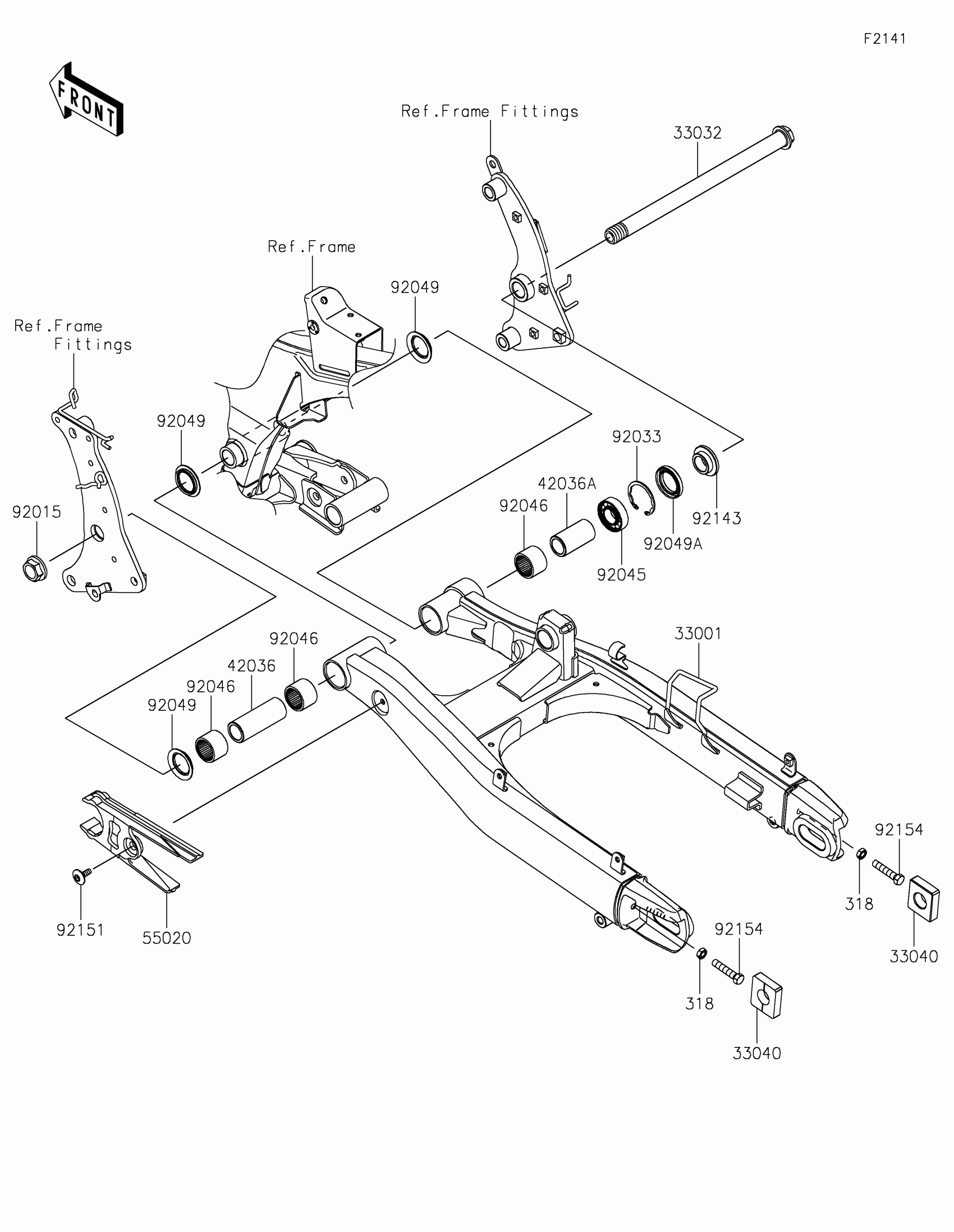

Kawasaki Vulcan® S CAFÉ Swingarm Diagram

Description

Price

33001

ARM-COMP-SWING,F.S.BLACK

33001-0625-18R

$527.68

33032

SHAFT-SWING ARM,20X300

33032-0042

$102.29

33040

ADJUSTER-CHAIN

33040-1109

$18.36

42036

SLEEVE,LH,20.1X28X75.8

42036-0706

$38.19

42036A

SLEEVE,RH,20.1X28X52.3

42036-0707

$30.70

55020

GUARD,CHAIN

55020-0985

$43.44

92015

NUT,FLANGED,20MM

92015-1724

$11.31

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004UL11

92045-0948

$13.66

92046

BEARING-NEEDLE,BM2824

92046-1202

$20.35

92049

SEAL-OIL

92049-0132

$7.15

92049A

SEAL-OIL

92049-0138

$9.10

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$18.34

92151

BOLT,SOCKET,6X18

92151-1149

$5.86

92154

BOLT,8X40

92154-0837

$3.20

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04
