2023 Kawasaki Vulcan® S CafÉ Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

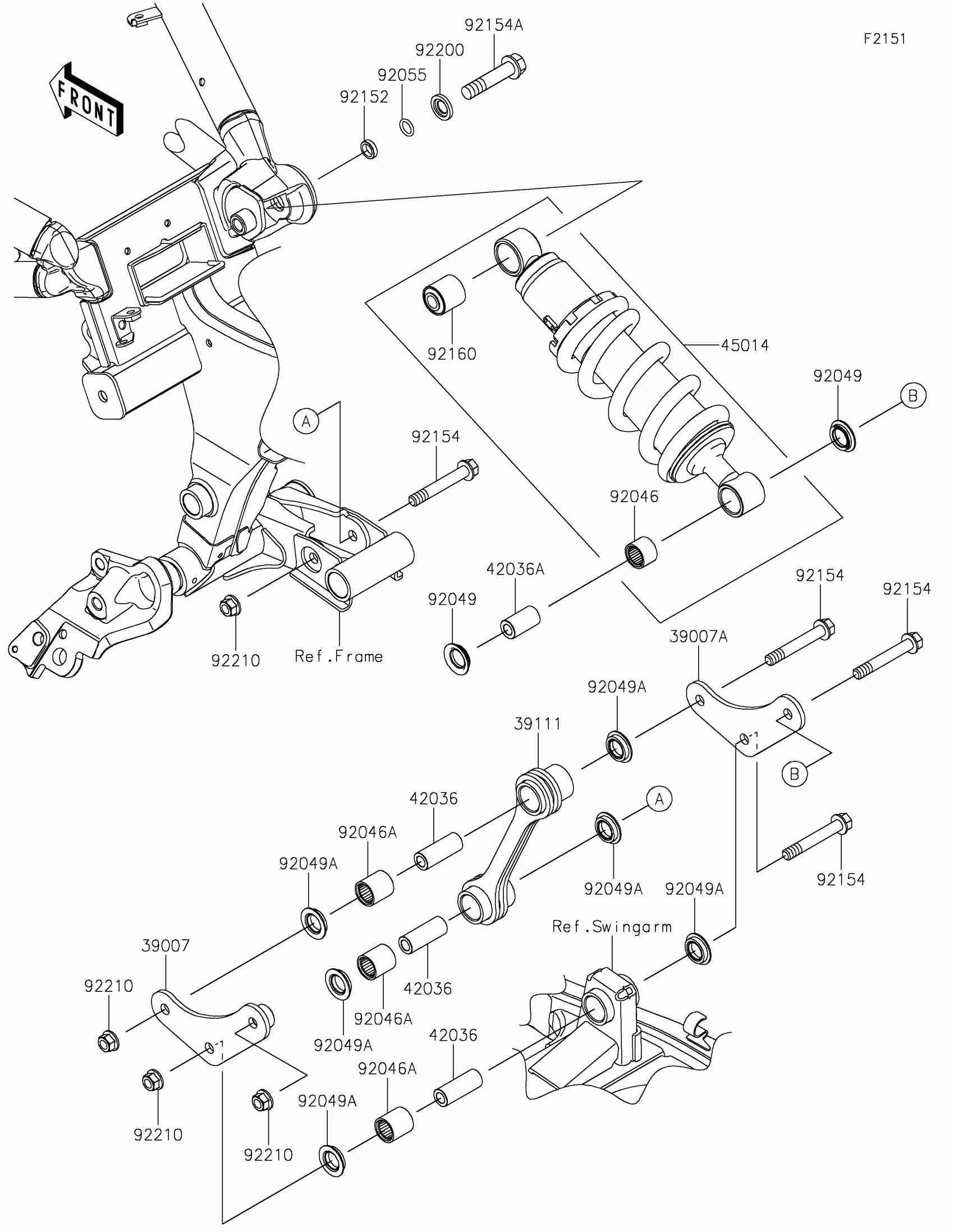

2023 Kawasaki Vulcan® S CafÉ Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,LINK,LH,F.BLACK

39007-0385-21

1
Out of stock

39007A

ARM-SUSP,LINK,RH,F.BLACK

39007-0386-21

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-0339

1
Out of stock

42036

SLEEVE,10.1X17X44.5

42036-0718

1
Out of stock

42036A

SLEEVE,10.1X18X32

42036-1344

1
Out of stock

45014

SHOCKABSORBER,BLACK

45014-0472-10

1
Out of stock

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL

92049-0133

1
Out of stock

92049A

SEAL-OIL,MHA17245.7F

92049-0850

1
Out of stock

92055

RING-O,11.8X2.4

92055-0843

1
Out of stock

92152

COLLAR,12.1X16.8X4.4

92152-0811

1
Out of stock

92154

BOLT,FLANGED,10X67

92154-0264

1
Out of stock

92154A

BOLT,FLANGED,12X55

92154-0836

1
Out of stock

92160

DAMPER,SHOCKABSORBER

92160-1161

1
Out of stock

92200

WASHER,12.5X24X3.2

92200-0519

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
