2023 Kawasaki Vulcan® S CafÉ Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

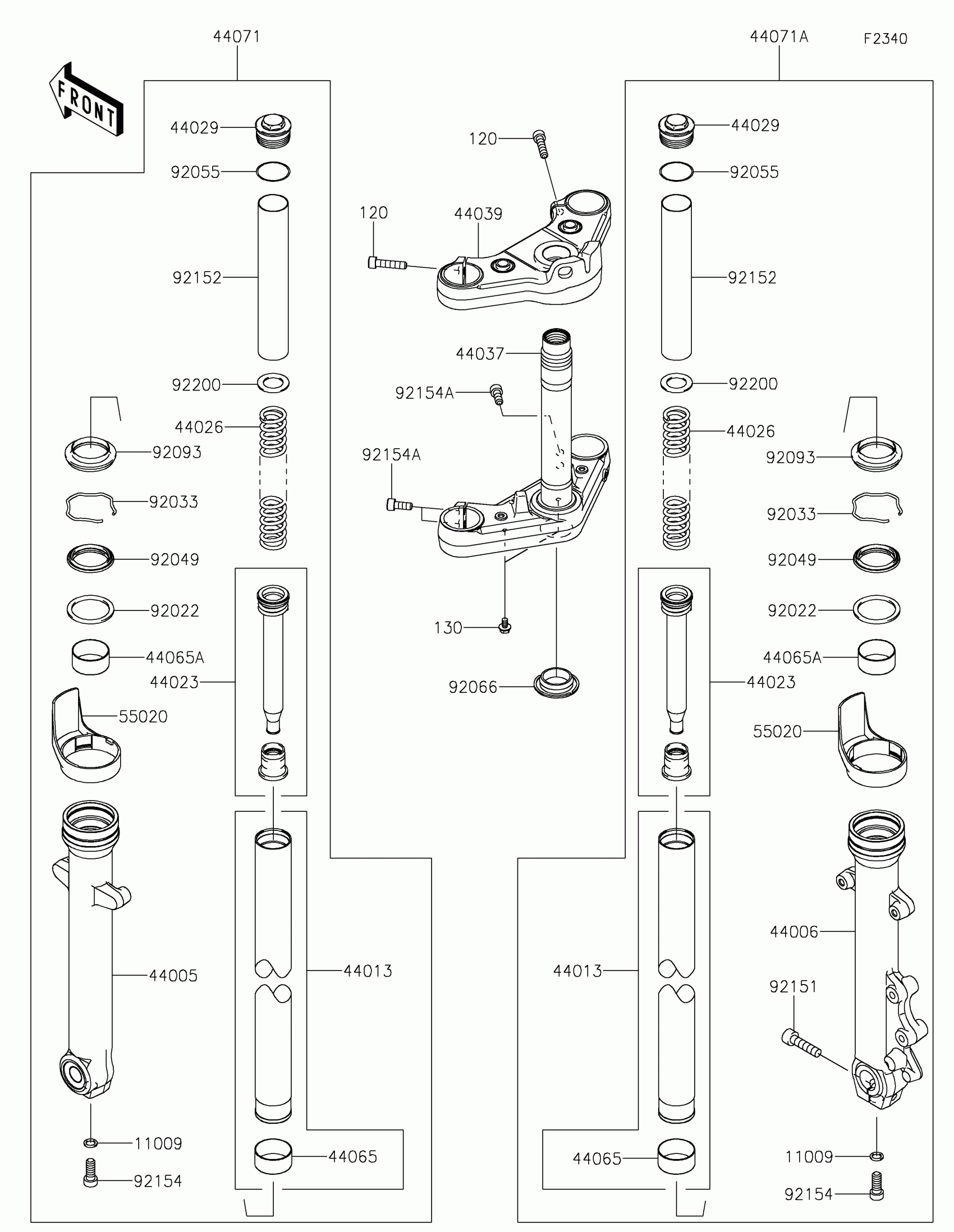

2023 Kawasaki Vulcan® S CafÉ Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

44005

1

$318.75

In stock

44006

1

$318.75

In stock

44013

PIPE-FORK INNER

44013-0270

1

$469.40

In stock

44023

CYLINDER-SET-FORK

44023-0133

1

$114.61

In stock

44026

SPRING-FRONT FORK

44026-0196

1

$54.77

In stock

44029

SEAT-FORK SPRING

44029-0005

1

$45.48

In stock

44037

1

$362.29

In stock

44039

1

$385.21

In stock

44065

1

$26.78

In stock

44065A

1

$26.35

In stock

44071

1

$671.17

In stock

44071A

1

$671.17

In stock

55020

GUARD,FORK

55020-0872

1

$9.25

In stock

92022

1

$6.82

In stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL

92049-0073

1
Out of stock

92055

RING-O

92055-1321

1

$1.19

In stock

92066

PLUG

92066-0817

1

$10.25

In stock

92093

1

$22.03

In stock

92151

BOLT,SOCKET,10X40

92151-1357

1

$3.59

In stock

92152

COLLAR

92152-2153

1
Out of stock

92154

1

$2.92

In stock

92154A

BOLT,SOCKET,8X20

92154-1811

1

$3.29

In stock

92200

WASHER

92200-1467

1
Out of stock

120

BOLT-SOCKET,8X35

120CB0835

1

$4.24

In stock

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock
