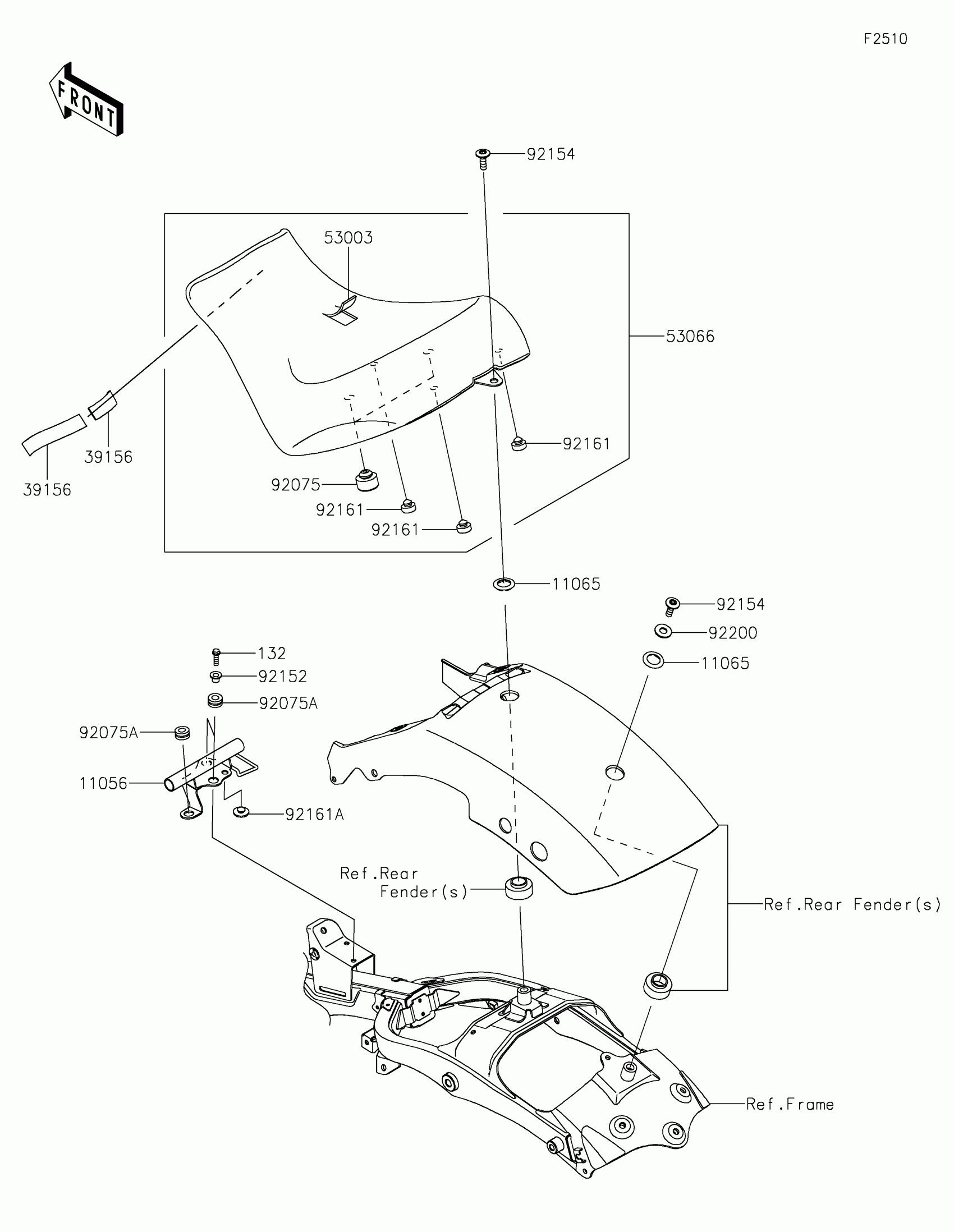

Kawasaki Vulcan® S CAFÉ Seat Diagram

Description

Price

11056

BRACKET,SEAT

11056-4009

$23.07

11065

CAP

11065-0872

$0.95

39156

PAD,20X100X2

39156-1934

$2.20

53003

LEATHER,FR SEAT,BLACK

53003-0567-MA

$178.85

53066

SEAT-ASSY,FR,BLACK

53066-0734-MA

$235.12

92075

DAMPER

92075-015

$3.81

92075A

DAMPER

92075-1880

$1.24

92152

COLLAR,6.8X10X11.6

92152-0977

$2.11

92154

BOLT,SOCKET,8X25

92154-1805

$4.18

92161

DAMPER,10X20X8

92161-0855

$3.25

92161A

DAMPER,8X22X10

92161-1685

$0.74

92200

WASHER,10.5X24X2

92200-0987

$1.77

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77
