2023 Kawasaki Vulcan® S CafÉ Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

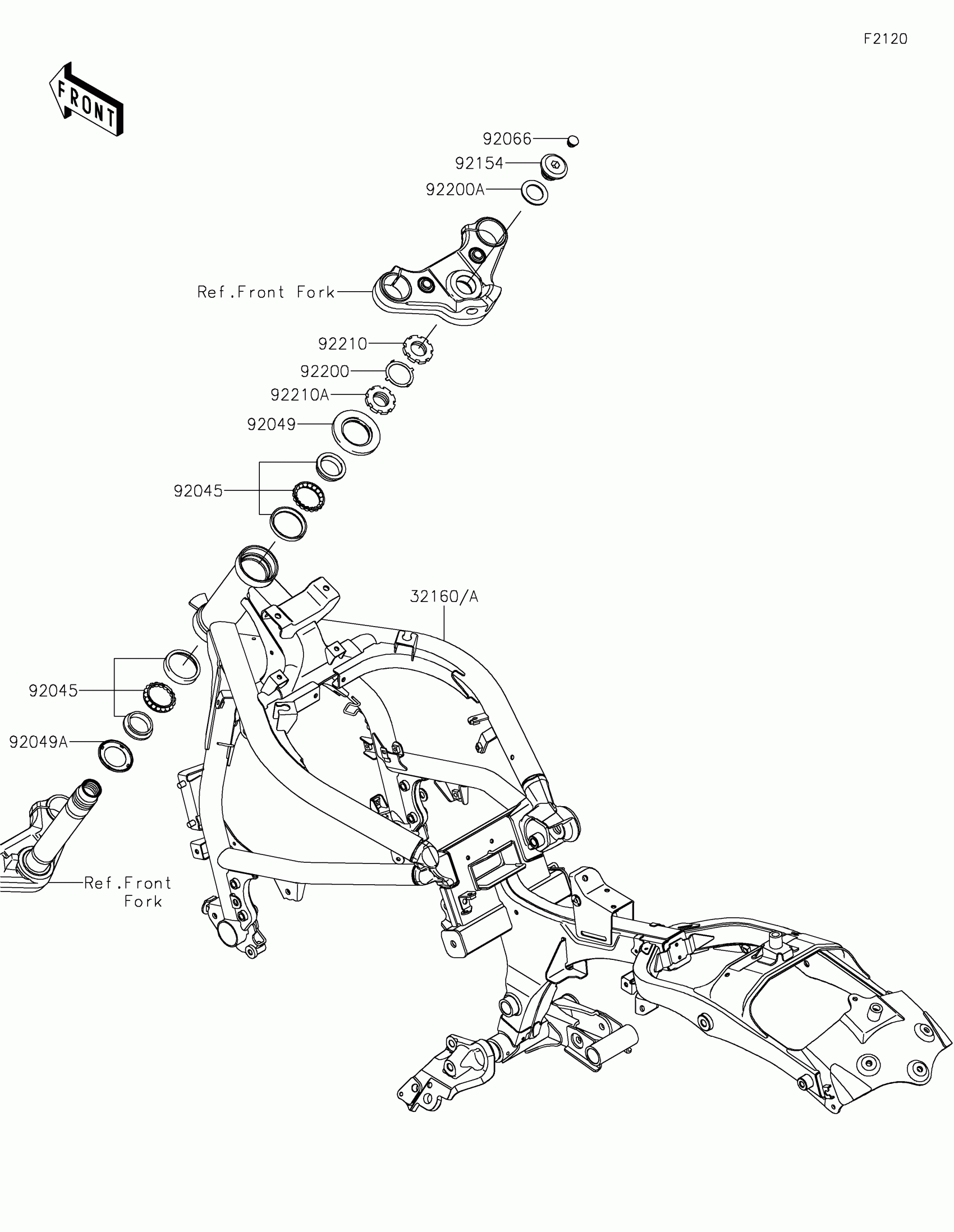

2023 Kawasaki Vulcan® S CafÉ Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160A

FRAME-COMP,F.S.BLACK

32160-0746-18R

1

$2,054.05

In stock

92045

1

$41.48

In stock

92049

SEAL-OIL

92049-0131

1
Out of stock

92049A

SEAL-OIL

92049-0137

1
Out of stock

92066

PLUG

92066-0071

1

$2.68

In stock

92154

BOLT,26MM

92154-3818

1

$29.32

In stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,27X42X2.3

92200-0753

1
Out of stock

92210

NUT,STEERING STEM,35MM

92210-0534

1
Out of stock

92210A

NUT,STEERING STEM,35MM

92210-0535

1
Out of stock
