2023 Kawasaki Vulcan® S CafÉ Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

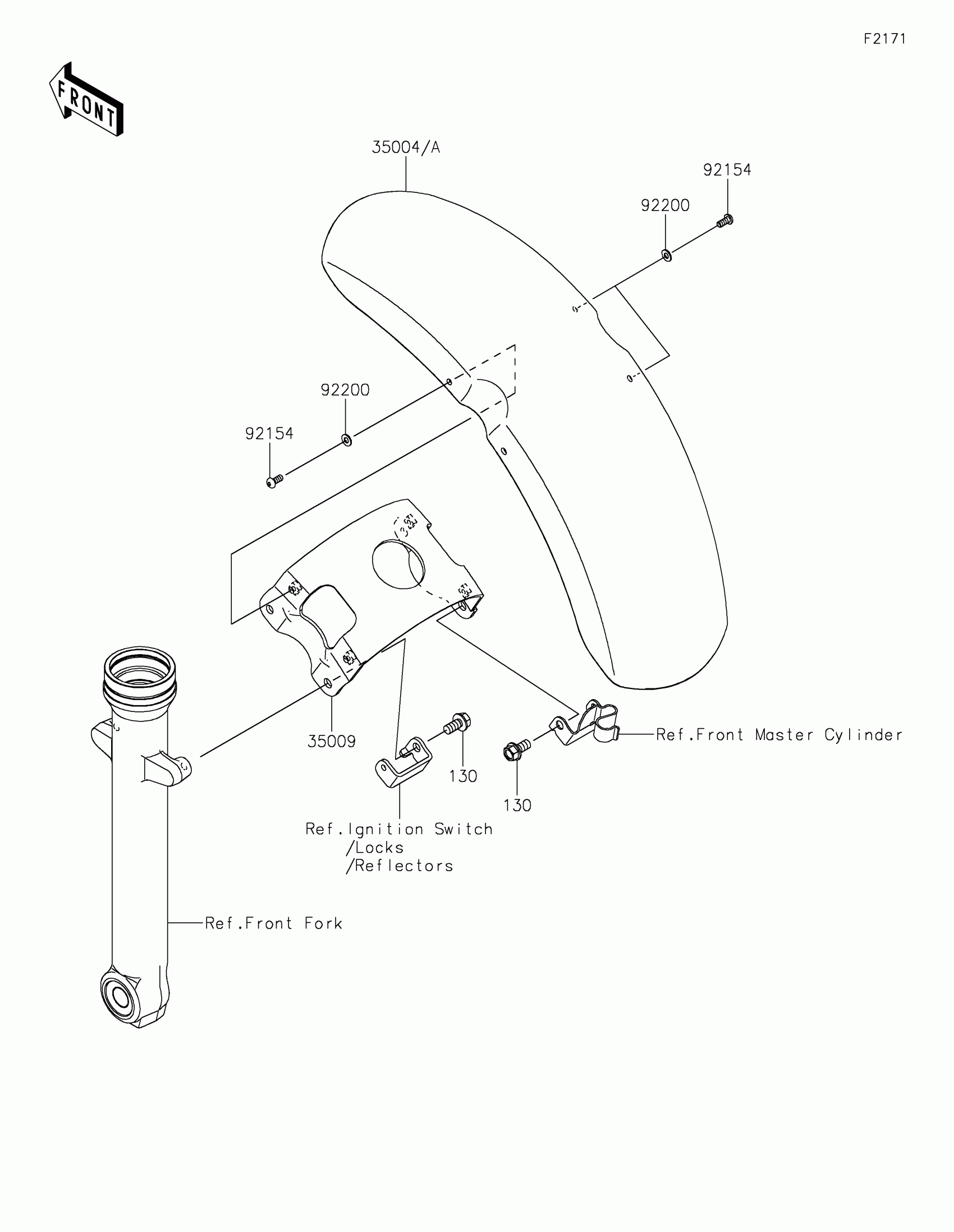

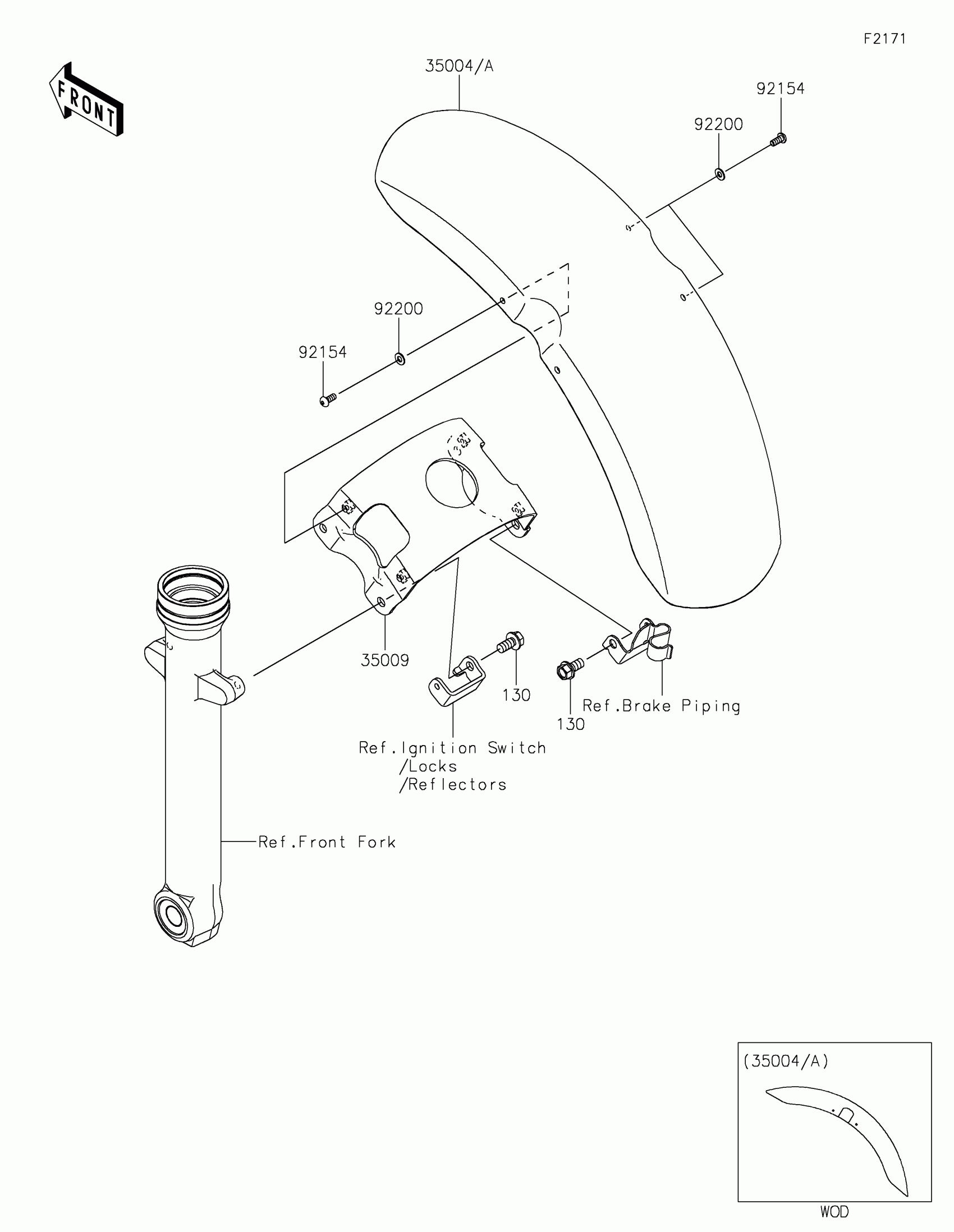

2023 Kawasaki Vulcan® S CafÉ Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,P.S.GRAY

35004-0341-36S

1
Out of stock

35004A

FENDER-FRONT,EBONY

35004-0341-H8

1
Out of stock

35009

BRACE

35009-0039

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-1471

1
Out of stock

92200

WASHER,5.3X11X1

92200-0973

1
Out of stock

130

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock
