2023 Kawasaki Vulcan® S CafÉ Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

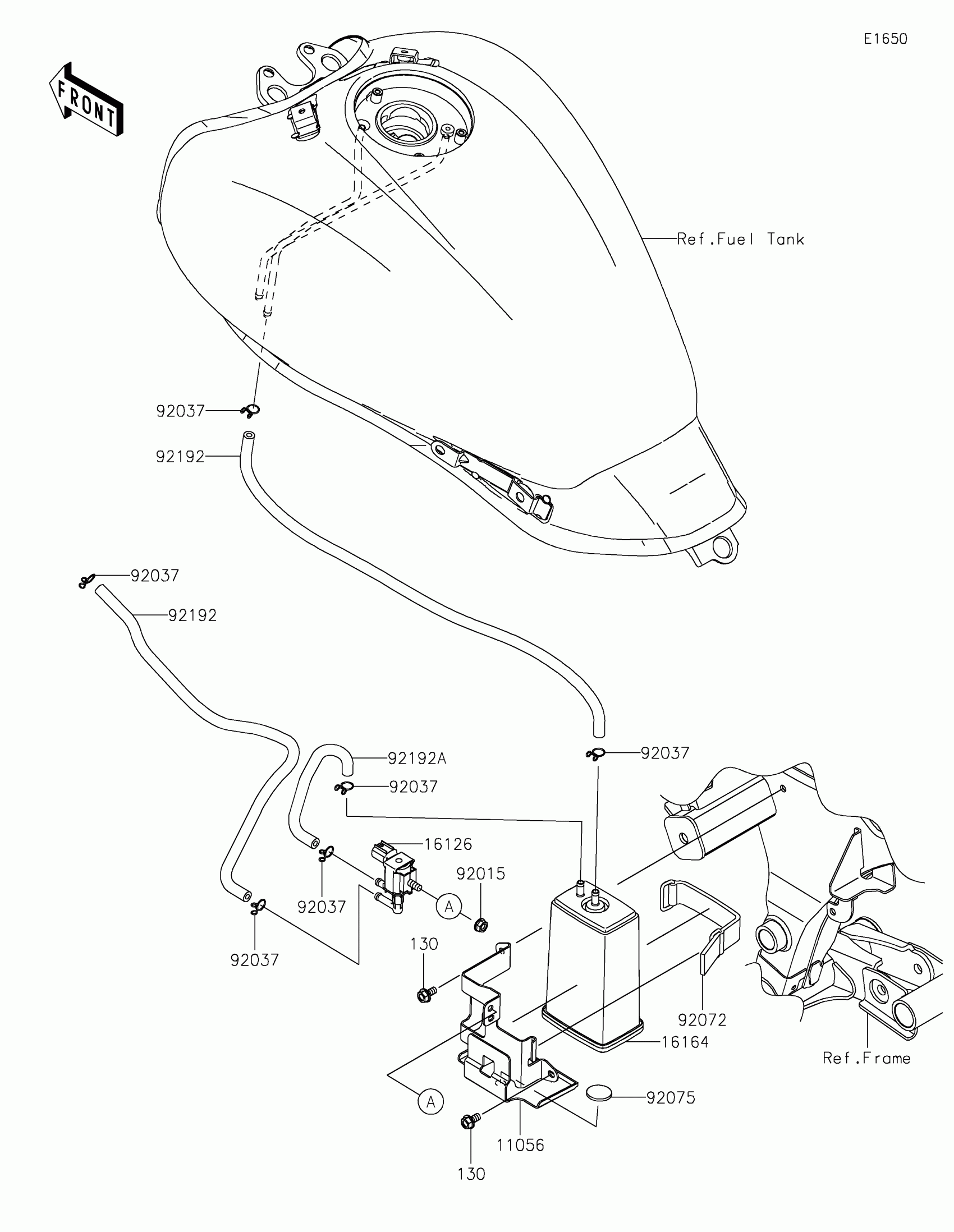

2023 Kawasaki Vulcan® S CafÉ Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-3991

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92072

BAND,L=90

92072-0135

1
Out of stock

92075

DAMPER,RUBBER

92075-261

1
Out of stock

92192

TUBE,5X10.4X470&40

92192-1385

1
Out of stock

92192A

TUBE,CANISTER-VALVE

92192-1386

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock
