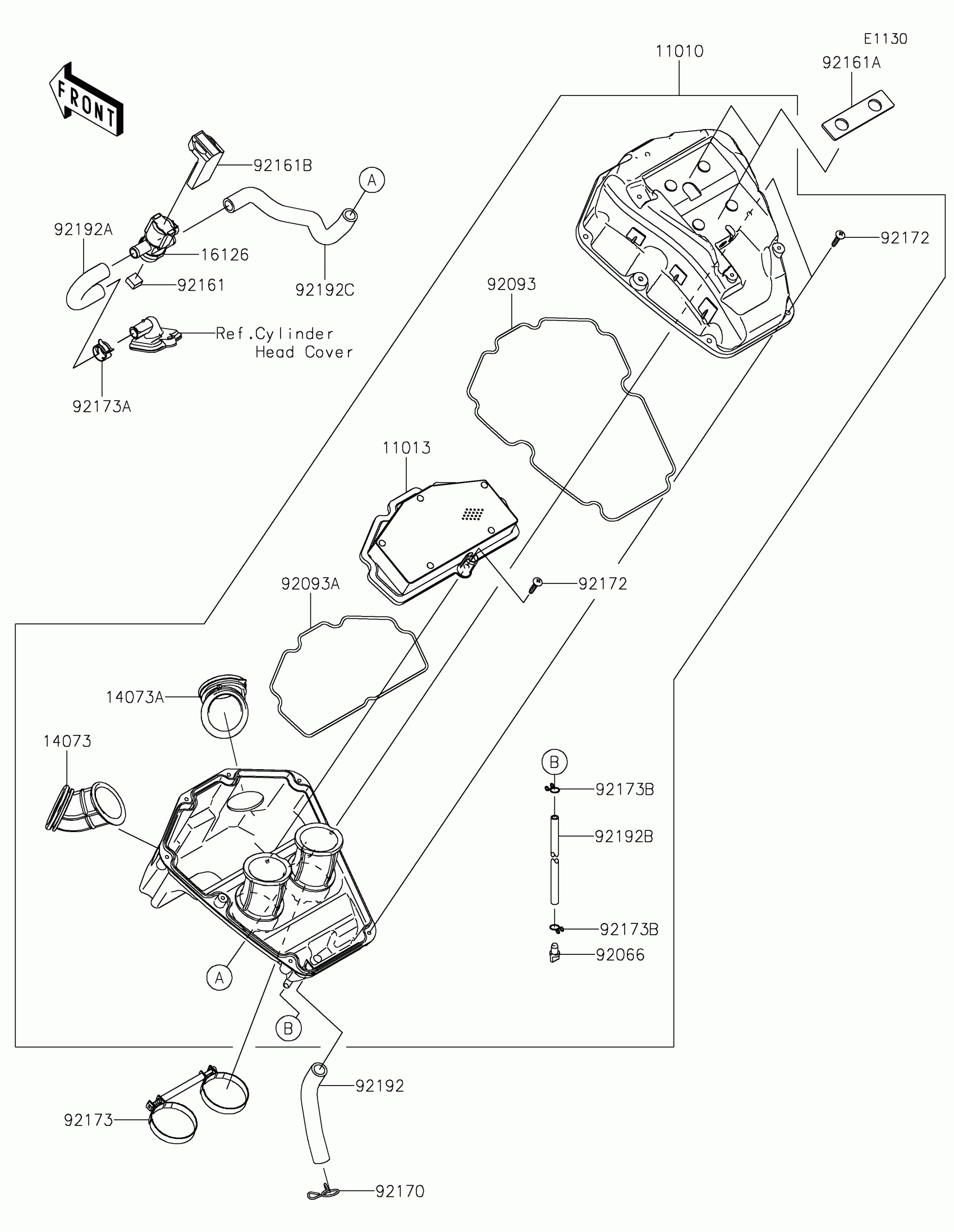

Kawasaki Vulcan® S CAFÉ Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0873

$391.12

11013

ELEMENT-AIR FILTER

11013-0745

$42.21

14073

DUCT,INTAKE,LH

14073-0799

$29.63

14073A

DUCT,INTAKE,RH

14073-0800

$29.63

16126

VALVE,AIR SWITCHING

16126-0743

$90.36

92066

PLUG,DRAIN

92066-0782

$9.97

92093

SEAL

92093-0610

$17.14

92093A

SEAL,ELEMENT

92093-0611

$14.00

92161

DAMPER

92161-1374

$1.10

92161A

DAMPER

92161-1428

$5.76

92161B

DAMPER

92161-1933

$13.81

92170

CLAMP

92170-1017

$3.57

92172

SCREW,5X25

92172-0891

$1.43

92173

CLAMP

92173-1698

$19.25

92173A

CLAMP

92173-2344

$1.68

92173B

CLAMP,10MM

92173-2400

$2.11

92192

TUBE,BREATHER

92192-0958

Unavailable

92192A

TUBE,ASV-HEAD

92192-0960

$7.51

92192B

TUBE,DRAIN,L=245

92192-1380

$11.07

92192C

TUBE,ASV-A/C

92192-1381

Unavailable
