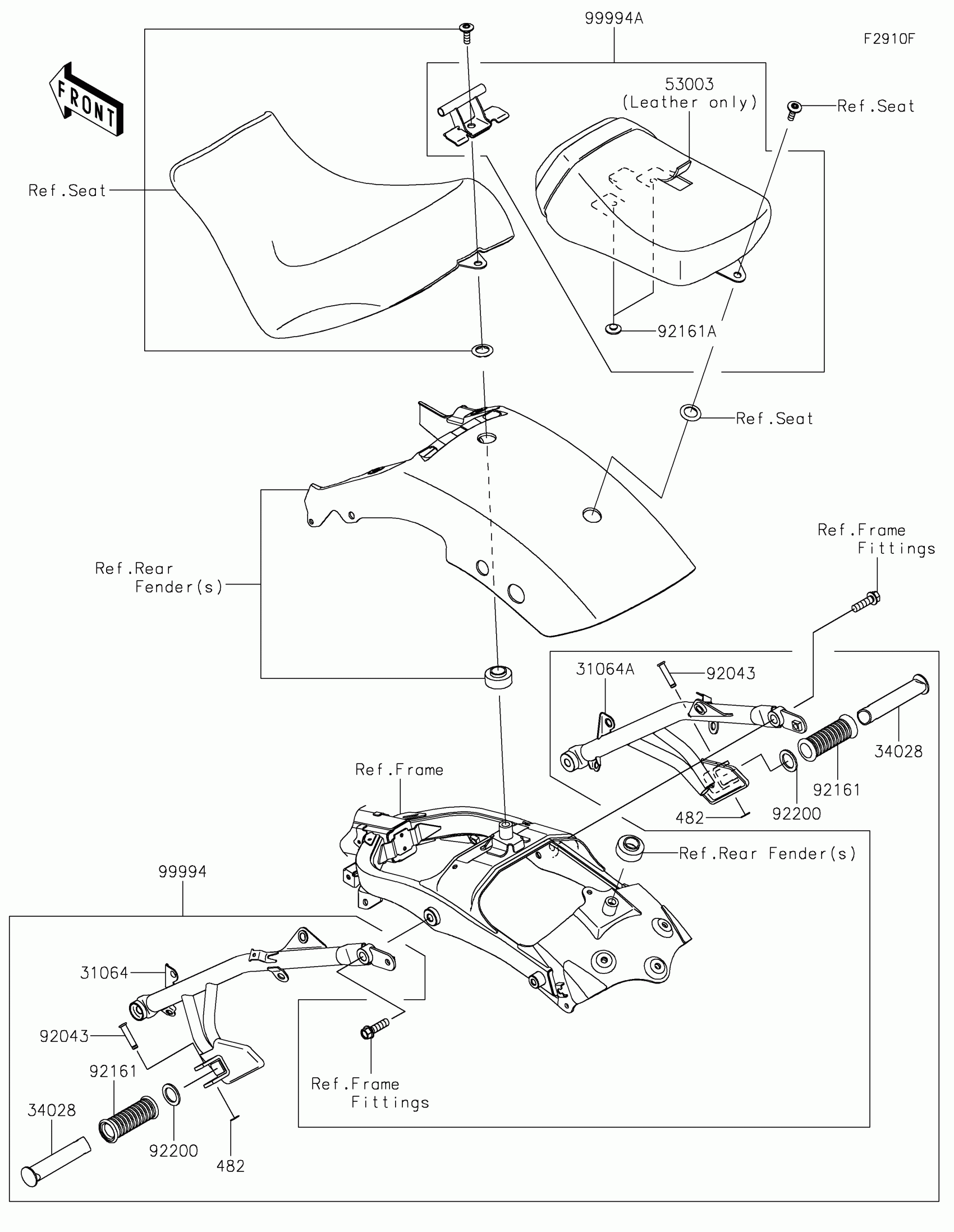

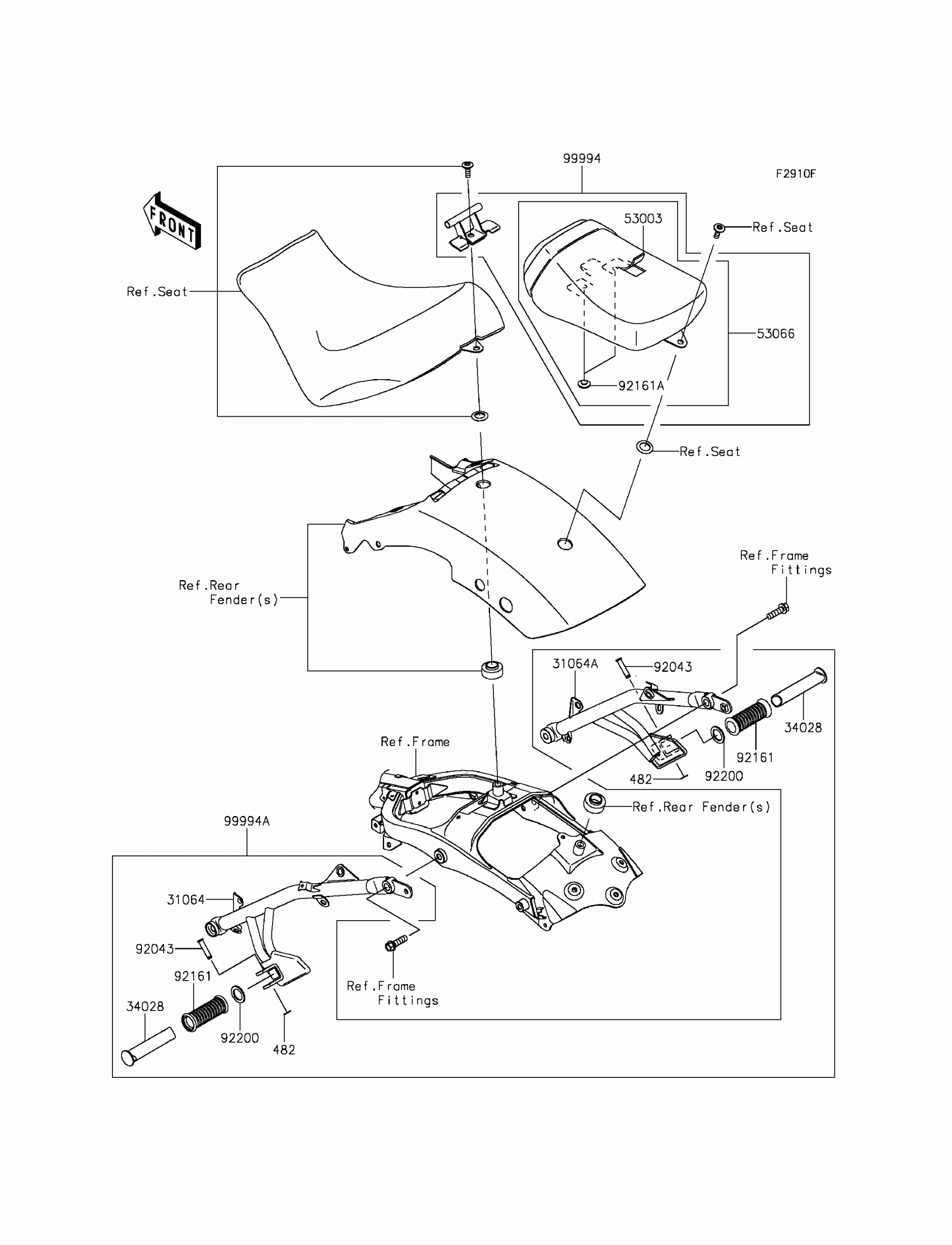

Kawasaki Vulcan® S Accessory(Passenger Seat) Diagram

Description

Price

482

CIRCLIP-TYPE-E

482EA7000

$2.99

31064

PIPE-COMP,RR,LH,F.S.BLACK

31064-0650-18R

$182.99

31064A

PIPE-COMP,RR,RH,F.S.BLACK

31064-0651-18R

$182.99

34028

STEP,RR

34028-0344

$18.91

53003

LEATHER,RR SEAT,BLACK

53003-0388-MA

$103.00

53066

SEAT-ASSY,RR,BLACK

53066-0446-12Y

$224.84

92043

PIN,8X36.5

92043-1339

$7.71

92161

DAMPER,STEP

92161-0232

$15.61

92161A

DAMPER,8X22X10

92161-1685

$0.74

92200

WASHER,22.5X33X2.3

92200-1482

$2.25

99994

KIT-ACCESSORY,PASSENGER SEAT

99994-0569

$195.67

99994A

KIT-ACCESSORY,REAR STEP

99994-0570

$102.72
