2016 Kawasaki Vulcan® S Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

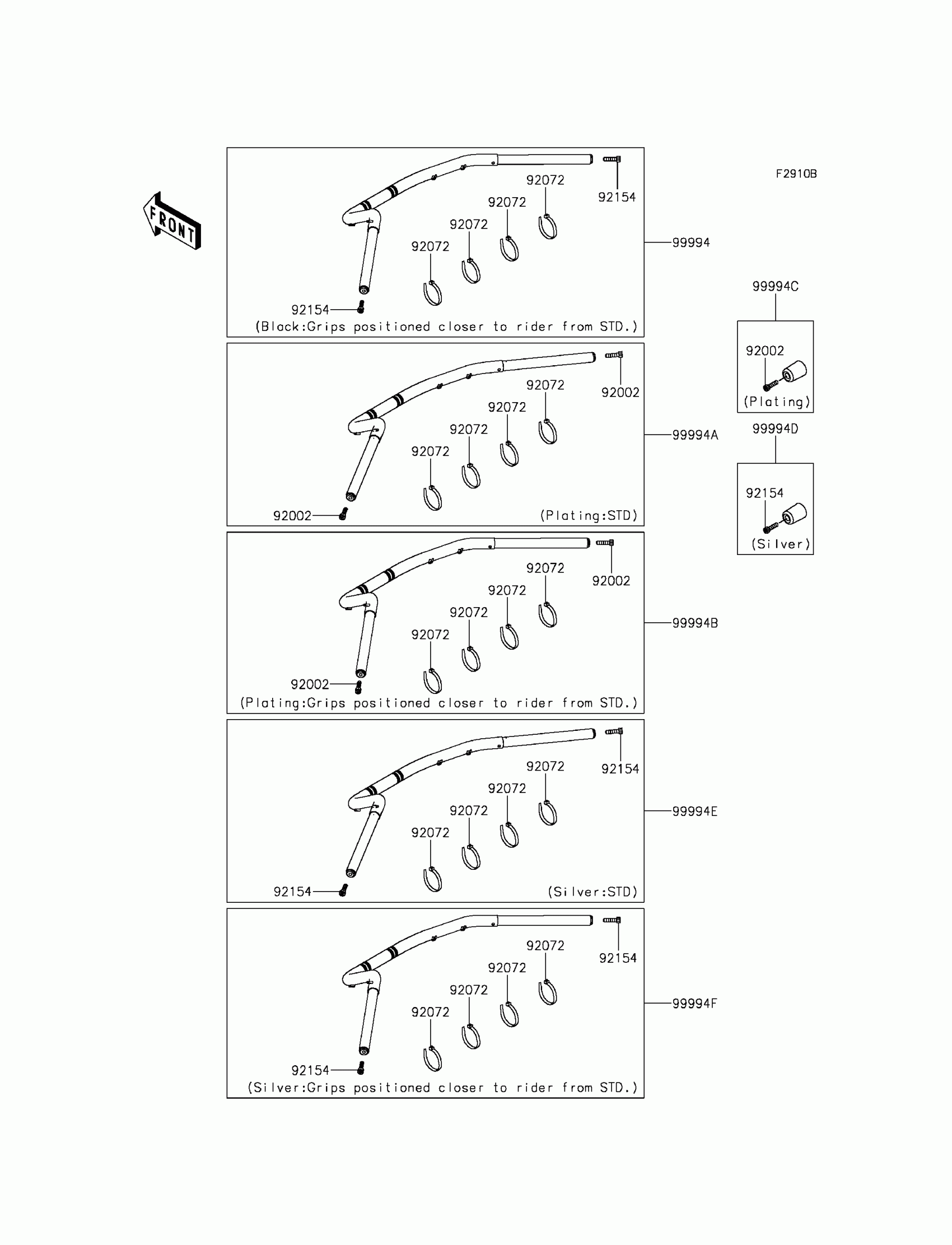

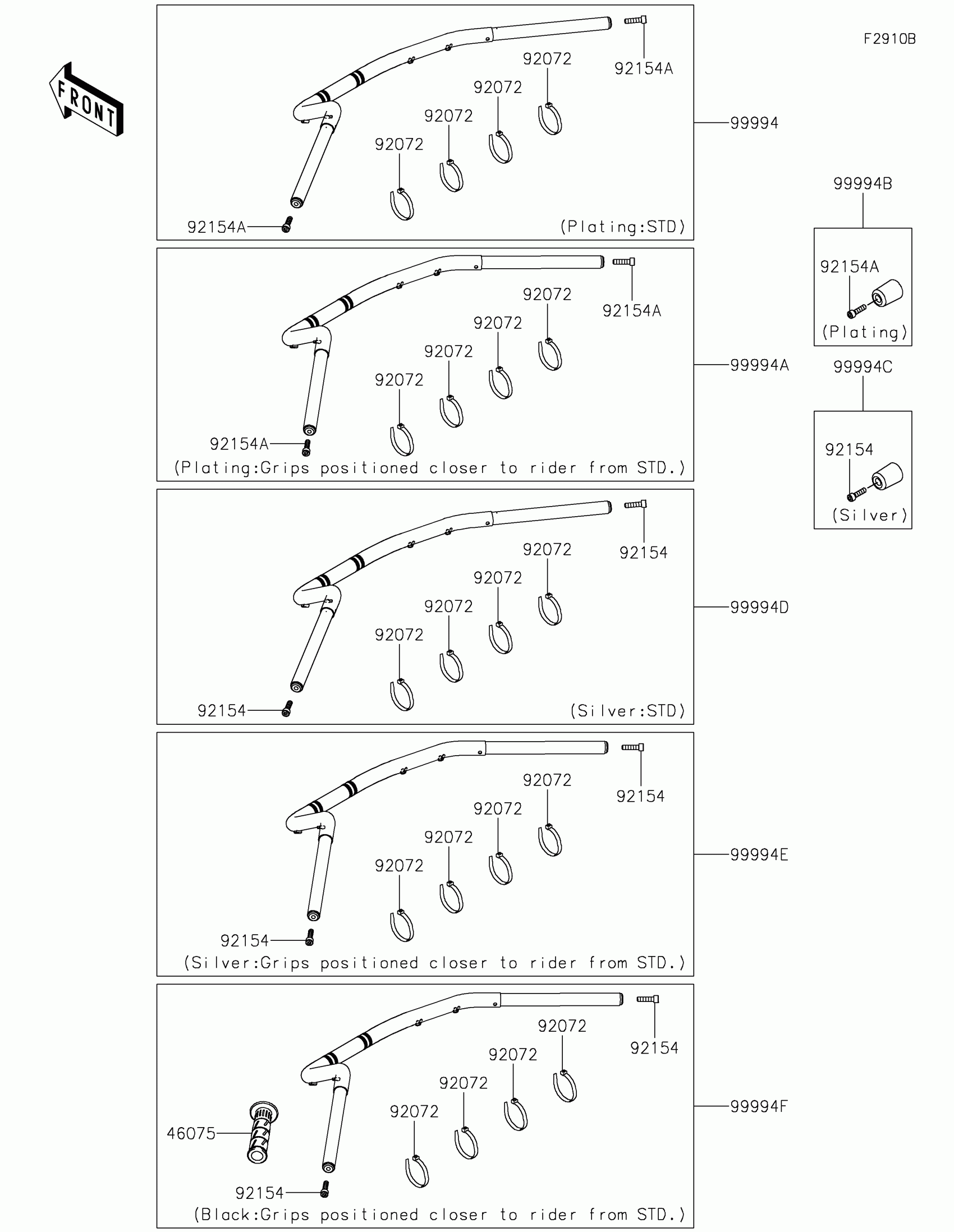

2016 Kawasaki Vulcan® S Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,SOCKET,8X30

92002-1844

1
Out of stock

92072

BAND,L=140

92072-1293

1

$5.61

In stock

92154

BOLT,SOCKET,8X30

92154-0440

1

$2.97

In stock

99994

1

$95.69

In stock

99994A

1

$234.39

In stock

99994B

1

$240.91

In stock

99994C

1

$108.73

In stock

99994D

1

$37.74

In stock

99994E

KIT.,HANDLEBAR,#1

99994-0706

1

$124.61

In stock

99994F

KIT.,HANDLEBAR,#2

99994-0707

1

$124.61

In stock
