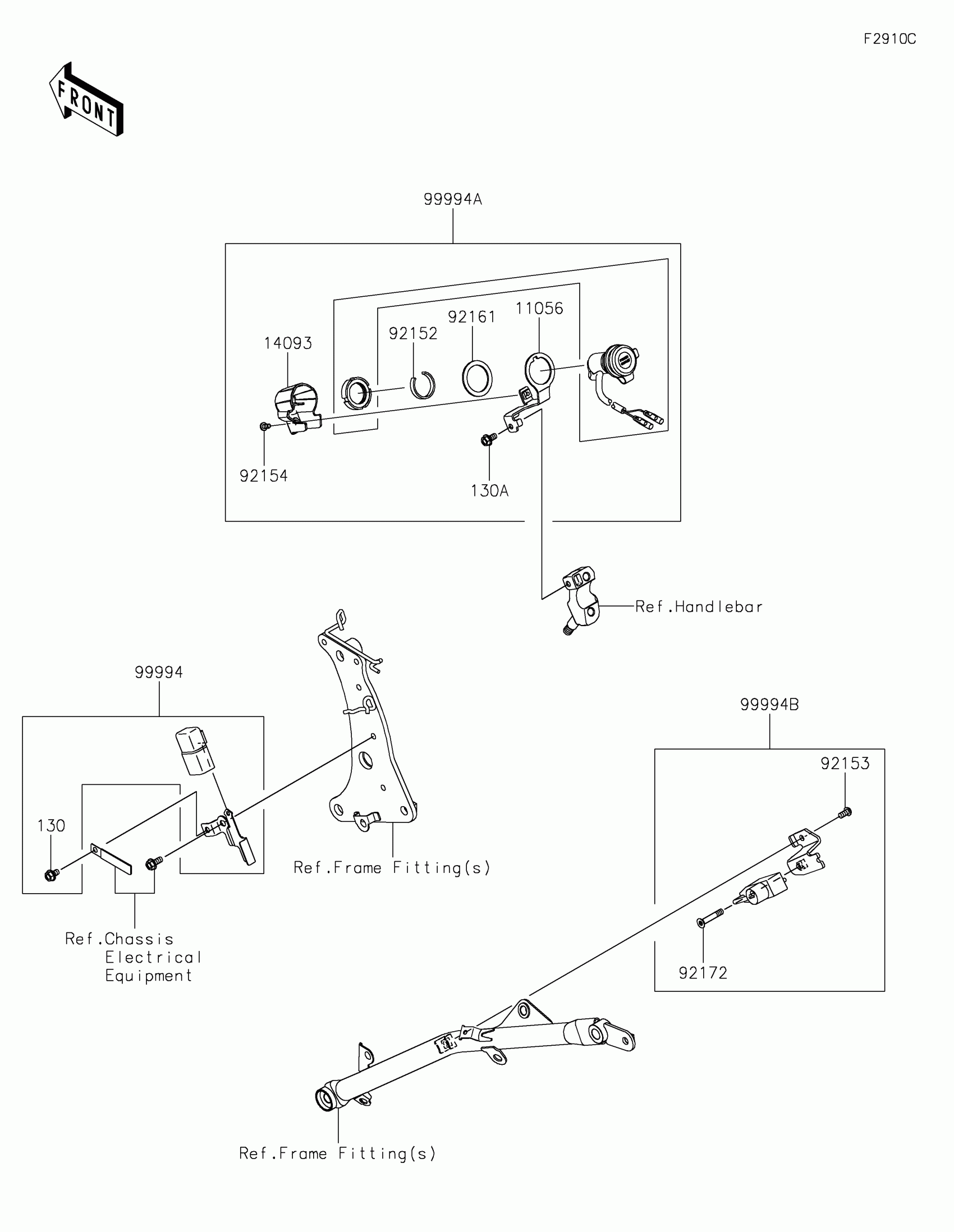

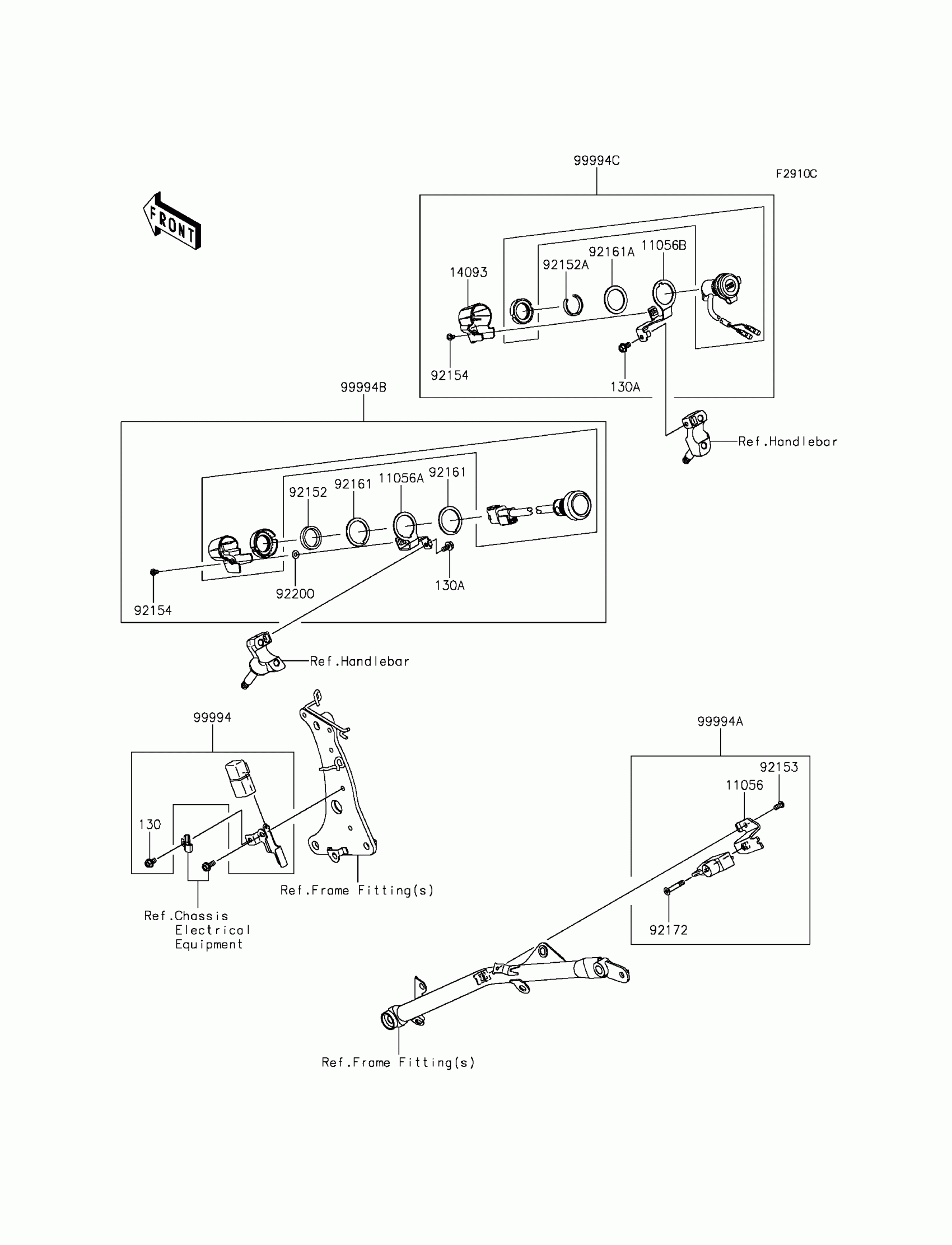

Kawasaki Vulcan® S Accessory(Helmet Lock etc.) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130AA0610

$0.48

130A

BOLT-FLANGED,6X12

130BB0612

$1.68

11056

BRACKET,HELMET LOCK

11056-7089

$110.92

11056A

BRACKET,GEAR POSITION

11056-7104

$10.72

11056B

BRACKET

11056-7538

$12.95

14093

COVER,SOCKET

14093-0212

$5.91

92152

COLLAR

92152-2122

$10.41

92152A

COLLAR

92152-2135

$7.24

92153

BOLT,6X12

92153-0906

$4.34

92154

BOLT,SOCKET,5X10

92154-1292

$1.32

92161

DAMPER

92161-1738

$7.29

92161A

DAMPER

92161-1789

$4.39

92172

SCREW,HEXLOBE,6X35

92172-0835

$2.44

92200

WASHER,NYLON,5.2X12X1

92200-1011

$2.15

99994

KIT-ACCESSORY,RELAY

99994-0510

$25.30

99994A

KIT-ACCESSORY,LOCK-HELMET

99994-0538

$142.06

99994B

KIT-ACCESSORY,GEAR-POSITION

99994-0540

$221.65

99994C

KIT-ACCESSORY,DC SOCKET

99994-0541

$31.61
