2018 Kawasaki Vulcan® S Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2018 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

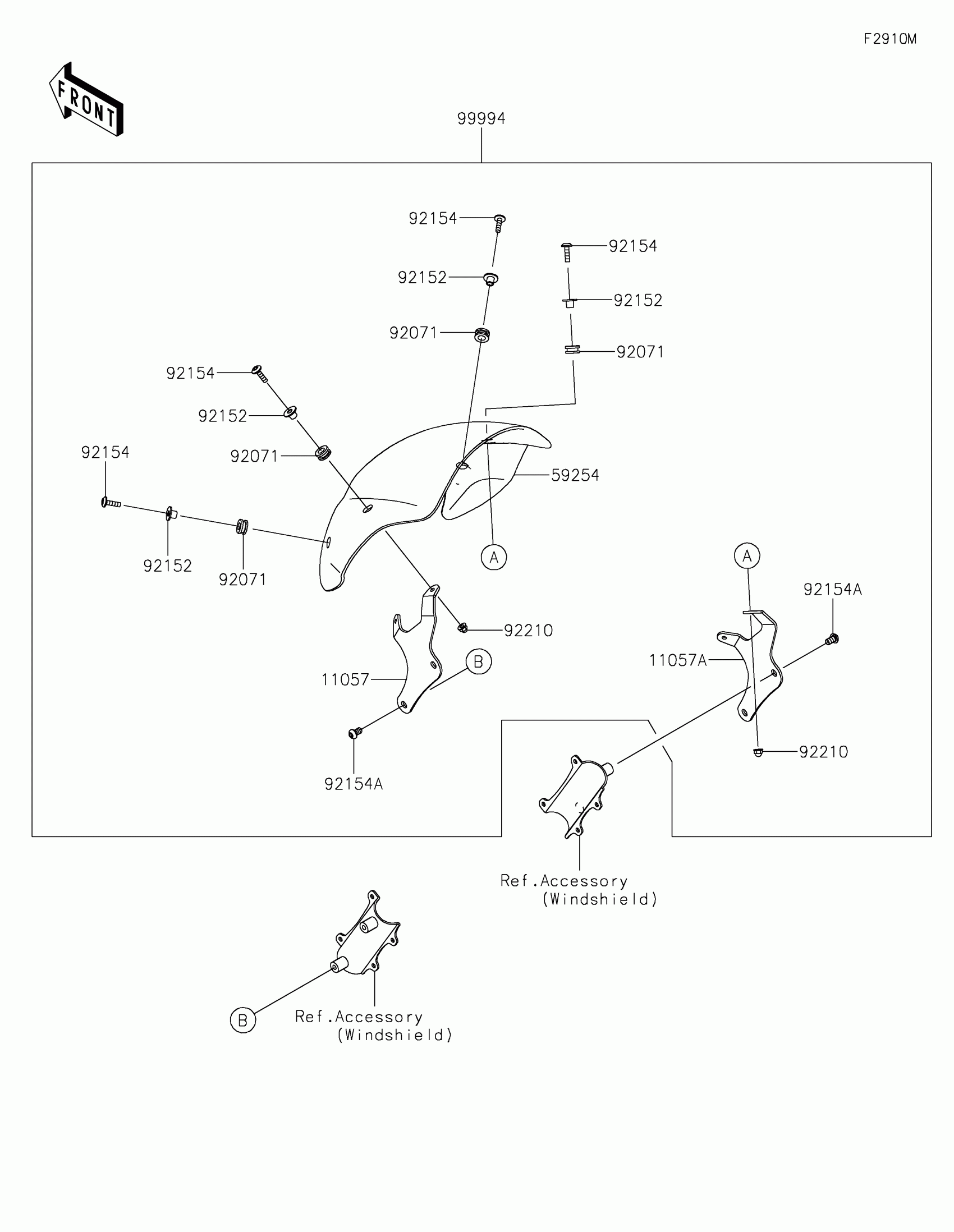

2018 Kawasaki Vulcan® S Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LH

11057-0220

1

$42.23

In stock

11057A

BRACKET,RH

11057-0221

1

$42.23

In stock

59254

DEFLECTOR

59254-0005

1

$179.76

In stock

92071

GROMMET,10X20X10

92071-0759

1

$1.64

In stock

92152

COLLAR,6.8X10X11.1

92152-2251

1
Out of stock

92154

BOLT,SOCKET,6X22

92154-0787

1

$2.19

In stock

92154A

BOLT,SOCKET,8X14

92154-1032

1

$3.27

In stock

92210

NUT,CAP,6MM

92210-0322

1
Out of stock

99994

1

$221.16

In stock
