2020 Kawasaki Vulcan® S ABS Cafe Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2020 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

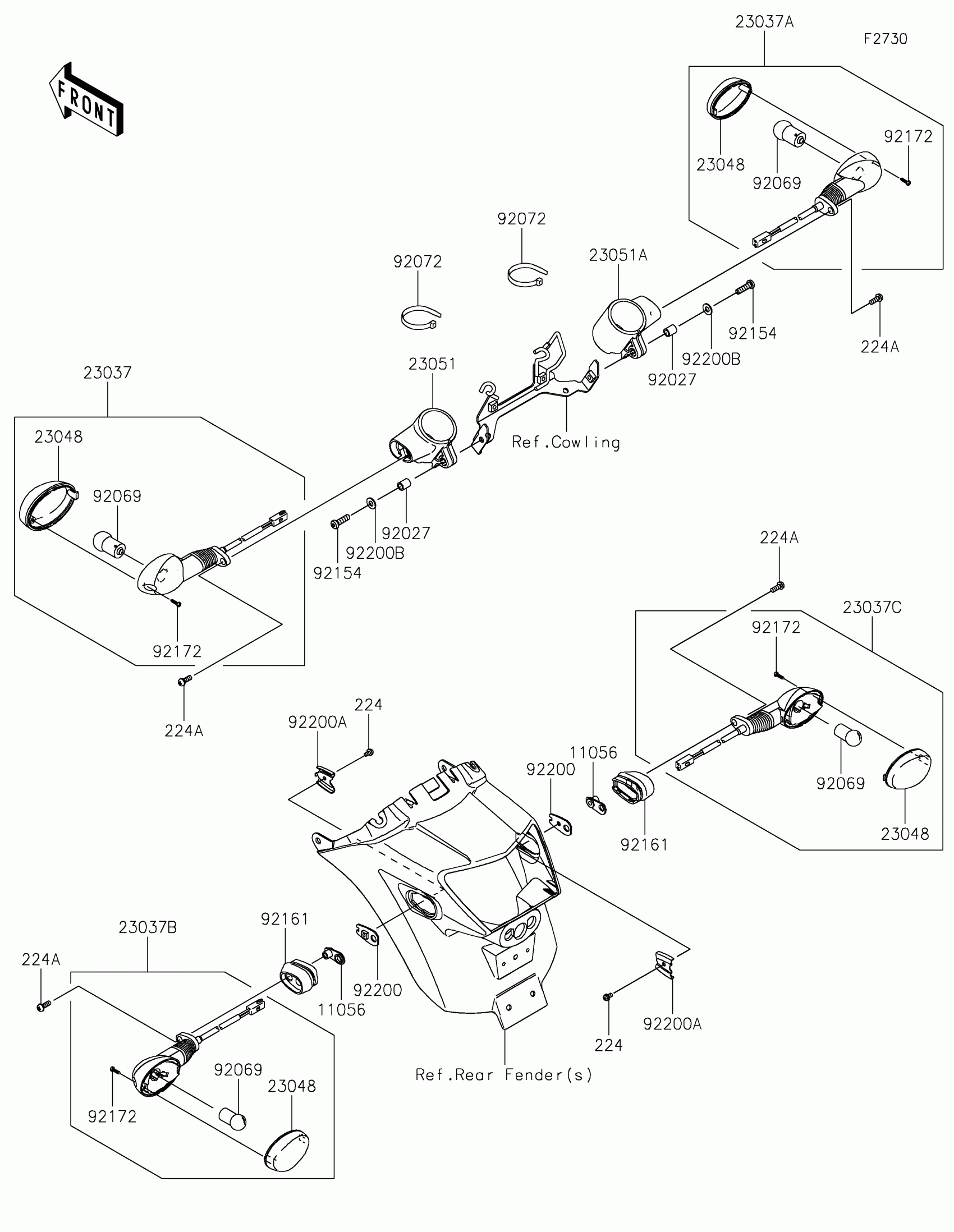

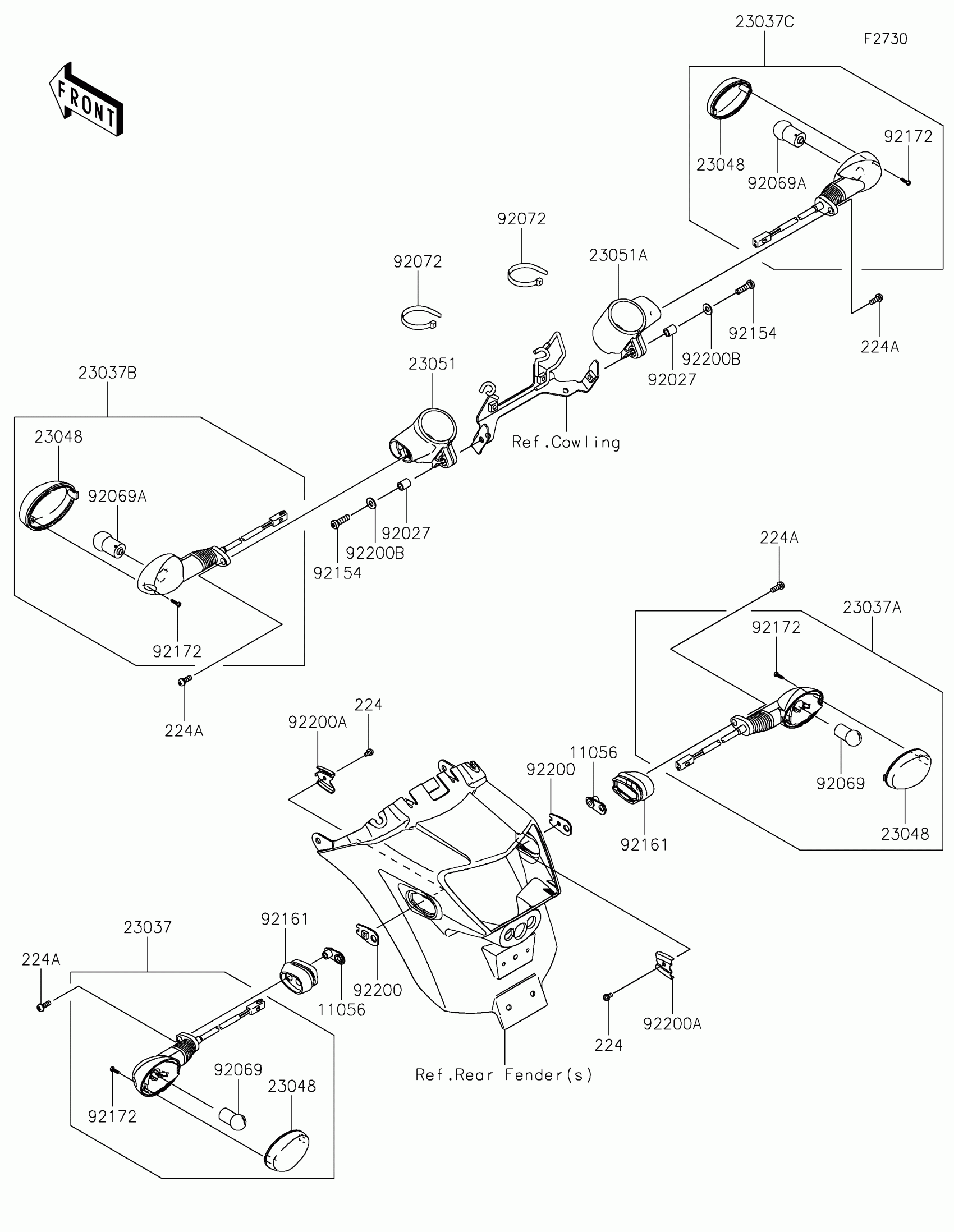

2020 Kawasaki Vulcan® S ABS Cafe Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,6MM

11056-4156

1

$3.94

In stock

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock

224A

1

$3.28

In stock

23037

1

$44.61

In stock

23037A

1

$44.61

In stock

23037B

1

$44.61

In stock

23037C

1

$44.61

In stock

23048

LENS-SIGNAL LAMP

23048-0018

1

$8.61

In stock

23051

1

$30.70

In stock

23051A

1

$30.70

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 10W

92069-0024

1
Out of stock

92069A

BULB,12V 10W

92069-0076

1

$3.30

In stock

92072

BAND,L=152

92072-3874

1

$3.75

In stock

92154

BOLT,SOCKET,6X22

92154-0402

1

$1.44

In stock

92161

DAMPER,SIGNAL LAMP

92161-1680

1

$4.74

In stock

92172

1

$1.53

In stock

92200

WASHER,SIGNAL LAMP

92200-0164

1
Out of stock

92200A

WASHER,SIGNAL LAMP

92200-0165

1
Out of stock

92200B

WASHER,6.5X14X1.2

92200-0964

1
Out of stock
