2022 Kawasaki Vulcan® S ABS Cafe Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2022 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

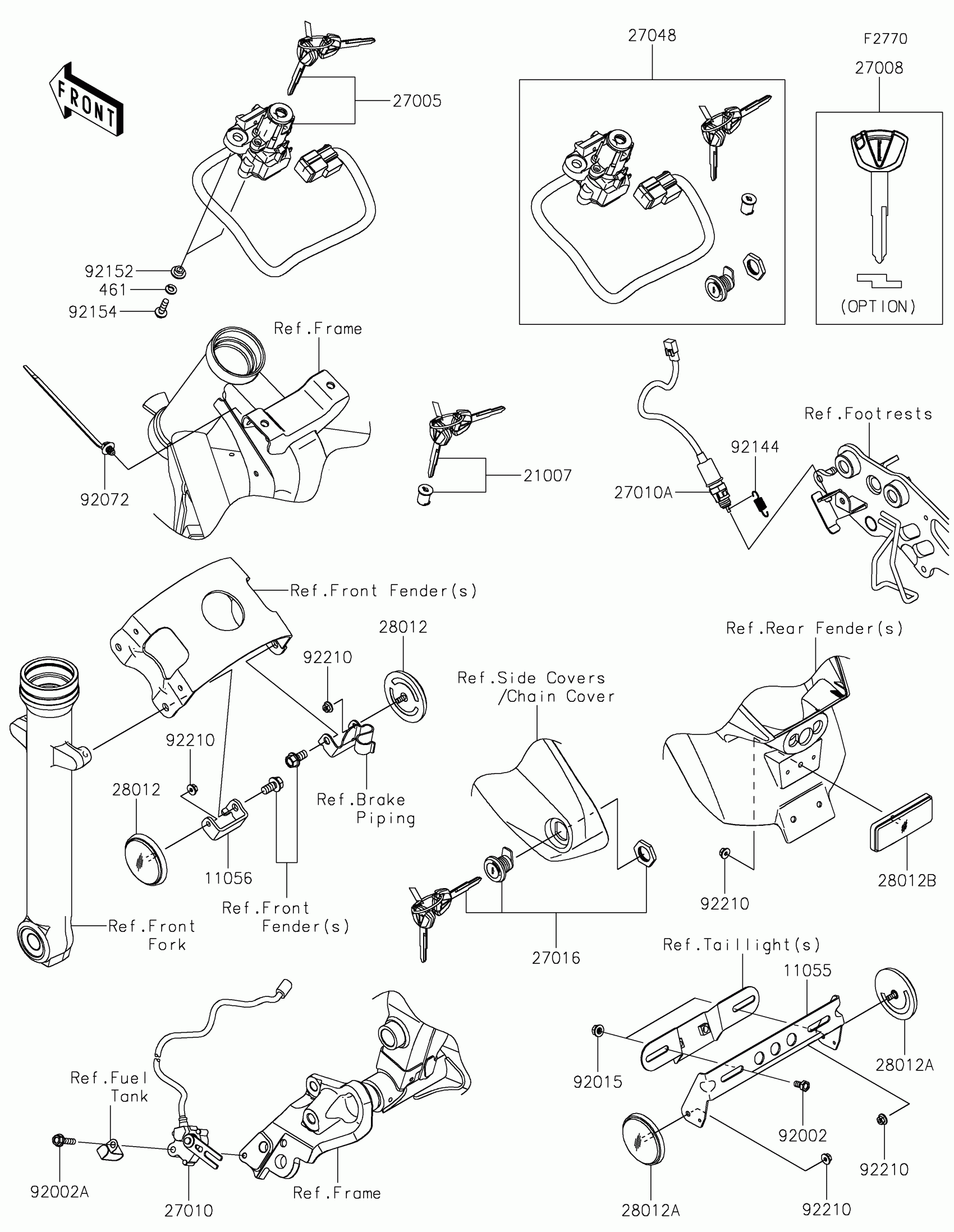

2022 Kawasaki Vulcan® S ABS Cafe Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,REFLECTOR

11055-1092

1

$33.99

In stock

11056

BRACKET,REFLECTOR,LH

11056-7698

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5077

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0595

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0596

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0722

1
Out of stock

27010A

SWITCH,RR BRAKE

27010-0760

1
Out of stock

27016

LOCK-ASSY

27016-5387

1
Out of stock

27048

SWITCH-ASSY

27048-5053

1
Out of stock

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-0002

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

92002

BOLT,6X12

92002-1132

1
Out of stock

92002A

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1141

1
Out of stock

92152

COLLAR,6.15X10.15X6

92152-1535

1
Out of stock

92154

BOLT,FLANGED,6X20

92154-0107

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
