2022 Kawasaki Vulcan® S ABS Cafe Front Fork Diagram

← All diagrams

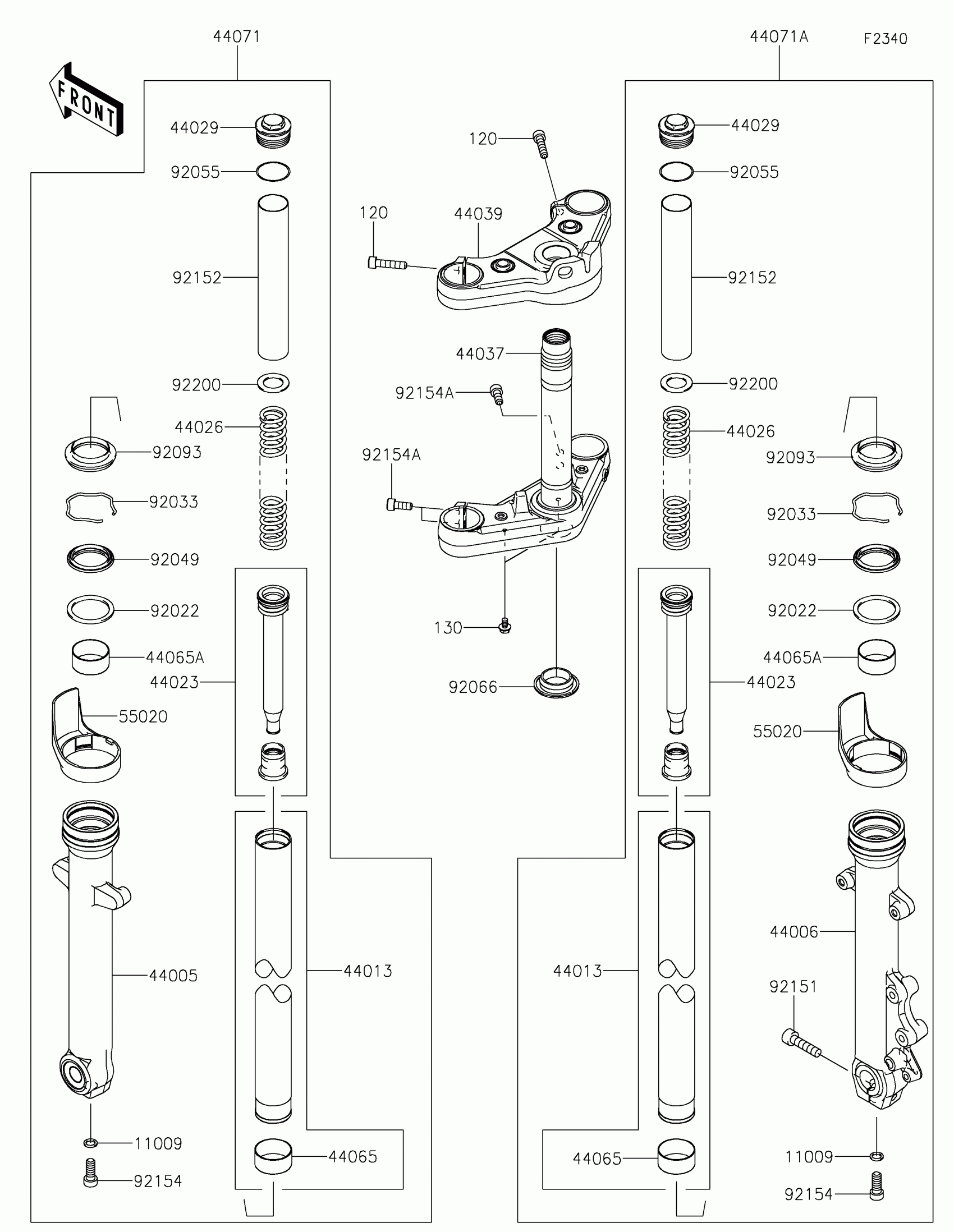

Find the part on the Front Fork diagram for your 2022 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki Vulcan® S ABS Cafe Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

44005

PIPE-LEFT FORK OUTER,S.BLACK

44005-0101-32A

1
Out of stock

44006

PIPE-RIGHT FORK OUTER,S.BLACK

44006-0101-32A

1
Out of stock

44013

PIPE-FORK INNER

44013-0270

1
Out of stock

44023

CYLINDER-SET-FORK

44023-0133

1
Out of stock

44026

SPRING-FRONT FORK

44026-0196

1
Out of stock

44029

SEAT-FORK SPRING

44029-0005

1
Out of stock

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0150-18R

1
Out of stock

44039

HOLDER-FORK UPPER,F.BLACK

44039-0146-21

1
Out of stock

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

1
Out of stock

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

1
Out of stock

44071

DAMPER-ASSY,FORK,LH,S.BLACK

44071-0988-32A

1
Out of stock

44071A

DAMPER-ASSY,FORK,RH,S.BLACK

44071-0990-32A

1
Out of stock

55020

GUARD,FORK

55020-0872

1
Out of stock

92022

WASHER,FORK OUTER TUBE

92022-1298

1
Out of stock

92033

RING-SNAP

92033-1036

1
Out of stock

92049

SEAL-OIL

92049-0073

1
Out of stock

92055

RING-O

92055-1321

1
Out of stock

92066

PLUG

92066-0817

1
Out of stock

92093

SEAL,FORK OUTER TUBE

92093-1472

1
Out of stock

92151

BOLT,SOCKET,10X40

92151-1357

1
Out of stock

92152

COLLAR

92152-2153

1
Out of stock

92154

BOLT,SOCKET,FORK CYLINDER

92154-0296

1
Out of stock

92154A

BOLT,SOCKET,8X20

92154-1811

1
Out of stock

92200

WASHER

92200-1467

1
Out of stock

120

BOLT-SOCKET,8X35

120CB0835

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1
Out of stock
