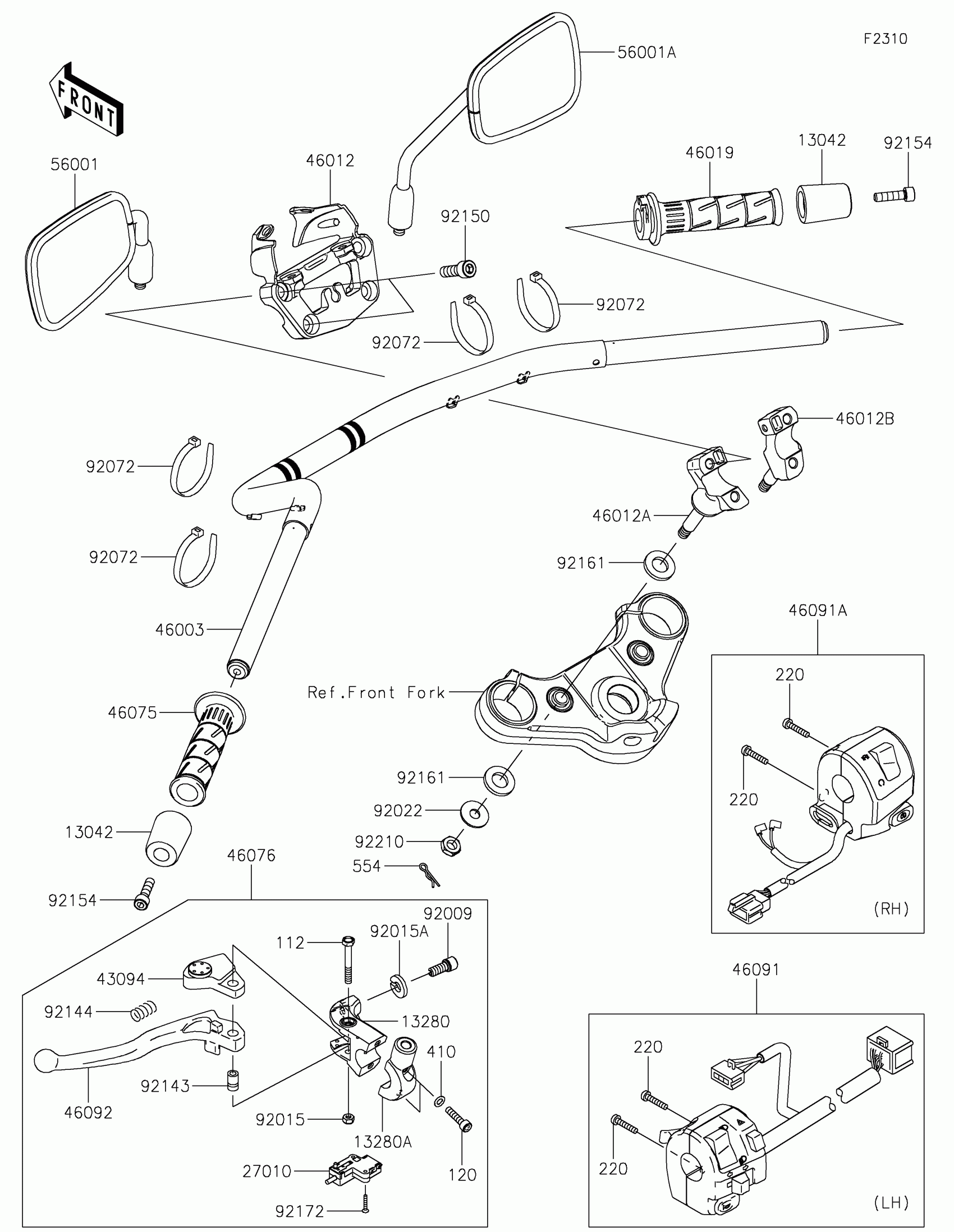

Kawasaki VULCAN® S ABS CAFE Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X45

112BB0645

$3.29

120

BOLT-SOCKET,6X25

120CB0625

$1.81

13042

WEIGHT,HANDLE

13042-5002

$45.66

13280

HOLDER,CLUTCH LEVER

13280-0306

$47.37

13280A

HOLDER,CLUTCH LEVER

13280-0307

$32.56

220

SCREW-PAN-CROS,5X25

220AB0525

$2.66

27010

SWITCH,CLUTCH

27010-0729

$29.57

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68

43094

ADJUSTER,CLUTCH LEVER

43094-0556

$40.53

46003

HANDLE,F.S.BLACK

46003-0626-18R

$95.75

46012

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0350-18R

$170.27

46012A

HOLDER-HANDLE,LWR,LH,F.S.BLACK

46012-0351-18R

$96.91

46012B

HOLDER-HANDLE,LWR,RH,F.S.BLACK

46012-0352-18R

$96.91

46019

GRIP-ASSY,THROTTLE

46019-0060

$29.02

46075

GRIP,HANDLE,LH

46075-0564

$16.11

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0137

$112.56

46091

HOUSING-ASSY-CONTROL,LH

46091-0292

$156.22

46091A

HOUSING-ASSY-CONTROL,RH

46091-0363

$193.52

46092

LEVER-GRIP,CLUTCH

46092-0031

$20.78

554

PIN-SNAP

554DB0800

$1.22

56001

MIRROR-ASSY,LH

56001-0310

$110.47

56001A

MIRROR-ASSY,RH

56001-0311

$110.47

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92022

WASHER,10.2X28X2

92022-1088

$3.57

92072

BAND,L=140

92072-1293

$5.26

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92150

BOLT,SOCKET,10X30

92150-1690

$4.67

92154

BOLT,SOCKET,8X30

92154-0440

$2.84

92161

DAMPER,16.2X30X4

92161-1659

$1.10

92172

SCREW,3X16

92172-0183

$1.57

92210

NUT,LOCK,10MM

92210-0784

$4.52
