2011 Kawasaki Vulcan® 900 Custom Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2011 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

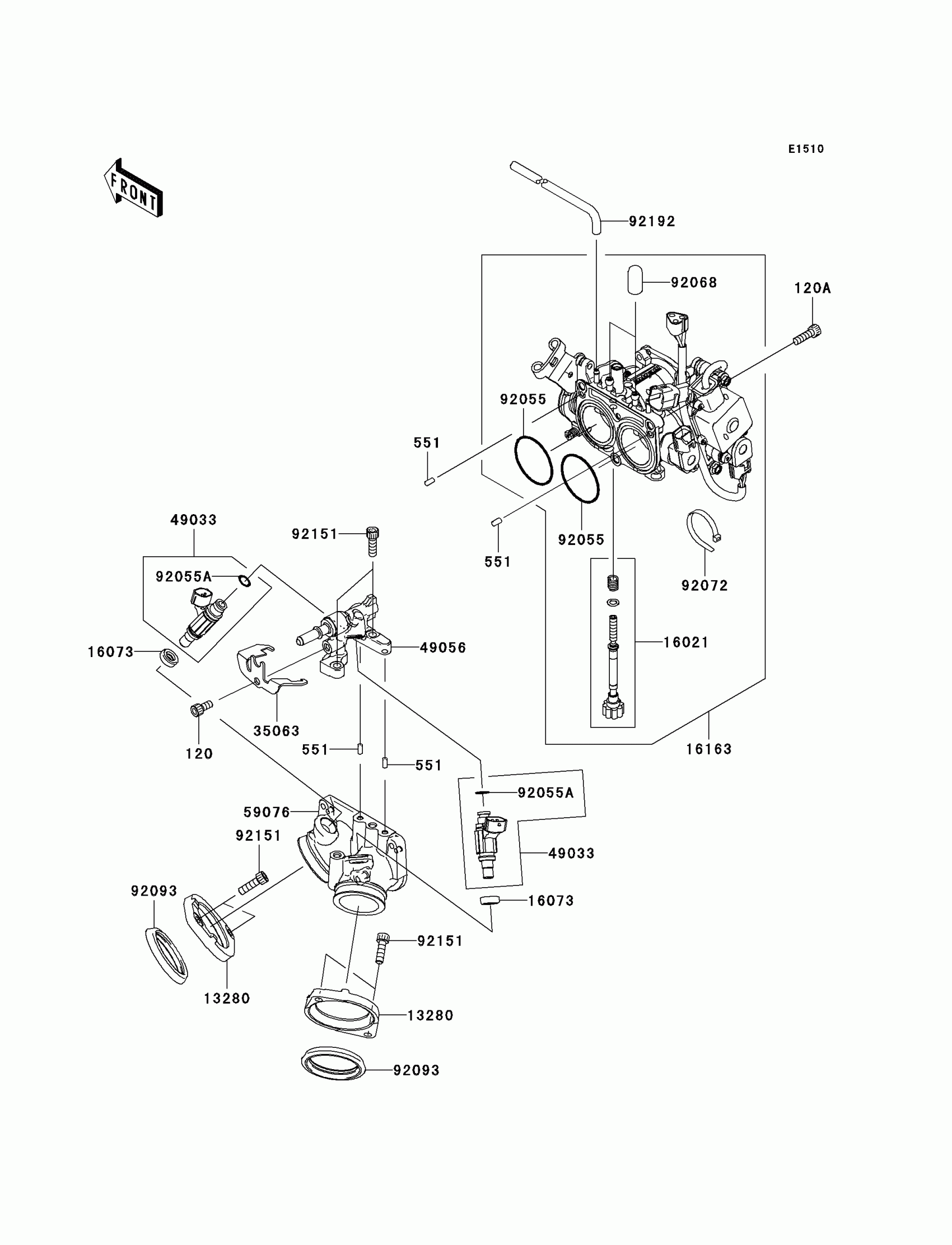

2011 Kawasaki Vulcan® 900 Custom Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120CA0612

1

$1.47

In stock

120A

BOLT-SOCKET,6X20

120CA0620

1

$1.49

In stock

551

PIN-DOWEL

551R0408

1

$4.27

In stock

13280

HOLDER

13280-1154

1

$22.39

In stock

16021

SCREW-THROTTLE STOP

16021-0016

1

$114.27

In stock

16073

INSULATOR

16073-3707

1

$4.90

In stock

16163

THROTTLE-ASSY,TTK34

16163-0114

1

$874.11

In stock

35063

STAY

35063-0240

1

$7.42

In stock

49033

NOZZLE-INJECTION

49033-0011

1

$83.76

In stock

49056

PIPE-INJECTION

49056-0018

1

$123.15

In stock

59076

MANIFOLD-INTAKE

59076-0003

1

$162.15

In stock

92055

RING-O

92055-0118

1

$13.35

In stock

92055A

1

$1.64

In stock

92068

PLUG,12X25

92068-006

1

$3.39

In stock

92072

BAND,SUB-HARNESS

92072-0012

1

$3.97

In stock

92093

SEAL

92093-0072

1

$19.01

In stock

92151

BOLT,SOCKET,6X20

92151-3774

1

$1.56

In stock

92192

TUBE,SENSOR-THROBO

92192-0308

1
Out of stock
← Fuel Tank Clutch →
