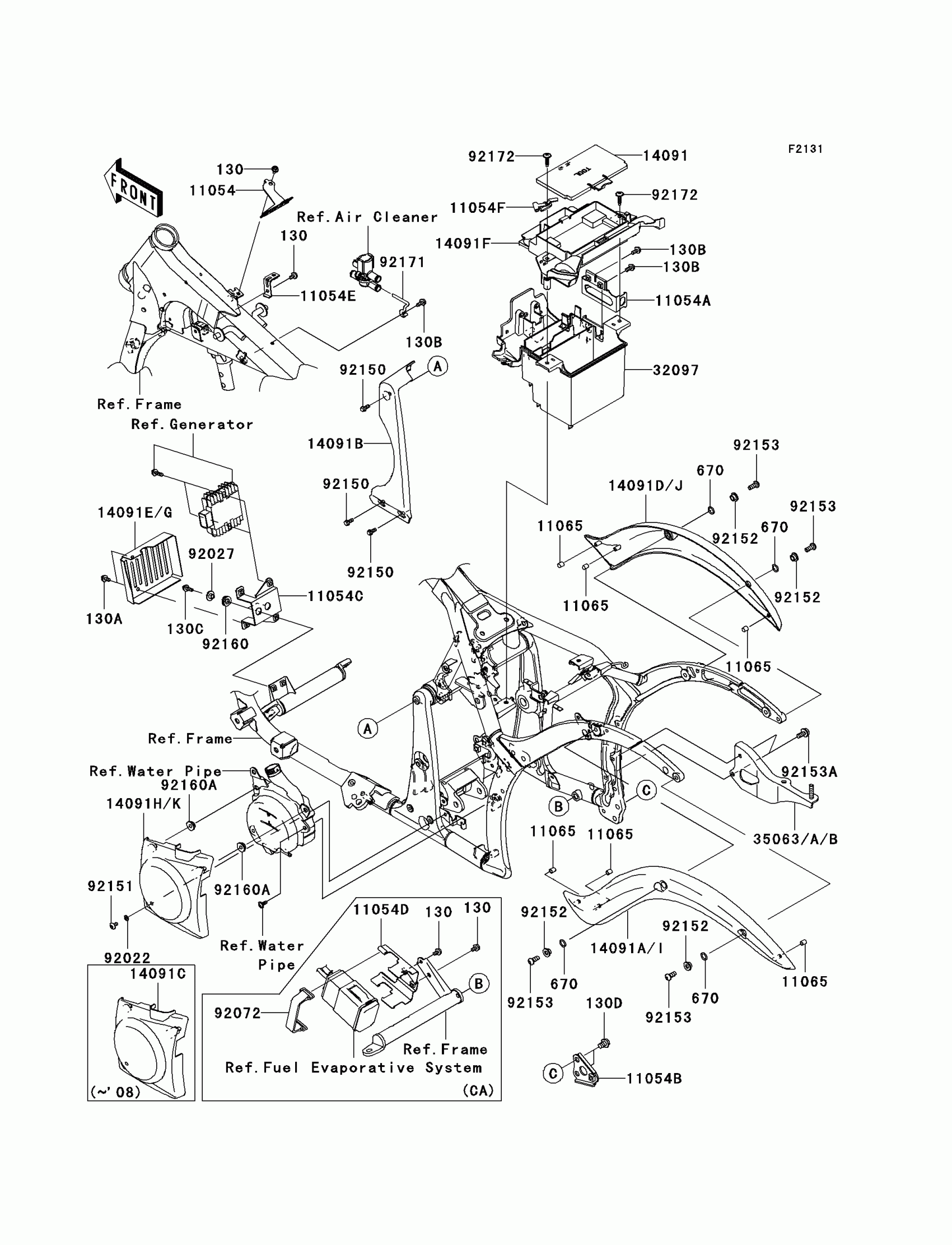

Find the part on the Frame Fittings diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

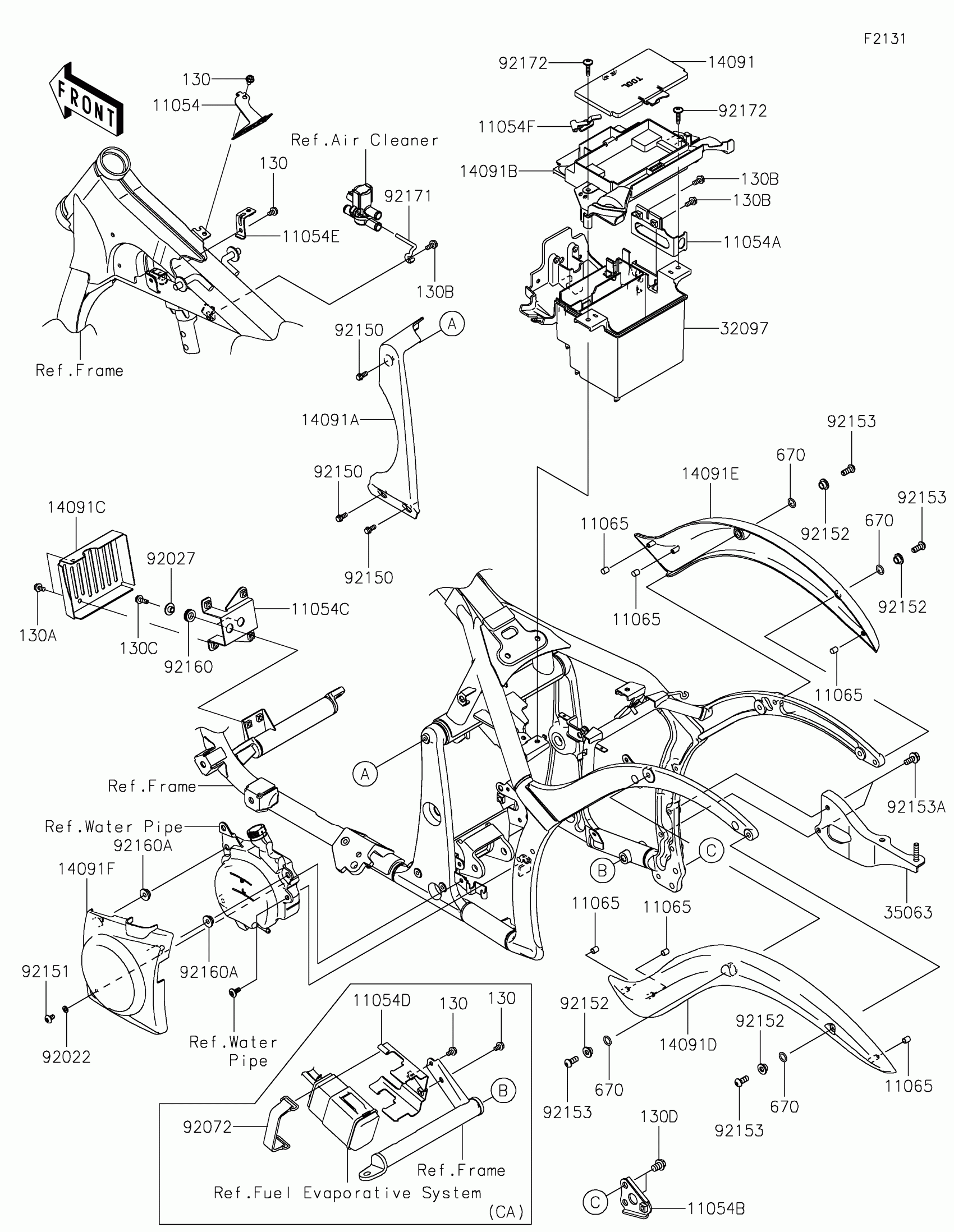

2009 Kawasaki Vulcan® 900 Custom Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,FRONT COUPLER

11054-0119

1
Out of stock

11054A

BRACKET,RELAY BOX

11054-0120

1
Out of stock

11054B

BRACKET,MUFFLER

11054-0122

1
Out of stock

11054C

BRACKET,REGULATOR

11054-0124

1
Out of stock

11054E

BRACKET,BOOST SENSOR

11054-0736

1
Out of stock

11054F

BRACKET,HELMET LOCK

11054-0738

1
Out of stock

11065

CAP

11065-0156

1
Out of stock

14091

COVER,TOOL CASE

14091-0520

1
Out of stock

14091A

COVER,FENDER,LH

14091-0521

1
Out of stock

14091B

COVER,PIVOT

14091-0526

1
Out of stock

14091D

COVER,FENDER,RH

14091-0638

1
Out of stock

14091F

COVER,BATTERY CASE&TOOL CASE

14091-0733

1
Out of stock

14091G

COVER,REGULATOR

14091-0836

1
Out of stock

14091H

COVER,RESERVOIR TANK

14091-1628

1
Out of stock

32097

CASE-BATTERY

32097-0021

1
Out of stock

35063A

STAY,MUFFLER,F.S.BLACK

35063-0342-18R

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,L=7.4

92027-1848

1
Out of stock

92150

BOLT,FLANGED,6X14

92150-1689

1
Out of stock

92151

BOLT,SOCKET,6X12

92151-1940

1
Out of stock

92152

COLLAR

92152-0381

1
Out of stock

92153

BOLT,SOCKET,8X20

92153-0912

1
Out of stock

92153A

BOLT,FLANGED,8X20

92153-1704

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92160A

DAMPER

92160-1613

1
Out of stock

92171

CLAMP

92171-0600

1
Out of stock

92172

SCREW,6X26

92172-0137

1
Out of stock

130A

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

130B

BOLT-FLANGED,6X14

130BB0614

1
Out of stock

130C

BOLT-FLANGED,6X20

130BB0620

1
Out of stock

130D

BOLT-FLANGED,10X14

130BB1014

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock

11054D

BRACKET,CANISTER

11054-0147

1
Out of stock

92072

BAND

92072-1384

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1
Out of stock
