2009 Kawasaki Vulcan® 900 Custom Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

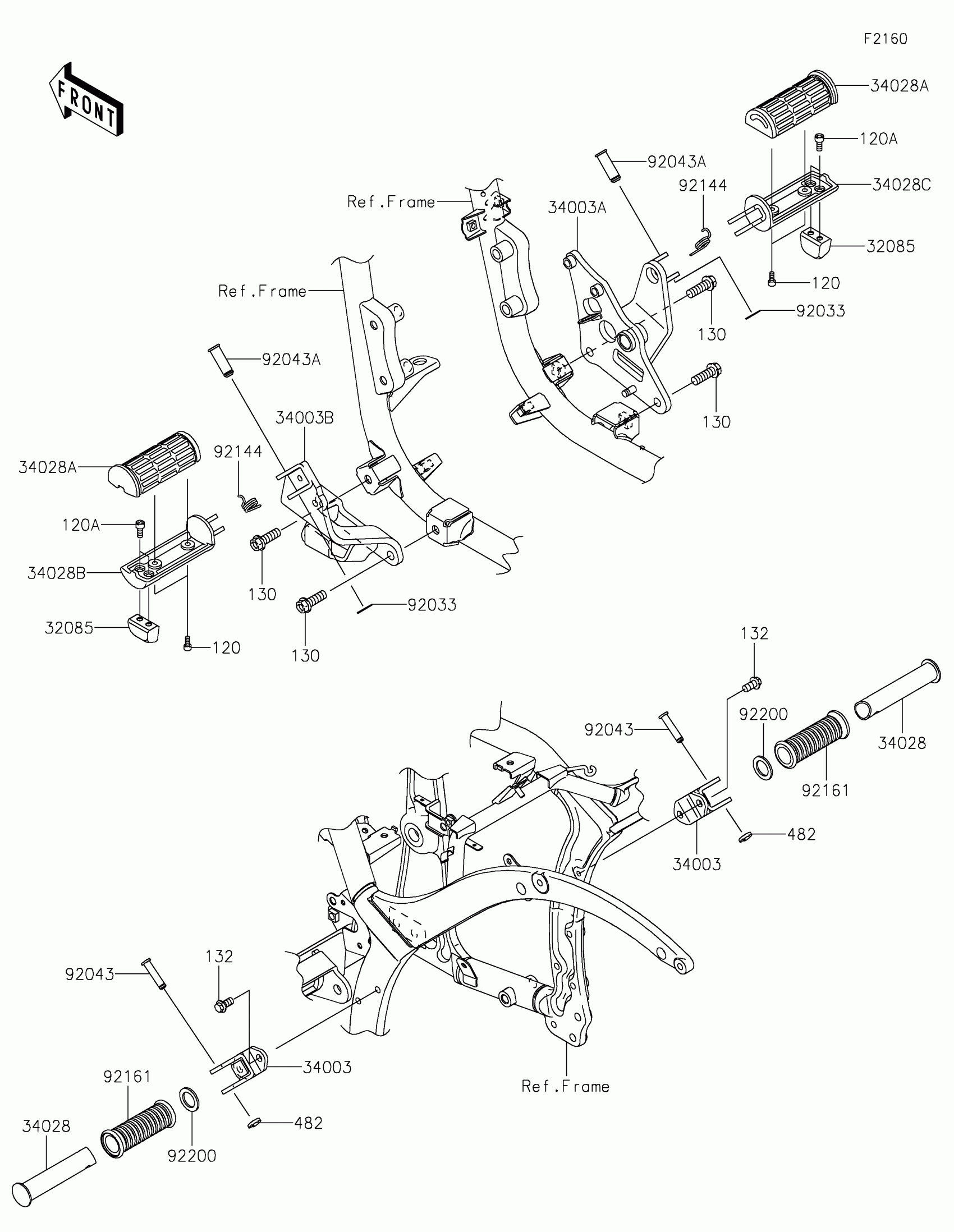

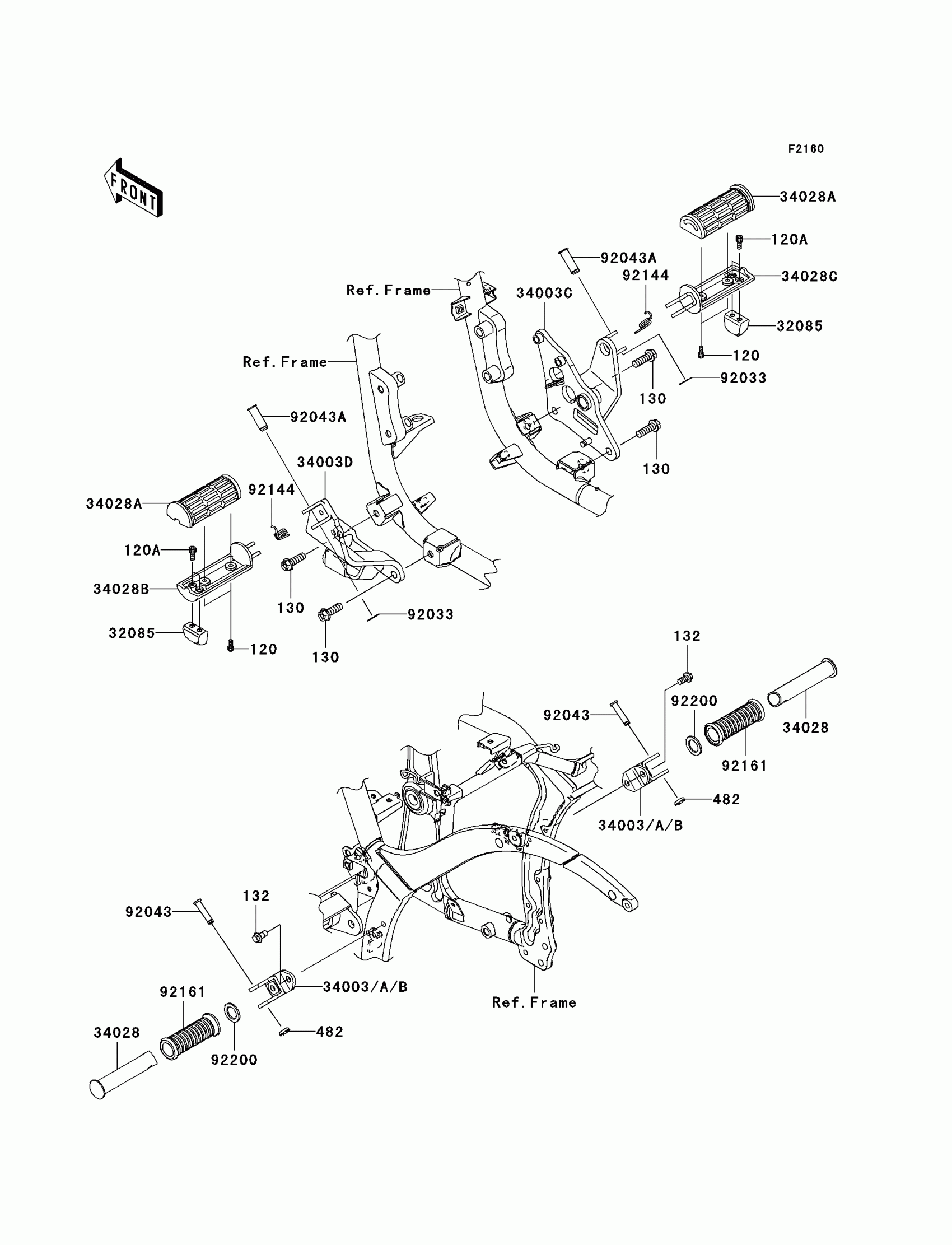

2009 Kawasaki Vulcan® 900 Custom Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120CB0512

1

$1.51

In stock

120A

BOLT-SOCKET,6X14

120CB0614

1

$3.28

In stock

130

BOLT-FLANGED,10X30

130BB1030

1

$5.19

In stock

132

1

$3.69

In stock

482

CIRCLIP-TYPE-E

482EA7000

1

$3.12

In stock

32085

STOPPER,BANK SENSOR

32085-1534

1

$24.19

In stock

34003A

HOLDER-STEP,RR,F.S.BLACK

34003-0030-18R

1

$40.40

In stock

34003C

HOLDER-STEP,FR,RH

34003-0045

1

$210.29

In stock

34003D

HOLDER-STEP,FR,LH

34003-0051

1

$165.51

In stock

34028

STEP,RR

34028-0017

1

$21.92

In stock

34028A

STEP,RUBBER

34028-0076

1

$24.68

In stock

34028B

STEP,FR,LH

34028-1519

1

$45.73

In stock

34028C

STEP,FR,RH

34028-1520

1

$48.57

In stock

92033

RING-SNAP,10MM

92033-1166

1

$3.10

In stock

92043

PIN,8X36.5

92043-1339

1

$7.71

In stock

92043A

PIN,12X37

92043-1358

1

$6.44

In stock

92144

SPRING,STEP RETURN

92144-1126

1

$4.88

In stock

92161

DAMPER,STEP

92161-0232

1

$15.61

In stock

92200

WASHER,22.5X33X2.3

92200-1482

1
Out of stock
