2009 Kawasaki Vulcan® 900 Custom Fenders Diagram

← All diagrams

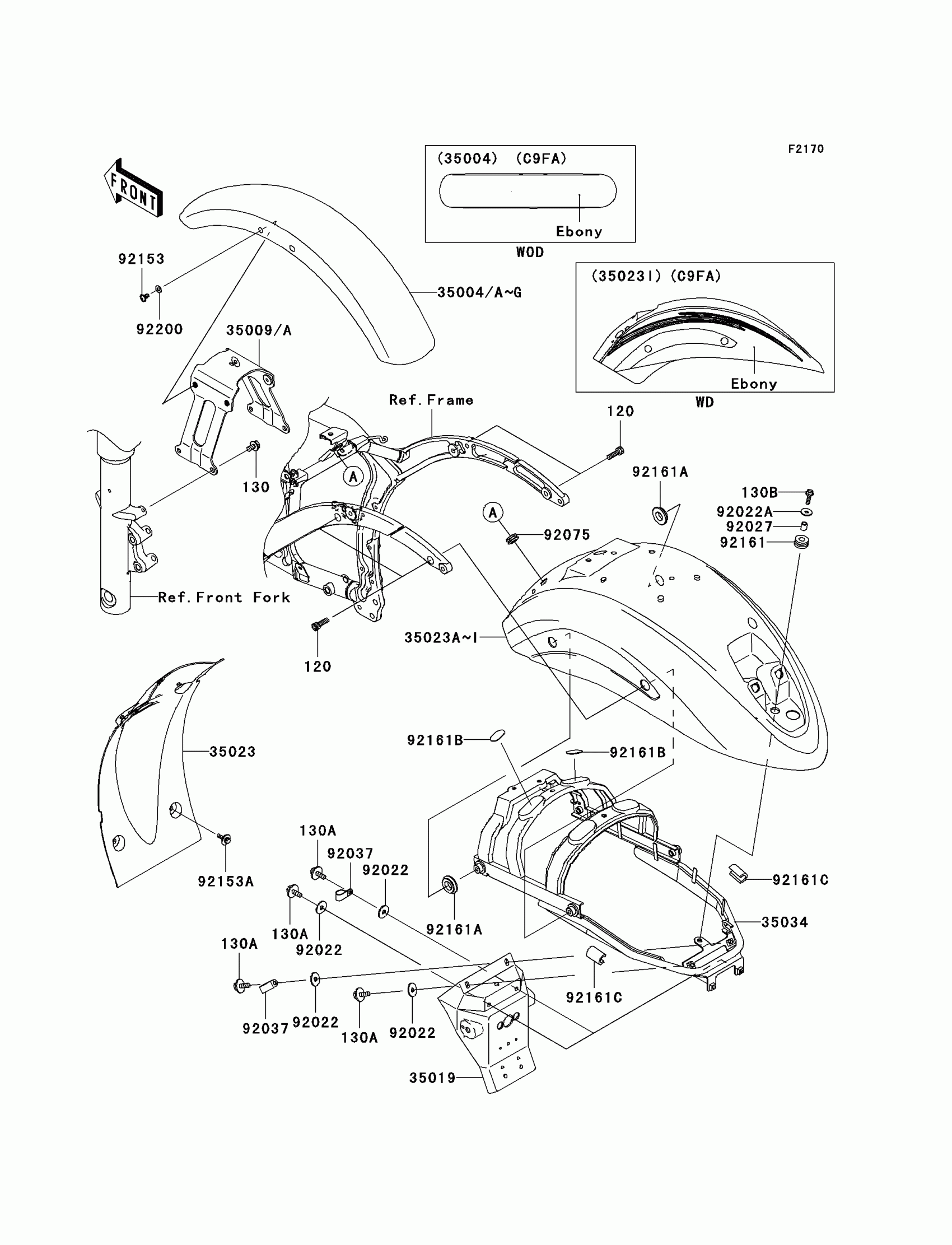

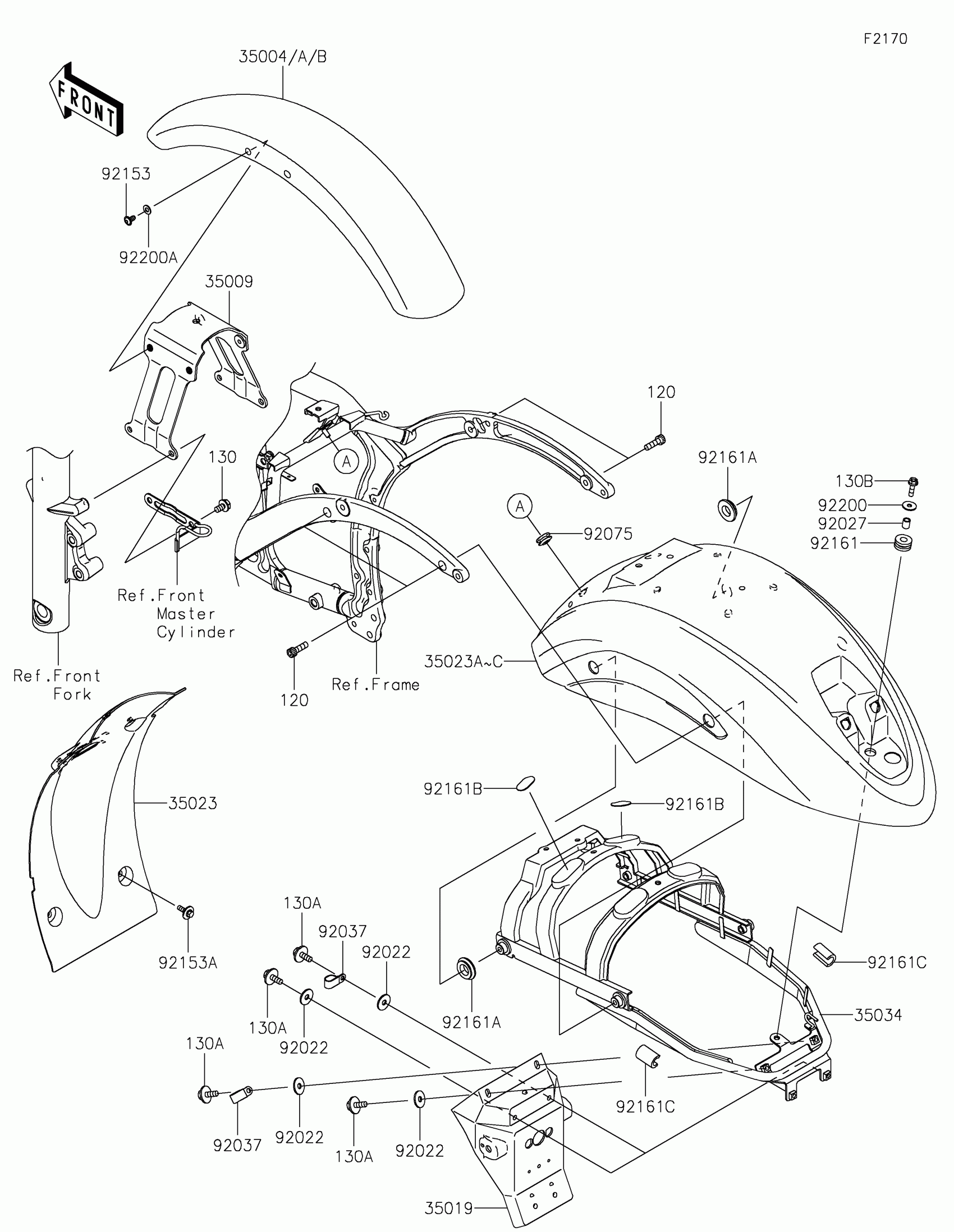

Find the part on the Fenders diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X25

120CA0825

1
Out of stock

130

BOLT-FLANGED,8X14

130BA0814

1
Out of stock

130A

BOLT-FLANGED,6X16

130BB0616

1
Out of stock

130B

BOLT-FLANGED,6X22

130BB0622

1
Out of stock

35004B

FENDER-FRONT,C.B.ORANGE

35004-0082-17L

1
Out of stock

35004D

FENDER-FRONT,M.M.S.BLUE

35004-0082-19A

1
Out of stock

35009

BRACE,FRONT FENDER

35009-0024

1
Out of stock

35019

FLAP

35019-0014

1
Out of stock

35023

FENDER-REAR,INNER

35023-0073

1
Out of stock

35023C

FENDER-REAR,C.B.ORANGE

35023-0106-17L

1
Out of stock

35023E

FENDER-REAR,M.M.S.BLUE

35023-0106-19A

1
Out of stock

35034

REINFORCE,REAR FENDER

35034-0086

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92022A

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92037

CLAMP

92037-1608

1
Out of stock

92075

DAMPER

92075-1067

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-1527

1
Out of stock

92153A

BOLT,6X20

92153-1599

1
Out of stock

92161

DAMPER

92161-0163

1
Out of stock

92161A

DAMPER

92161-0375

1
Out of stock

92161B

DAMPER

92161-0406

1
Out of stock

92161C

DAMPER

92161-0459

1
Out of stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock
