2010 Kawasaki Vulcan® 900 Classic Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

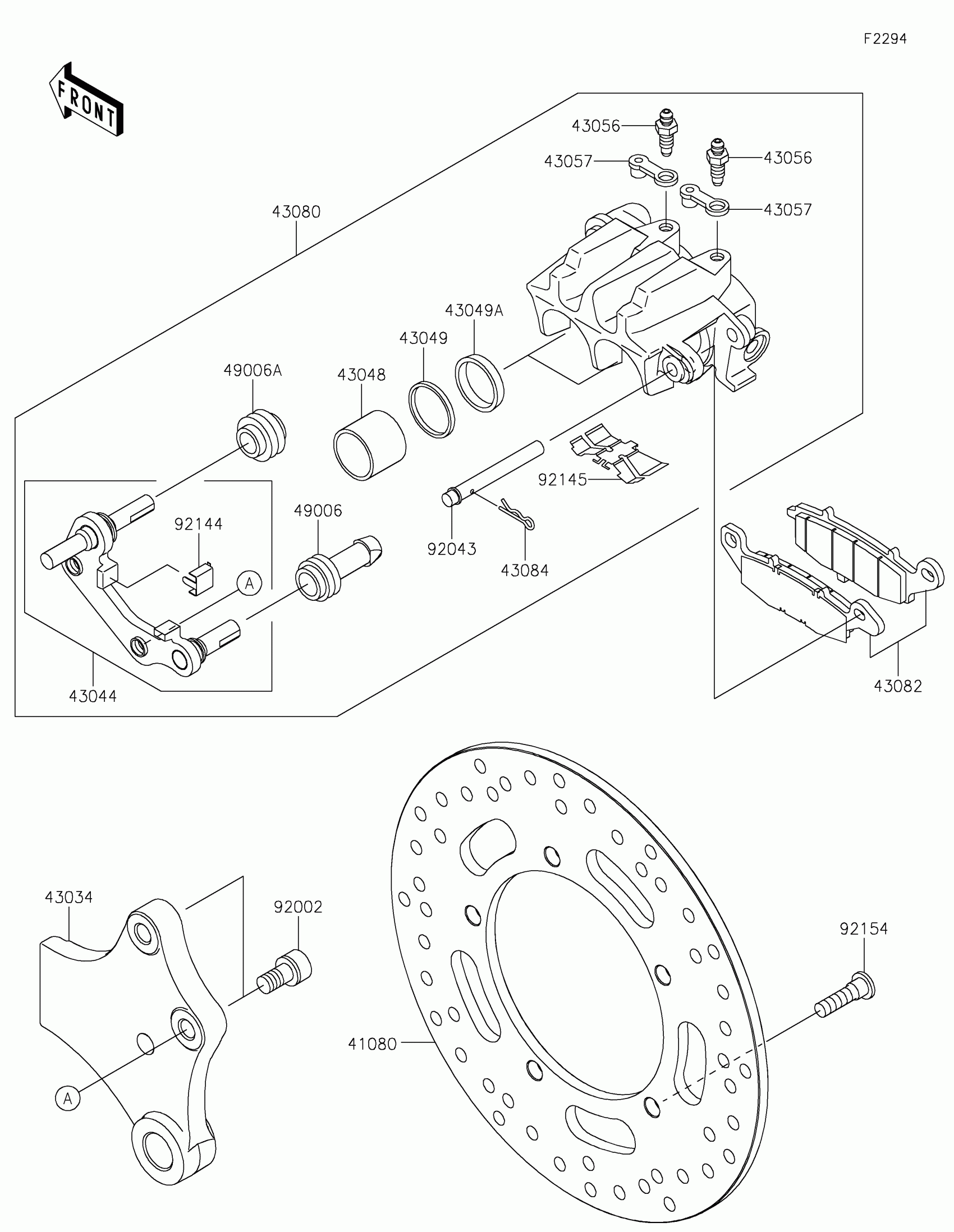

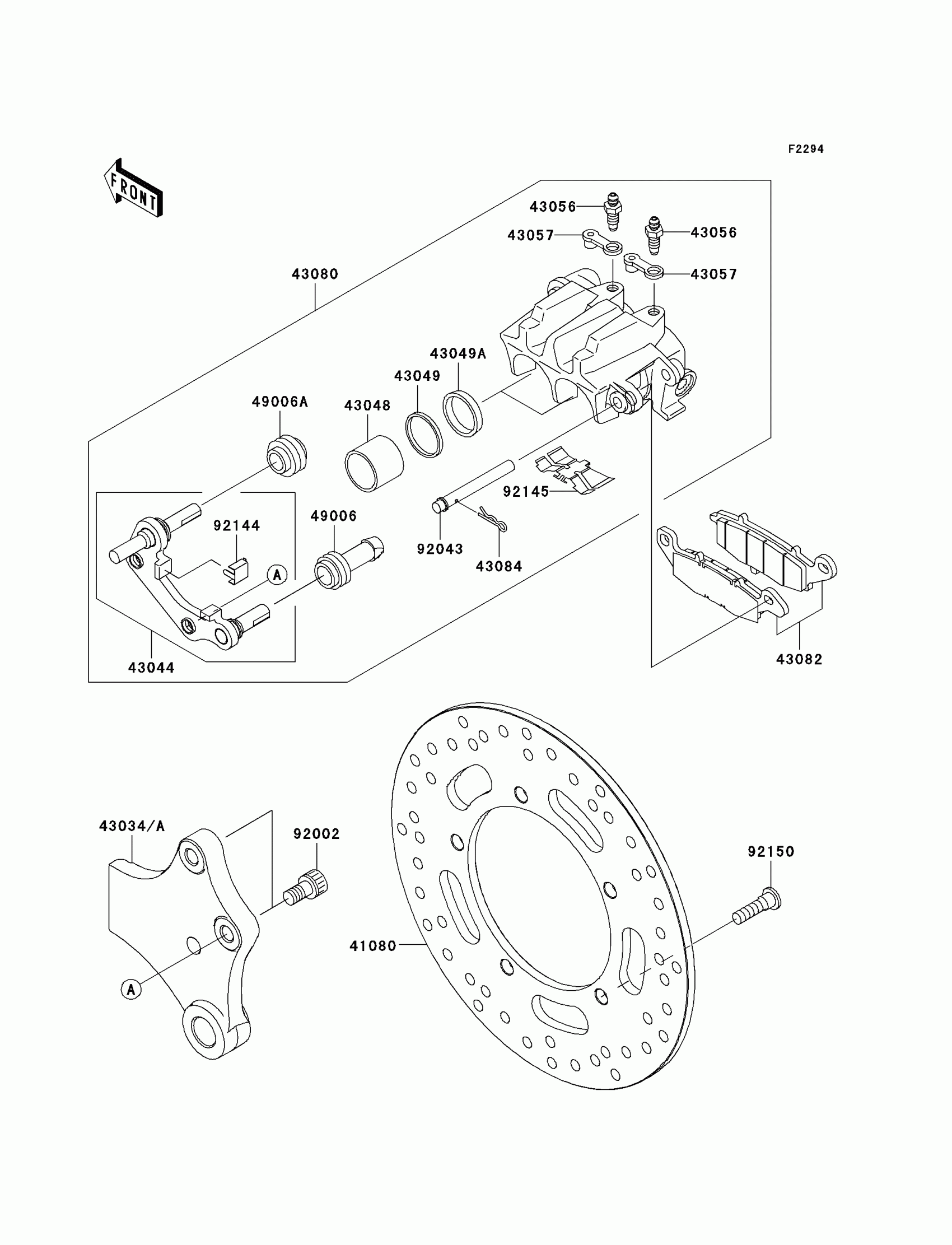

2010 Kawasaki Vulcan® 900 Classic Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,RR,SILVER

41080-0093-CM

1
Out of stock

43034A

HOLDER-BRAKE,REAR CALIPER

43034-0061

1
Out of stock

43044

HOLDER-COMP-CALIPER,RR

43044-1134

1
Out of stock

43048

PISTON-CALIPER

43048-1094

1
Out of stock

43049

PACKING

43049-1068

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1092

1
Out of stock

43056

BREATHER-BRAKE

43056-1054

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-5098-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0063

1
Out of stock

43084

CLAMP,PAD

43084-003

1
Out of stock

49006

BOOT,CALIPER

49006-1094

1
Out of stock

49006A

BOOT,CALIPER

49006-1095

1
Out of stock

92002

BOLT,SOCKET,10X17

92002-1713

1
Out of stock

92043

PIN,PAD

92043-1640

1
Out of stock

92144

SPRING,STOPPER

92144-1831

1
Out of stock

92145

SPRING,PAD

92145-1382

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1771

1
Out of stock
