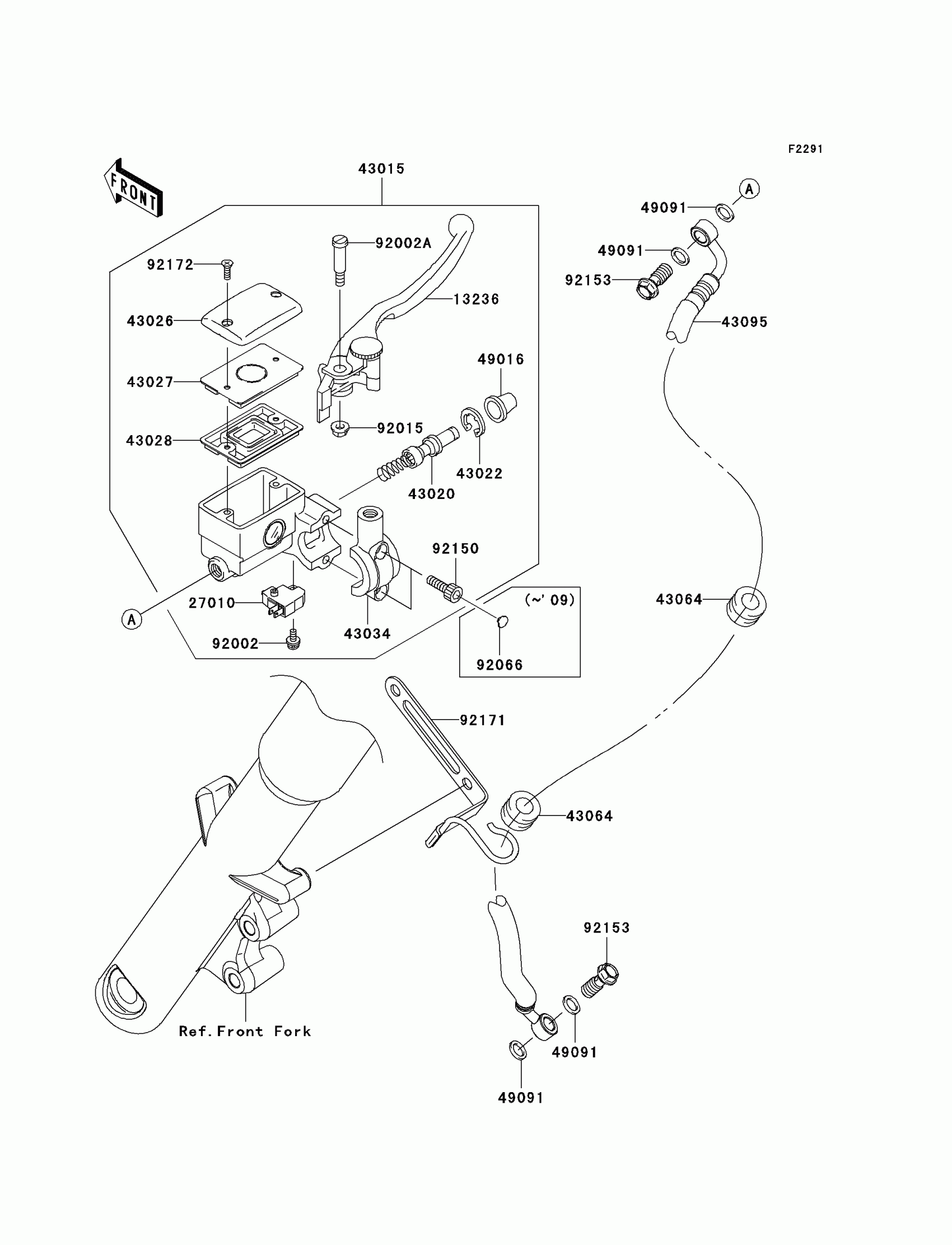

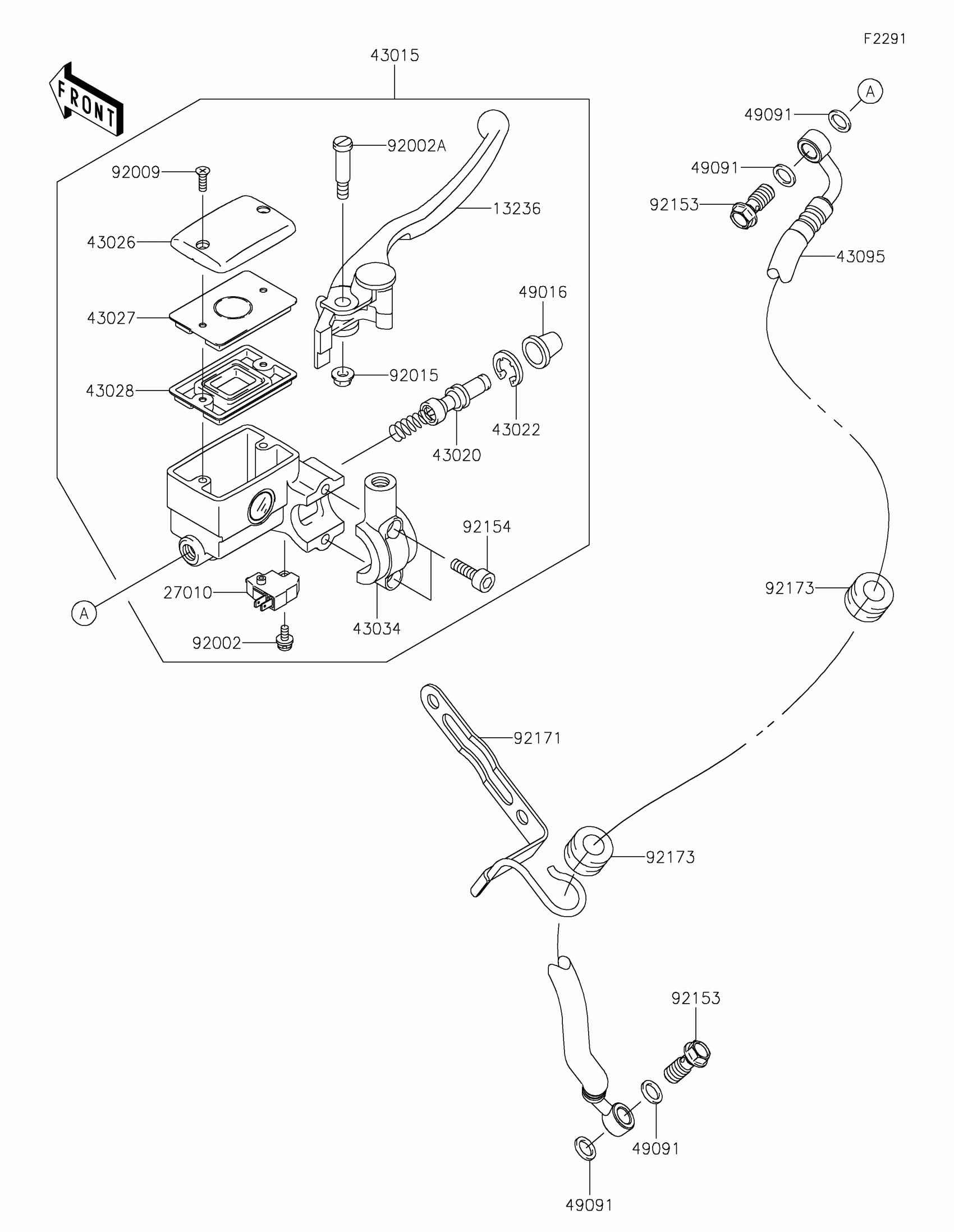

Kawasaki Vulcan® 900 Classic Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP,FRONT BRAKE

13236-1315

$44.27

27010

SWITCH,BRAKE

27010-0025

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0065

$421.11

43020

PISTON-COMP-BRAKE

43020-1098

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-0003

Unavailable

43027

PLATE-DIAPHRAGM

43027-1059

$5.78

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE

43034-1172

$38.17

43064

GROMMET,HOSE CLAMP

43064-006

$3.29

43095

HOSE-BRAKE,FR

43095-0291

$143.42

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT,LEVER SET

92002-1561

$11.22

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92150

BOLT,SOCKET,6MM

92150-1025

$7.56

92153

BOLT,OIL,L=23

92153-0627

$4.15

92171

CLAMP,BRAKE HOSE

92171-0770

$29.66

92172

SCREW

92172-0083

$3.34
