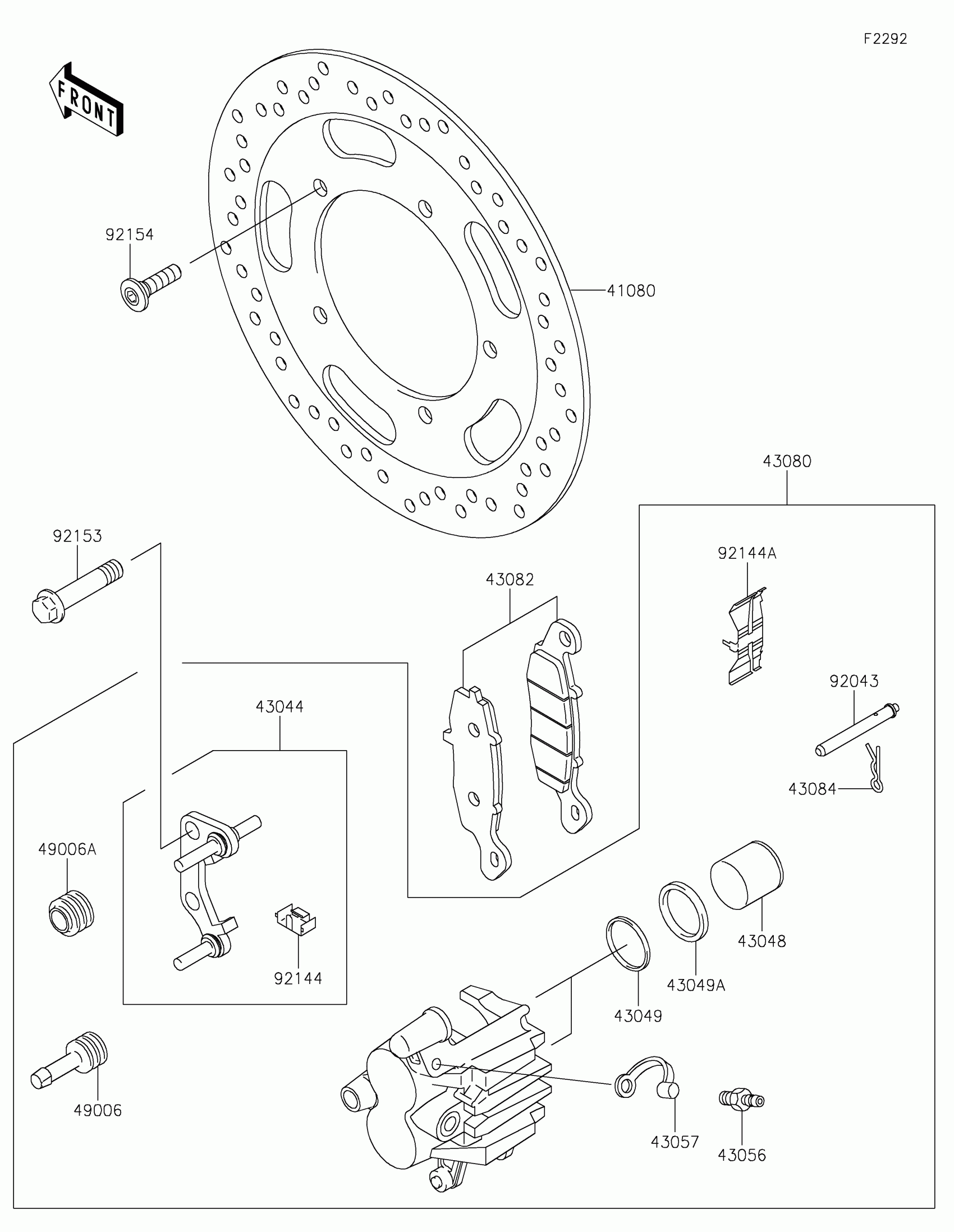

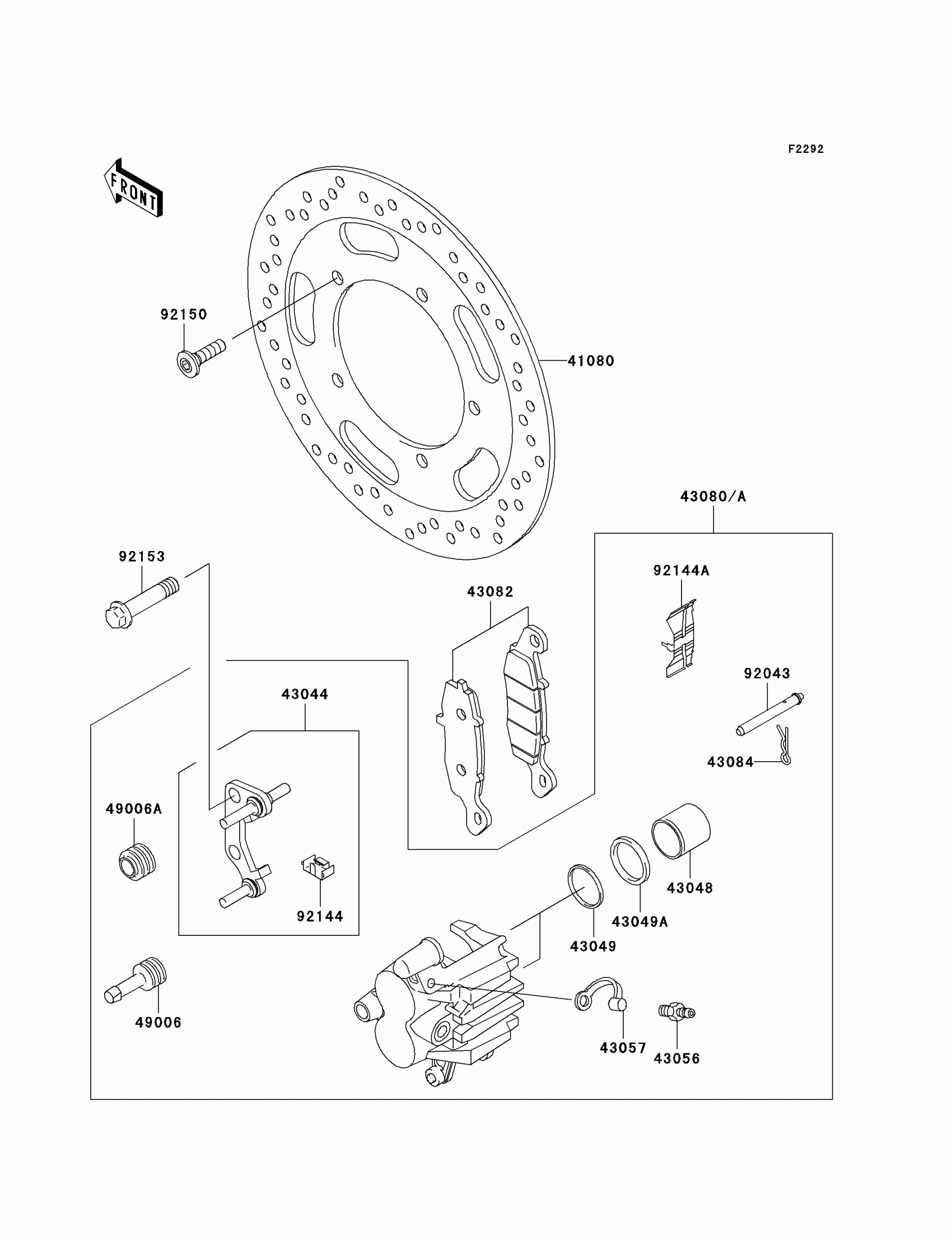

Kawasaki Vulcan® 900 Classic Front Brake Diagram

Description

Price

41080

DISC,FR,SILVER

41080-0095-CM

$461.72

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1115

$151.97

43048

PISTON-CALIPER

43048-1052

$59.59

43049

PACKING,PISTON

43049-1055

$8.59

43049A

PACKING,PISTON SEAL

43049-1096

$9.44

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43080A

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0076-DJ

$345.76

43082

PAD-ASSY-BRAKE

43082-0059

$77.94

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1095

$5.55

92043

PIN,PAD

92043-1489

$4.93

92144

SPRING,STOPPER

92144-1831

$4.14

92144A

SPRING,PAD,LH

92144-1832

$24.71

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92153

BOLT,FLANGED,10X47

92153-0740

$4.69
