2010 Kawasaki Vulcan® 900 Classic LT Clutch Diagram

← All diagrams

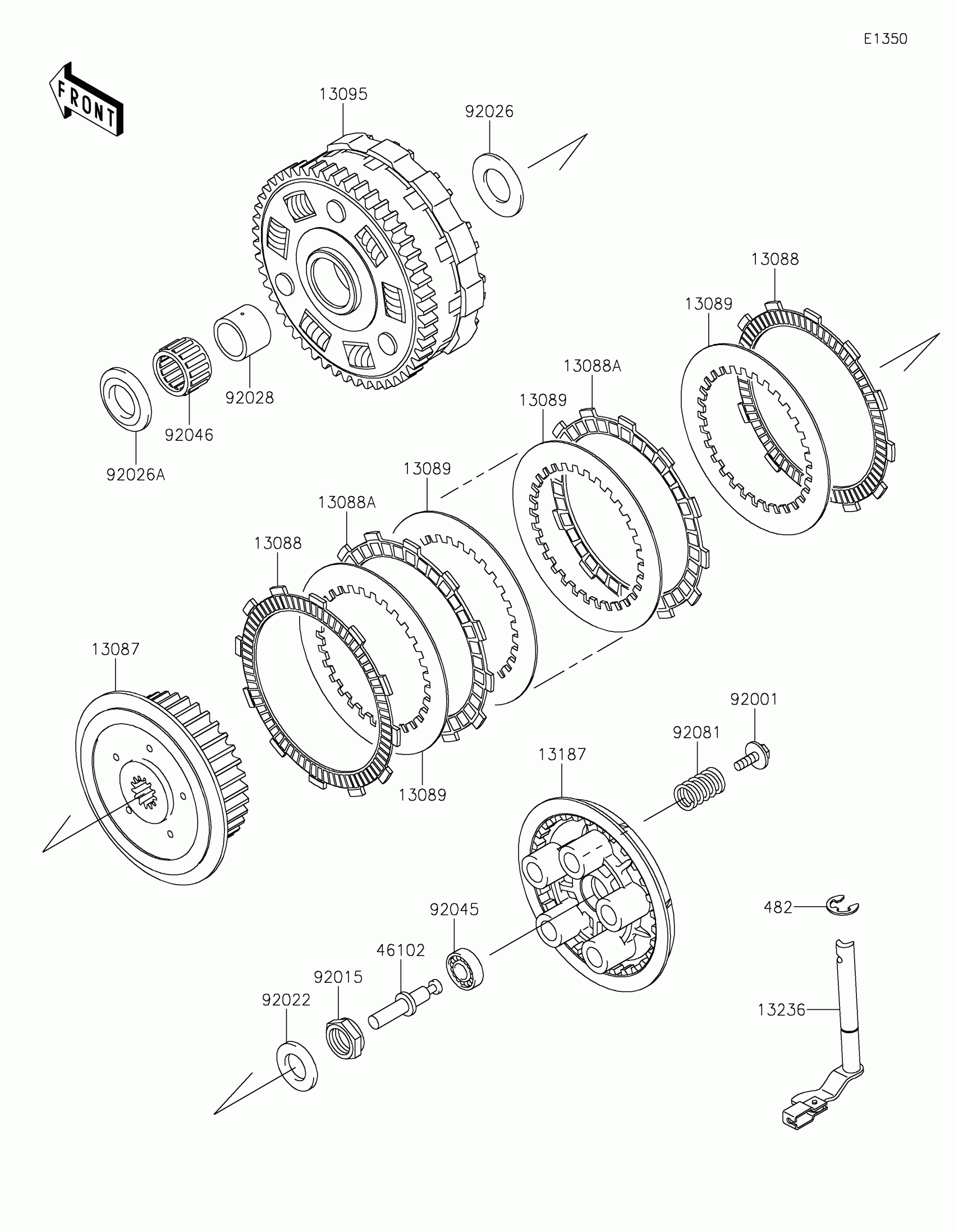

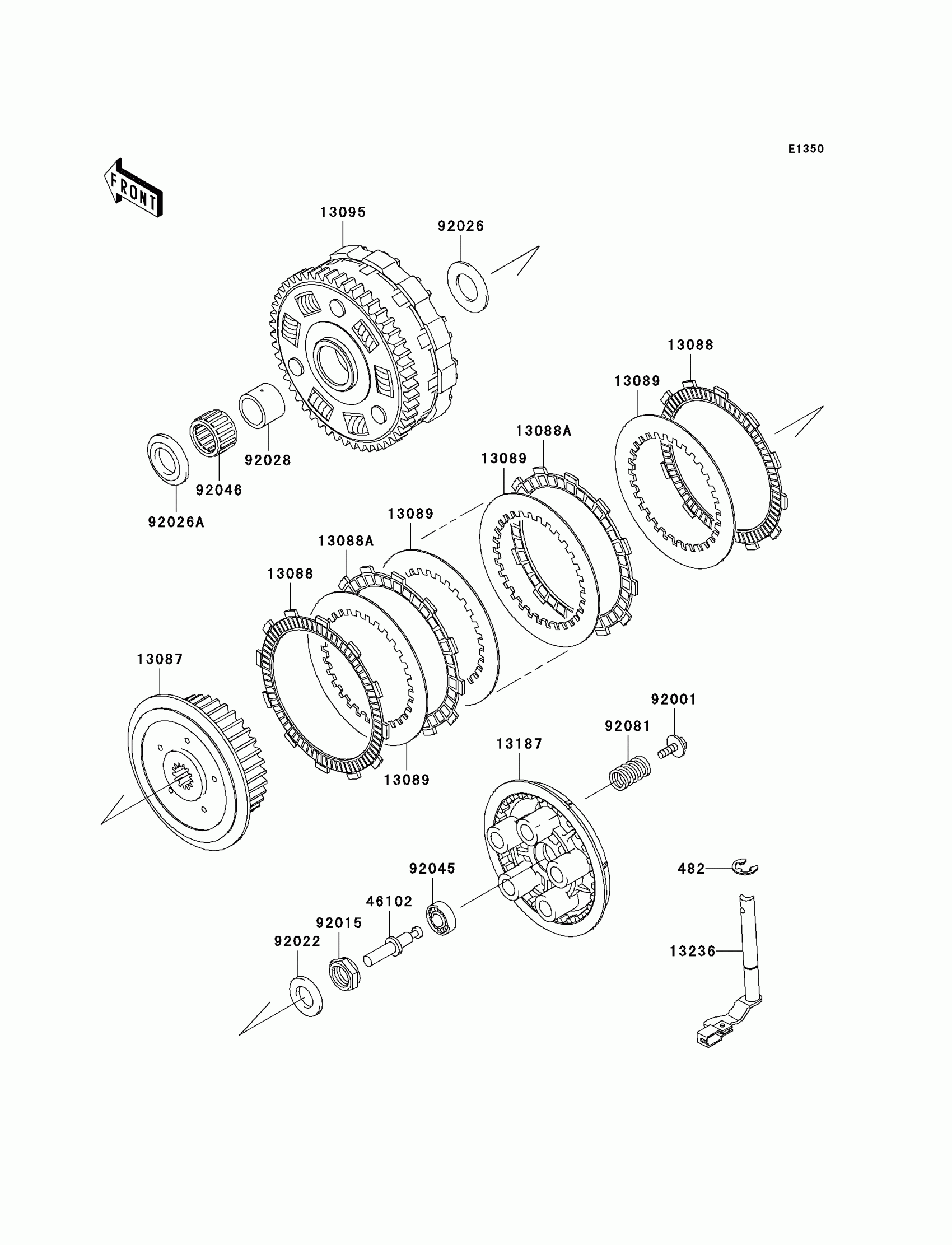

Find the part on the Clutch diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic LT Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

482

CIRCLIP-TYPE-E,10MM

482J0100

1
Out of stock

13087

HUB-CLUTCH

13087-0042

1
Out of stock

13088

PLATE-FRICTION

13088-0023

1
Out of stock

13088A

PLATE-FRICTION

13088-1133

1
Out of stock

13089

PLATE-CLUTCH

13089-027

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0054

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1006

1
Out of stock

13236

LEVER-COMP,CLUTCH RELEASE

13236-1269

1
Out of stock

46102

ROD,PULL

46102-1374

1
Out of stock

92001

BOLT,FLANGED,6X18

92001-1066

1
Out of stock

92015

NUT,20MM

92015-1555

1
Out of stock

92022

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

SPACER,THRUST,T=5.5

92026-116

1
Out of stock

92028

BUSHING,25X32X23.6

92028-178

1
Out of stock

92045

BEARING-BALL,6001C3ML01

92045-1235

1
Out of stock

92046

BEARING-NEEDLE,KTV323723

92046-028

1
Out of stock

92081

SPRING,CLUTCH

92081-1033

1
Out of stock
