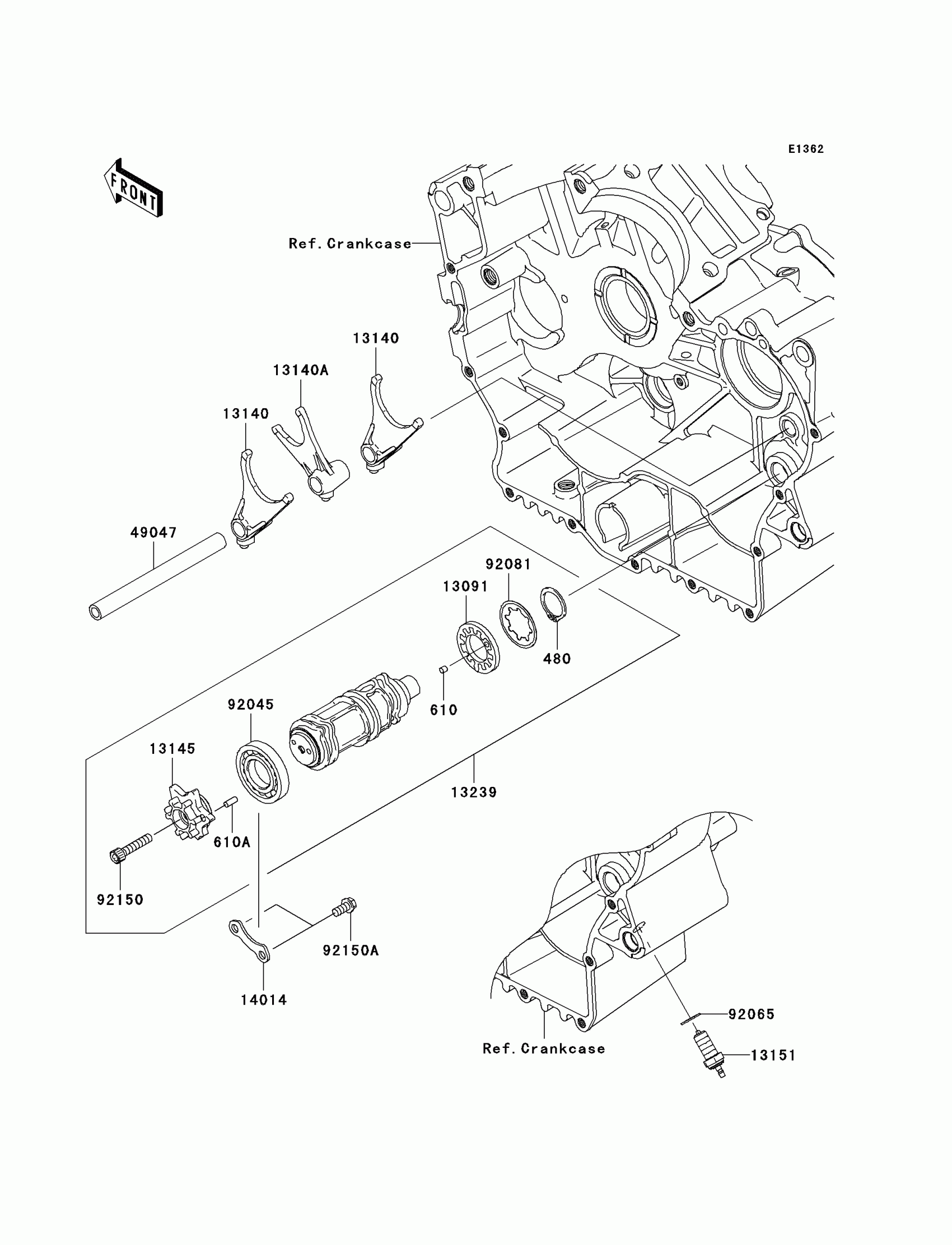

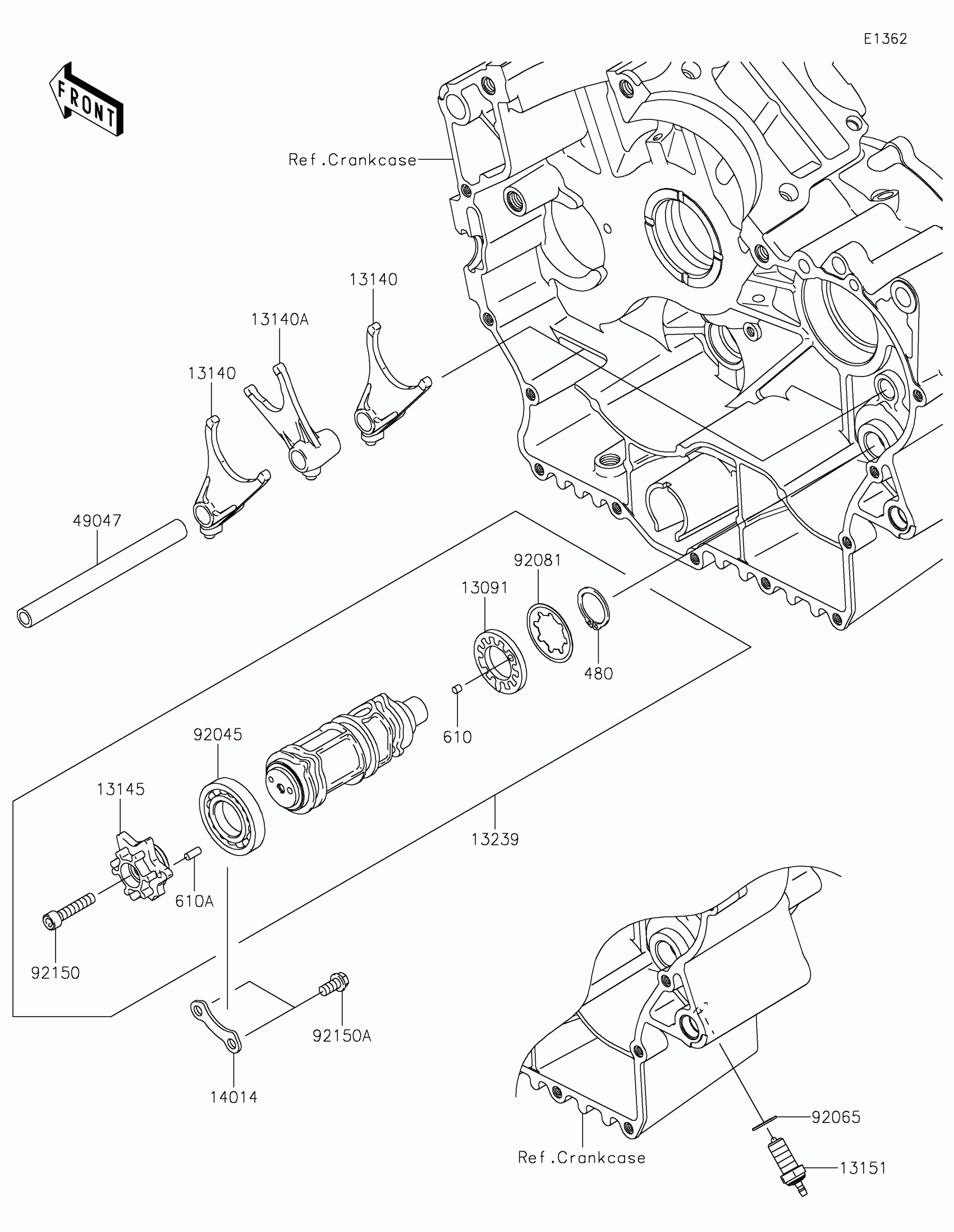

Kawasaki Vulcan® 900 Classic LT Gear Change Drum/Shift Fork(s) Diagram

Description

Price

480

CIRCLIP-TYPE-C,22MM

480J2200

$3.81

610

ROLLER,4X4

610A0404

$4.17

610A

ROLLER,4X10

610A0410

$3.29

13091

HOLDER,CHANGE DRUM

13091-1389

$21.76

13140

FORK-SHIFT

13140-0031

$64.91

13140A

FORK-SHIFT

13140-1138

$99.73

13145

CAM-CHANGE DRUM

13145-0028

$46.78

13151

SWITCH-COMP

13151-1085

$18.09

13239

DRUM-ASSY-CHANGE

13239-0018

$160.94

14014

PLATE-POSITION

14014-1014

$4.17

49047

ROD-SHIFT

49047-0036

$29.88

92045

BEARING-BALL,16005Z

92045-1030

Unavailable

92065

GASKET,10.5X16X1

92065-058

$3.03

92081

SPRING

92081-1895

$7.01

92150

BOLT,SOCKET,6X30

92150-1433

$3.71

92150A

BOLT,6X12

92150-1868

$2.66
