2010 Kawasaki Vulcan® 900 Classic Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

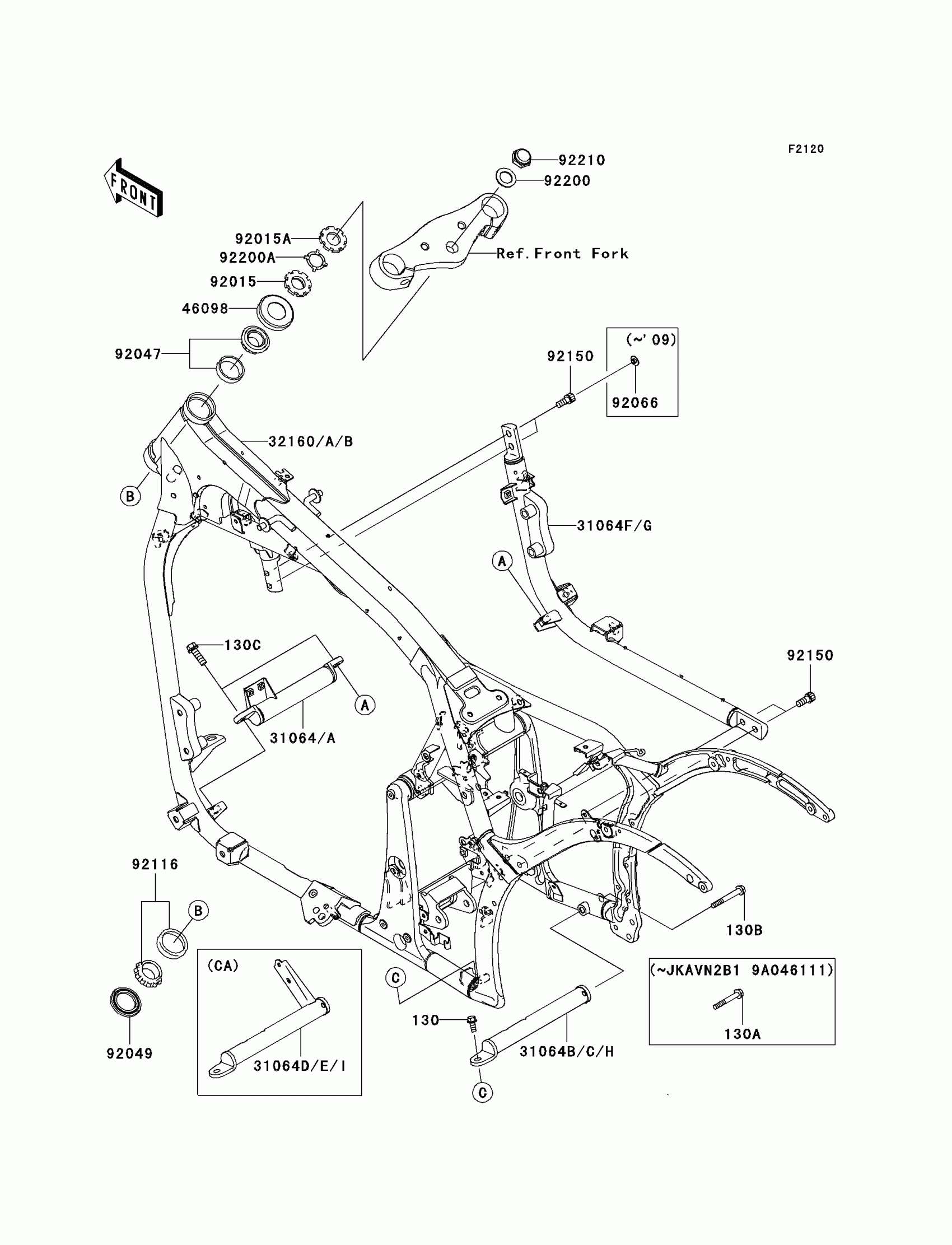

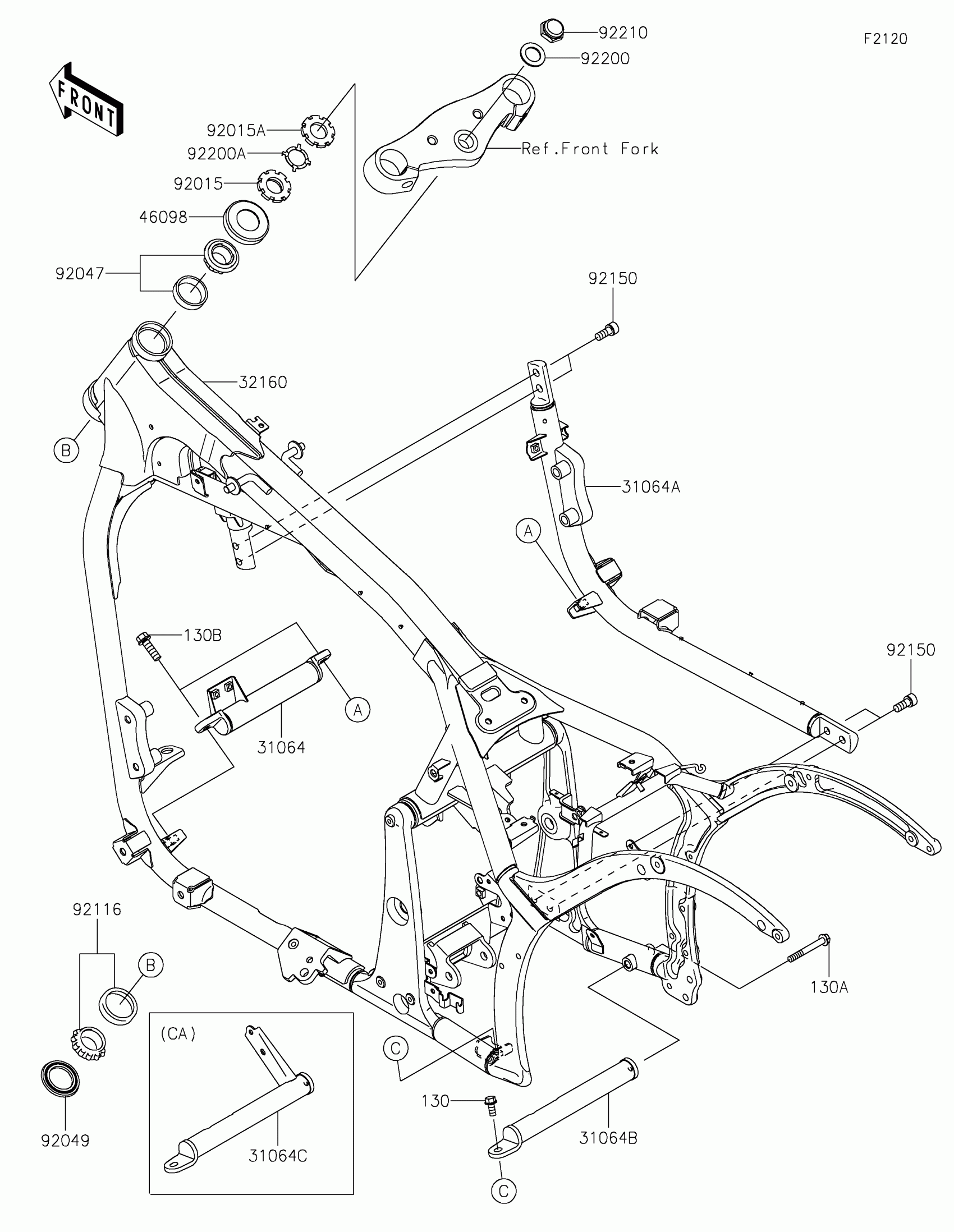

2010 Kawasaki Vulcan® 900 Classic Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

31064A

1

$107.62

In stock

31064G

1

$328.54

In stock

32160B

FRAME-COMP,F.S.BLACK

32160-0446-18R

1
Out of stock

46098

CAP,STEERING STEM

46098-017

1

$5.37

In stock

92015

NUT,25MM,T=10

92015-1377

1

$25.61

In stock

92015A

NUT,25MM,T=6

92015-1378

1

$19.42

In stock

92047

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92116

1

$33.21

In stock

92150

BOLT,SOCKET,10X23

92150-1942

1

$5.84

In stock

130

BOLT-FLANGED,8X18

130BB0818

1

$1.47

In stock

130B

BOLT-FLANGED,8X65

130BB0865

1

$4.53

In stock

130C

BOLT-FLANGED,10X25

130BB1025

1

$4.63

In stock

92200

WASHER,22.5X36X2.3

92200-0270

1
Out of stock

92200A

WASHER,CLAW,25.5X34X0.6

92200-0353

1
Out of stock

92210

NUT,CAP,22MM

92210-0263

1
Out of stock

31064H

1

$76.10

In stock

31064I

1

$76.10

In stock
