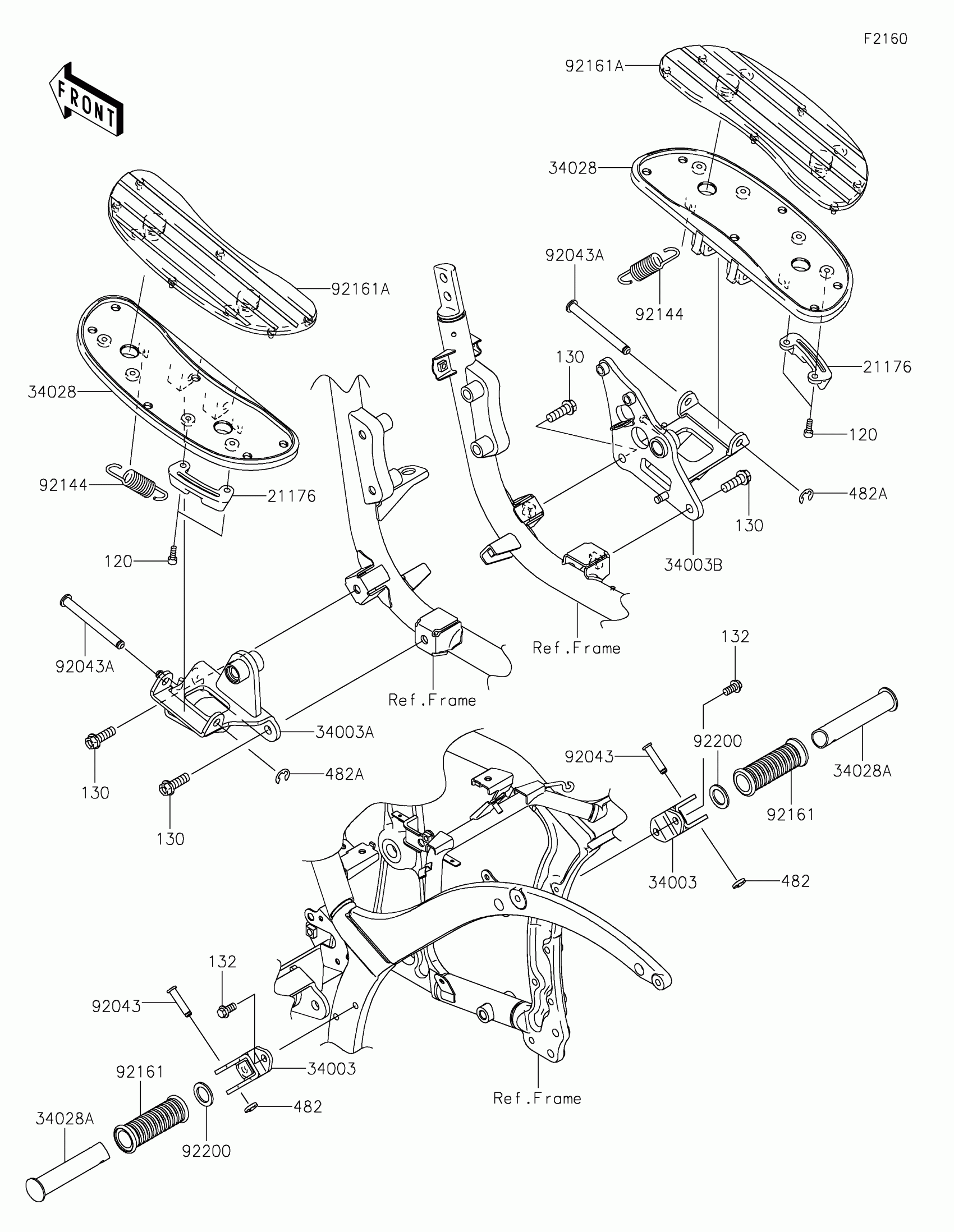

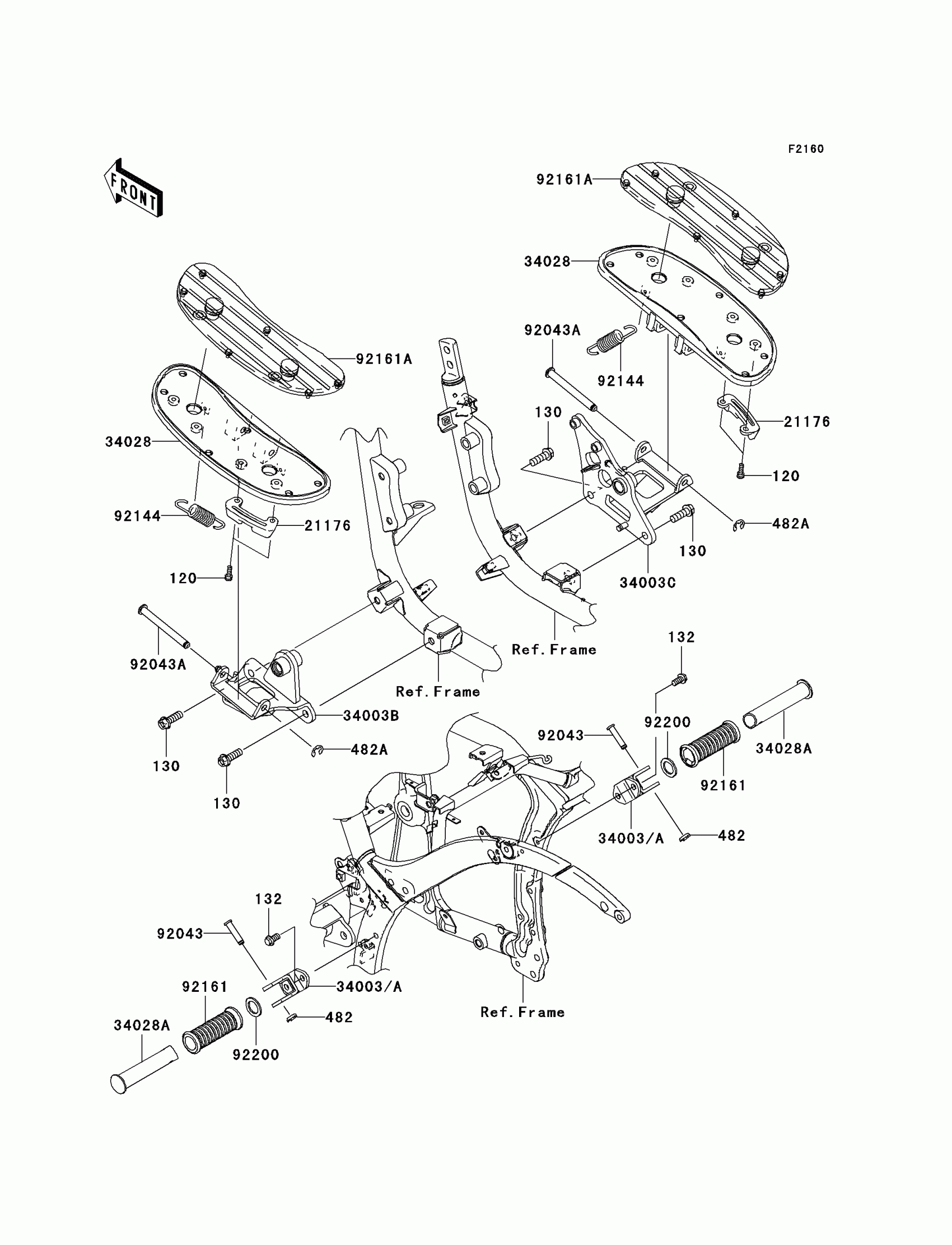

Kawasaki Vulcan® 900 Classic Footrests Diagram

Description

Price

120

BOLT-SOCKET,6X16

120CB0616

$1.00

130

BOLT-FLANGED,10X30

130BB1030

$4.93

132

BOLT-FLANGED-SMALL,8X16

132BB0816

$3.69

482

CIRCLIP-TYPE-E

482EA7000

$2.99

482A

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63

21176

SENSOR,BANK

21176-0021

$18.58

34003A

HOLDER-STEP,RR,F.S.BLACK

34003-0030-18R

$40.40

34003B

HOLDER-STEP,FR,LH

34003-0039

$165.51

34003C

HOLDER-STEP,FR,RH

34003-0050

$210.29

34028

STEP,FR

34028-0011

$95.68

34028A

STEP,RR

34028-0017

$21.92

92043

PIN,8X36.5

92043-1339

$7.71

92043A

PIN,10X98.5

92043-1707

$10.10

92144

SPRING

92144-1266

$6.70

92161

DAMPER,STEP

92161-0232

$15.61

92161A

DAMPER,FRONT STEP

92161-1325

$62.82

92200

WASHER,22.5X33X2.3

92200-1482

$2.25
