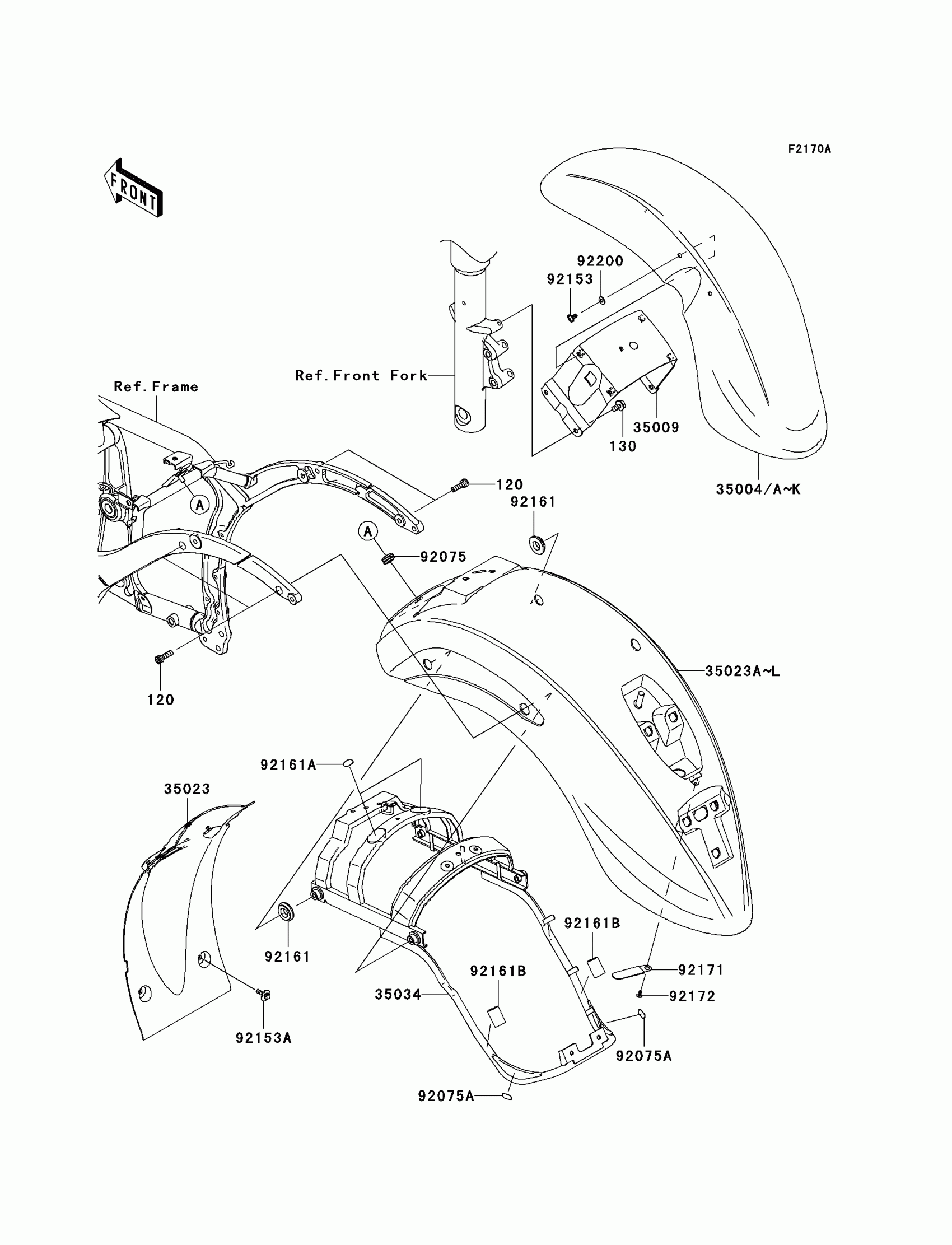

Kawasaki Vulcan® 900 Classic Fenders(JKAVN2B1 7A016370-) Diagram

Description

Price

35004K

FENDER-FRONT,C.F.RED

35004-0062-816

$253.62

35009

BRACE,FRONT FENDER

35009-0014

$47.69

35023

FENDER-REAR,INNER

35023-0073

$49.01

120

BOLT-SOCKET,8X25

120CA0825

$1.55

130

BOLT-FLANGED,8X14

130BB0814

$3.69

35023L

FENDER-REAR,C.F.RED

35023-0114-816

$350.48

35034

REINFORCE,REAR FENDER

35034-0090

$215.56

92075

DAMPER

92075-1067

$3.72

92075A

DAMPER

92075-1841

$4.17

92153

BOLT,SOCKET,6X16

92153-0817

$1.81

92153A

BOLT,6X20

92153-1599

$1.53

92161

DAMPER

92161-0375

$3.11

92161A

DAMPER

92161-0406

$2.42

92161B

DAMPER

92161-0459

$5.31

92171

CLAMP

92171-0181

$7.80

92172

SCREW,TAPPING,4X10

92172-0172

$3.71

92200

WASHER,6.5X14X1

92200-1388

$2.03

35004G

FENDER-FRONT,C.I.BLUE

35004-0062-25U

$256.75

35004H

FENDER-FRONT,M.S.BLACK

35004-0062-660

$244.92

35023H

FENDER-REAR,C.I.BLUE

35023-0114-25U

$352.22

35023I

FENDER-REAR,M.S.BLACK

35023-0114-660

$336.23
