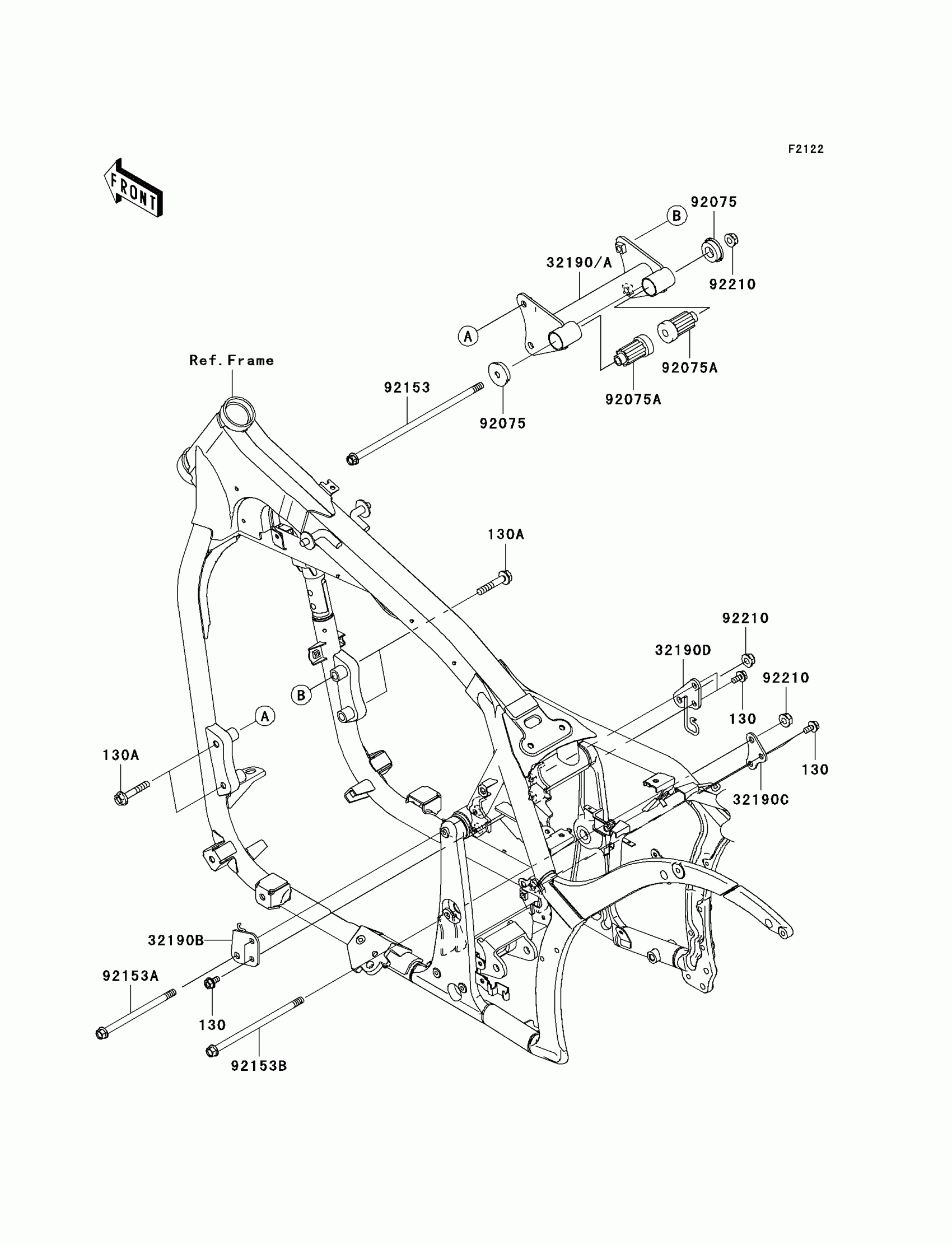

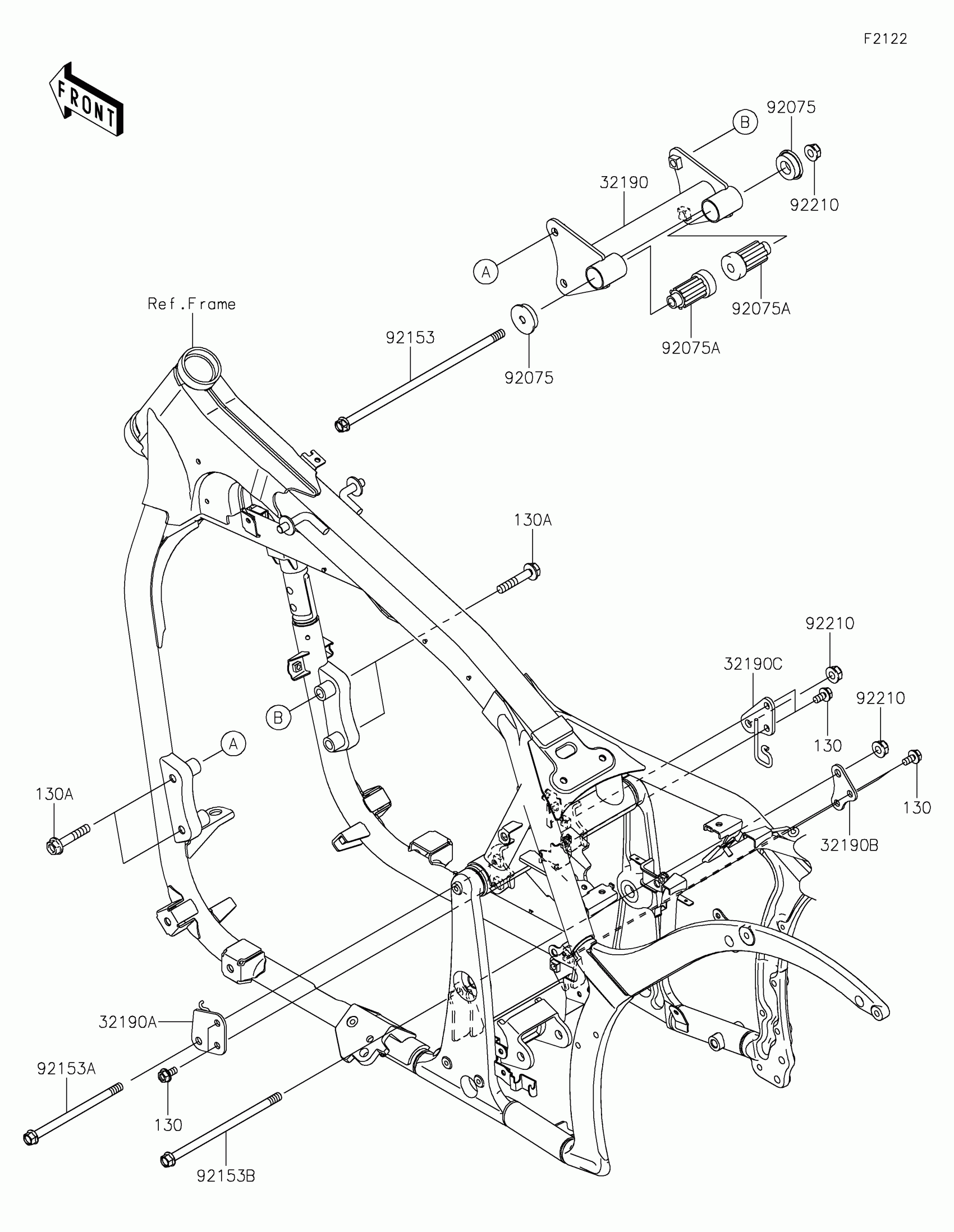

Kawasaki Vulcan® 900 Classic Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X16

130BB0816

$1.27

130A

BOLT-FLANGED,10X55

130BB1055

$4.99

32190A

BRACKET-ENGINE,FR,F.S.BLACK

32190-0229-18R

$105.75

32190B

BRACKET-ENGINE,RR,LH,UPP

32190-0274

$14.39

32190C

BRACKET-ENGINE,RR,RH,LWR

32190-0275

$4.95

32190D

BRACKET-ENGINE,RR,RH,UPP

32190-0276

$17.39

92075

DAMPER,ENGINE MOUNT

92075-1738

$18.93

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$28.62

92153

BOLT,FLANGED,10X285

92153-1909

$21.24

92153A

BOLT,FLANGED,10X158

92153-1910

$10.85

92153B

BOLT,FLANGED,10X198

92153-1911

$12.58

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$9.39
