1995 Kawasaki Vulcan 88 Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

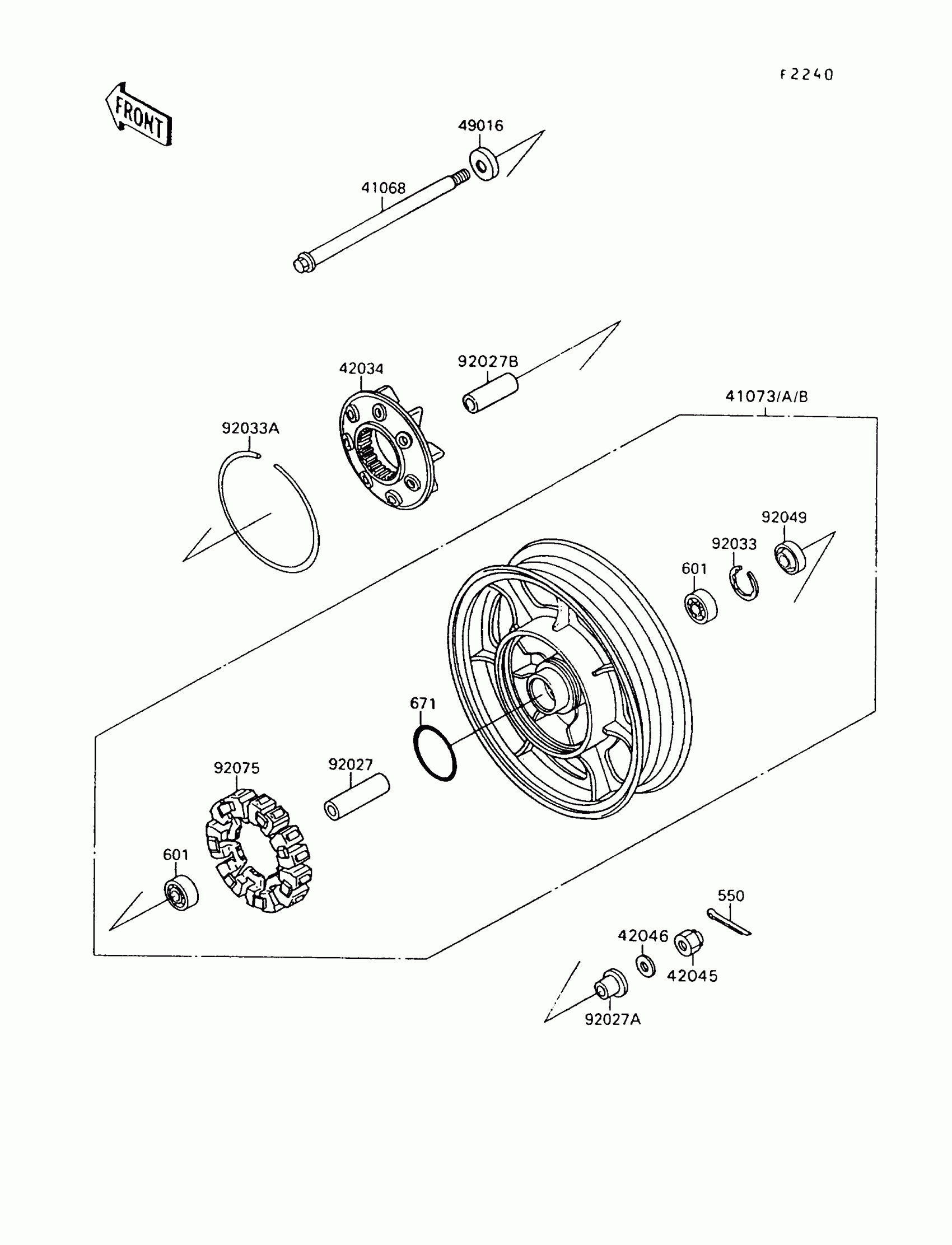

1995 Kawasaki Vulcan 88 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6304UUC3

601B6304UU

1
Out of stock

671

O RING,80MM

671B2580

1
Out of stock

41068

AXLE,RR

41068-1197

1
Out of stock

41073B

WHEEL-ASSY,RR,BLACK

41073-1588-18

1
Out of stock

42034

COUPLING,RR HUB

42034-1011

1
Out of stock

42045

NUT,CASTLE,18MM

42045-018

1
Out of stock

42046

WASHER,21X33X2.6

42046-003

1
Out of stock

49016

COVER-SEAL

49016-1019

1
Out of stock

92027

COLLAR,20.2X28X105.5

92027-1901

1
Out of stock

92027A

COLLAR,RR AXLE,L=21.5

92027-1902

1
Out of stock

92027B

COLLAR,20.2X28X86

92027-1969

1
Out of stock

92033

RING-SNAP,52MM

92033-1043

1
Out of stock

92033A

RING-SNAP,220MM

92033-1230

1
Out of stock

92049

SEAL-OIL,28X52X5

92049-1061

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1121

1
Out of stock
