1991 Kawasaki Vulcan 88 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

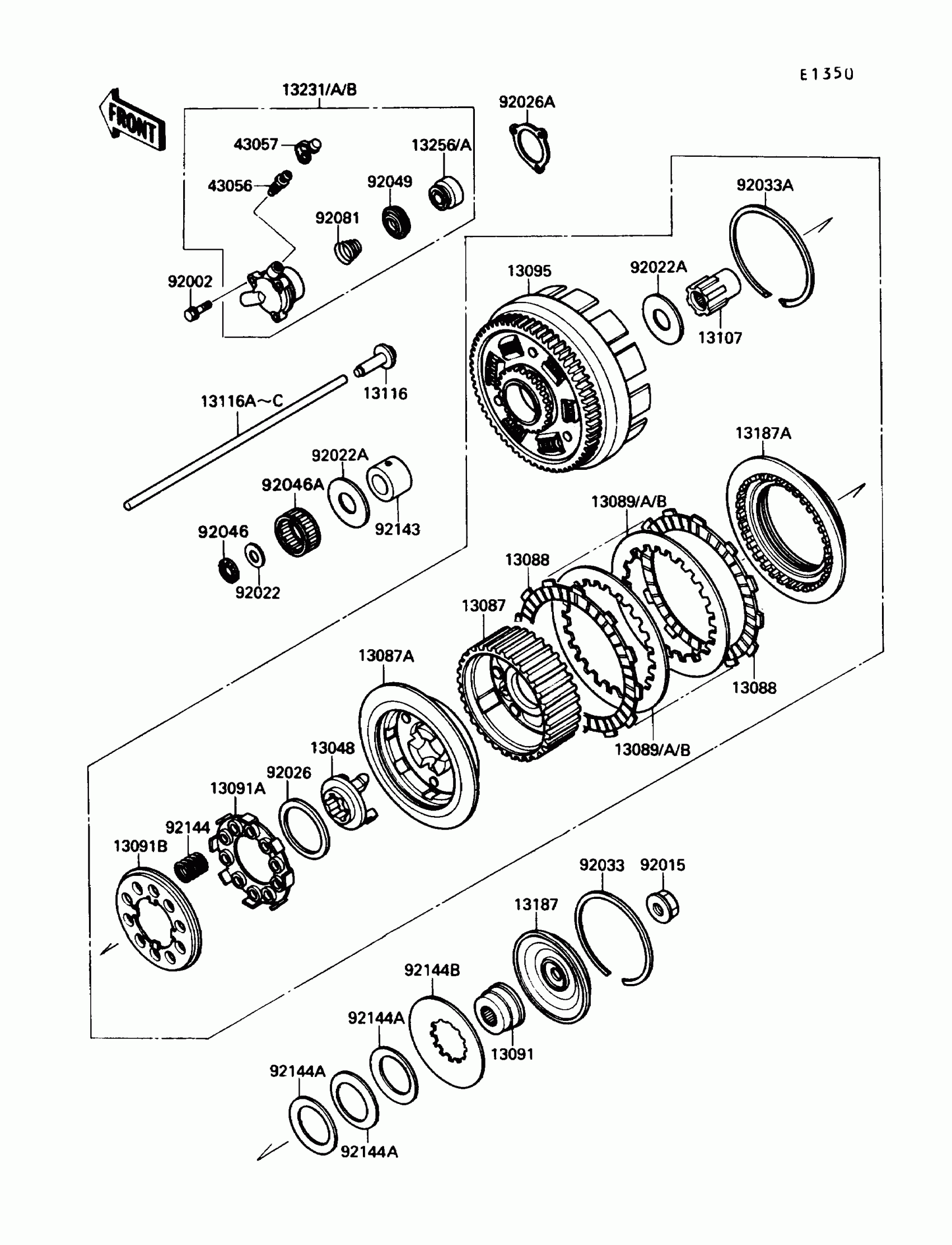

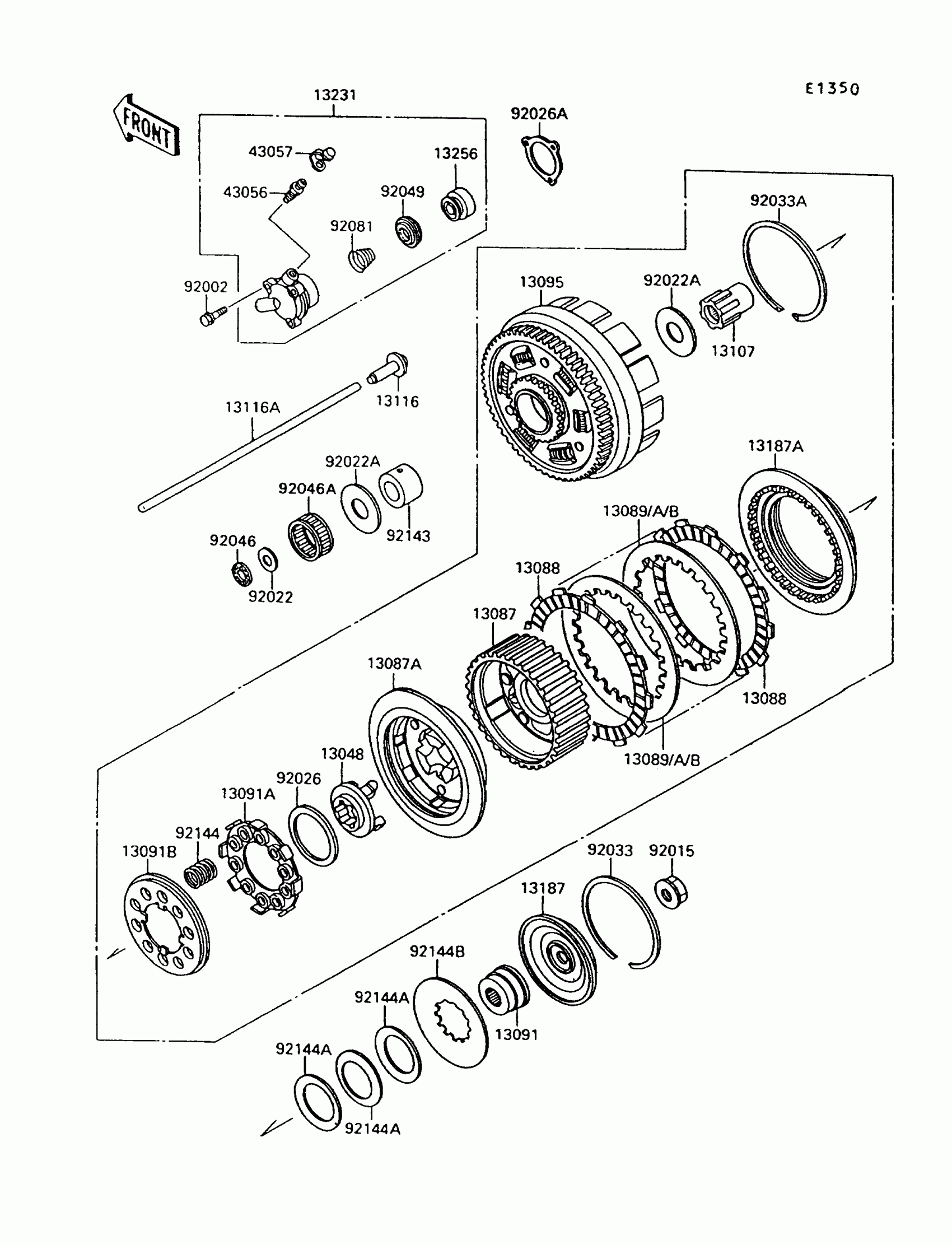

1991 Kawasaki Vulcan 88 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13048

CAM-DAMPER

13048-1007

1

$93.42

In stock

13087

HUB-CLUTCH,OUTER

13087-1103

1

$251.85

In stock

13087A

HUB-CLUTCH,INNER

13087-1110

1

$321.81

In stock

13088

PLATE-FRICTION

13088-1018

1

$18.60

In stock

13089

PLATE-CLUTCH,T=2.0

13089-1075

—

$11.09

In stock

13089A

PLATE-CLUTCH,T=1.6

13089-1080

—

$12.18

In stock

13089B

PLATE-CLUTCH,T=2.3

13089-1081

—

$12.18

In stock

13091

1

$67.25

In stock

13091A

1

$102.58

In stock

13091B

1

$93.68

In stock

13095

HOUSING-COMP-CLUTCH

13095-1168

1
Out of stock

13107

1

$104.77

In stock

13116

ROD-PUSH,CLUTCH

13116-1102

1

$37.48

In stock

13116B

ROD-PUSH

13116-1132

1

$31.65

In stock

13187

PLATE-CLUTCH OPERATING

13187-1063

1
Out of stock

13187A

1

$97.66

In stock

13231A

RELEASE-ASSY-CLUTCH

13231-1064

1
Out of stock

13256A

PISTON

13256-1052

1
Out of stock

43056

BREATHER

43056-1052

1

$11.32

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

92002

BOLT,6X25

92002-1612

1
Out of stock

92015

NUT,20MM

92015-1461

1

$23.66

In stock

92022

WASHER,15.1X29X1.0

92022-1463

1

$3.58

In stock

92022A

WASHER,25.3X56X2.0

92022-1857

1
Out of stock

92026

SPACER,59X70X3.5

92026-1043

1

$30.12

In stock

92026A

1

$13.20

In stock

92033

RING-SNAP

92033-1238

1

$14.81

In stock

92033A

RING-SNAP

92033-1239

1
Out of stock

92046

1

$11.45

In stock

92046A

BEARING-NEEDLE,RS40/29A

92046-1175

1
Out of stock

92049

SEAL-OIL,PISTON

92049-1165

1
Out of stock

92081

1

$6.75

In stock

92143

COLLAR,INPUT SHAFT

92143-1076

1

$54.08

In stock

92144

SPRING,DAMPER

92144-1187

1

$11.25

In stock

92144A

SPRING,LIMITER

92144-1188

1

$10.54

In stock

92144B

SPRING,CLUTCH

92144-1295

1

$33.65

In stock
