1991 Kawasaki Vulcan 88 Drive Shaft/final Gear Diagram

← All diagrams

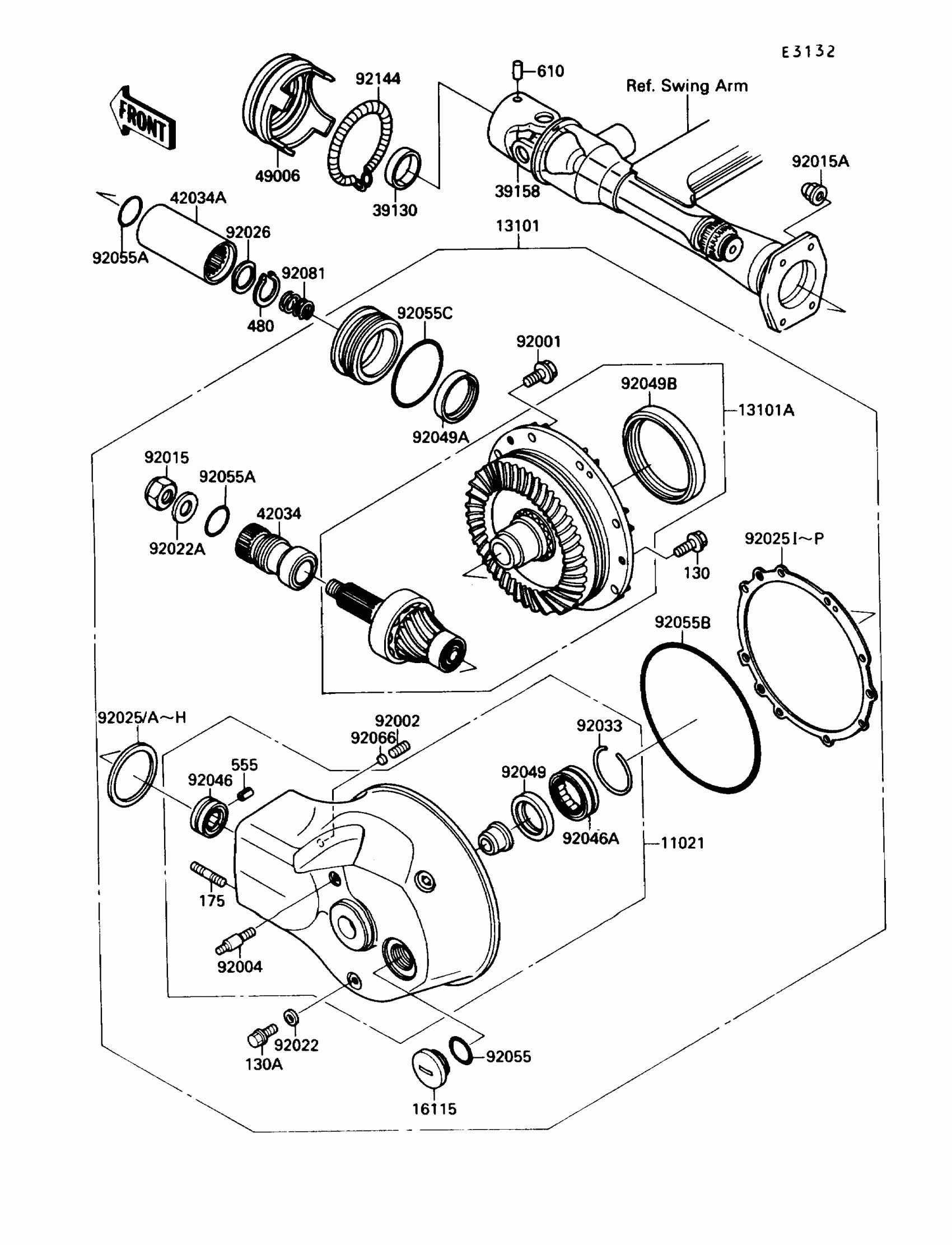

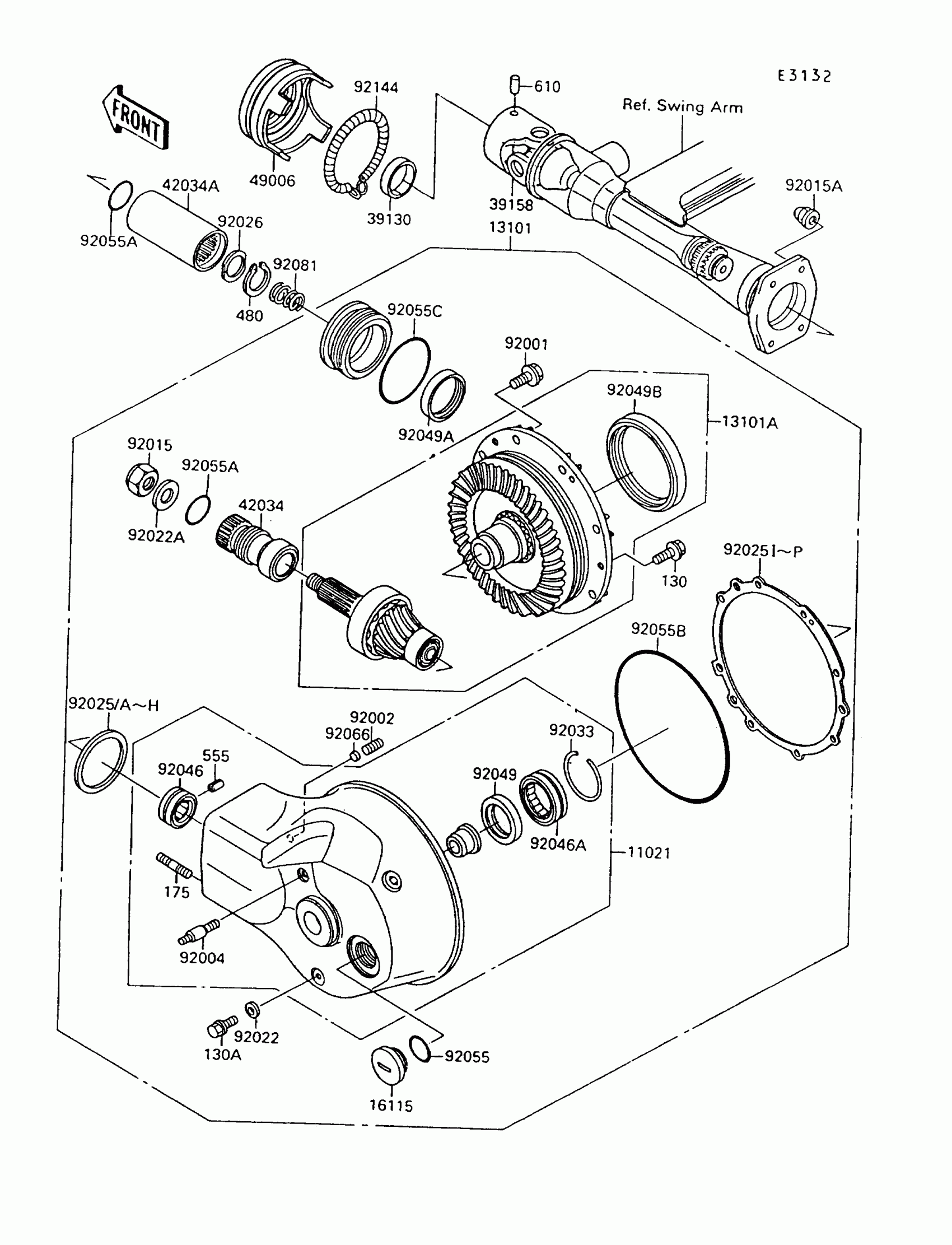

Find the part on the Drive Shaft/final Gear diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Vulcan 88 Drive Shaft/final Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11021

CASE-ASSY,FINAL GEAR

11021-1065

1
Out of stock

13101

GEAR-ASSY,FINAL

13101-1164

1
Out of stock

13101A

GEAR-ASSY,BEVEL,RR

13101-5072

1
Out of stock

16115

CAP-OIL FILLER

16115-1056

1
Out of stock

39130

SPRING-LEAF

39130-1002

1
Out of stock

39158

SHAFT-ASSY-DRIVE

39158-1062

1
Out of stock

42034

COUPLING

42034-1085

1
Out of stock

42034A

COUPLING,PROPELLER SHAFT,OUTER

42034-1092

1
Out of stock

49006

BOOT,DRIVE SHAFT

49006-1226

1
Out of stock

92001

BOLT,10X23

92001-1778

1
Out of stock

92002

SCREW-SET-SOCKET,8X18

92002-1836

1
Out of stock

92004

STUD,RR SHOCKABSORBER

92004-1047

1
Out of stock

92015

NUT,16MM

92015-1059

1
Out of stock

92015A

NUT,10MM

92015-1649

1
Out of stock

92022

WASHER,8.2X16X1

92022-1086

1
Out of stock

92022A

WASHER,16X32X3.2

92022-1105

1
Out of stock

92025

SHIM,T=0.10

92025-1733

—
Out of stock

92025A

SHIM,T=0.15

92025-1734

—
Out of stock

92025B

SHIM,T=0.50

92025-1735

—
Out of stock

92025C

SHIM,T=0.60

92025-1736

—
Out of stock

92025D

SHIM,T=0.70

92025-1737

—
Out of stock

92025E

SHIM,T=0.80

92025-1738

—
Out of stock

92025F

SHIM,T=0.90

92025-1739

—
Out of stock

92025G

SHIM,T=1.00

92025-1740

—
Out of stock

92025H

SHIM,T=1.20

92025-1741

—
Out of stock

92025I

SHIM,T=0.15

92025-1783

—
Out of stock

92025J

SHIM,T=0.50

92025-1784

—
Out of stock

92025K

SHIM,T=0.60

92025-1785

—
Out of stock

92025L

SHIM,T=0.70

92025-1786

—
Out of stock

92025M

SHIM,T=0.80

92025-1787

—
Out of stock

92025N

SHIM,T=0.90

92025-1788

—
Out of stock

92025O

SHIM,T=1.00

92025-1789

—
Out of stock

92025P

SHIM,T=1.20

92025-1790

—
Out of stock

92026

SPACER,26.2X36X2

92026-1085

1
Out of stock

92033

RING-SNAP,52MM

92033-1074

1
Out of stock

92046

BEARING-NEEDLE,RNA4904ARD

92046-1168

1
Out of stock

92046A

BEARING-NEEDLE,38NQ5020WD

92046-1169

1
Out of stock

92049

SEAL-OIL,S-35477HS

92049-1025

1
Out of stock

92049A

SEAL-OIL

92049-1248

1
Out of stock

92049B

SEAL-OIL,MHSA83X100X9XRT

92049-1280

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92055A

RING-O,ID=32.7

92055-1037

1
Out of stock

92055B

RING-O,154X3

92055-1165

1
Out of stock

92055C

RING-O,67.6X3.5

92055-1327

1
Out of stock

92066

PLUG,6.2X3

92066-1272

1
Out of stock

92081

SPRING

92081-1183

1
Out of stock

92144

SPRING,BOOT

92144-1194

1
Out of stock

130

BOLT-FLANGED,8X25

130G0825

1
Out of stock

130A

BOLT-FLANGED

130N0812

1
Out of stock

175

BOLT-STUD-FINE

175G1025

1
Out of stock

480

CIRCLIP-TYPE-C,26MM

480J2600

1
Out of stock

555

PIN-SPRING

555A0428

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock
