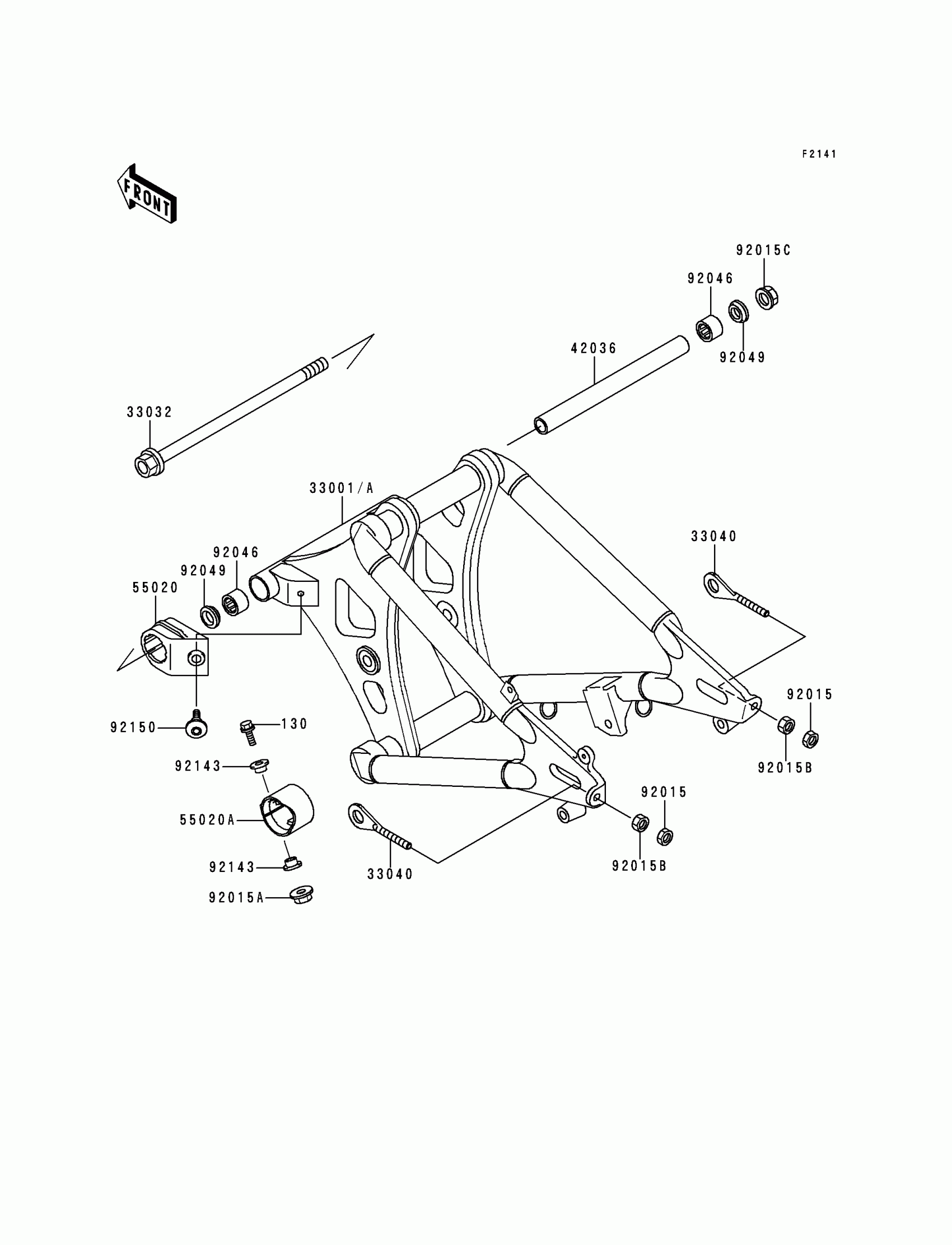

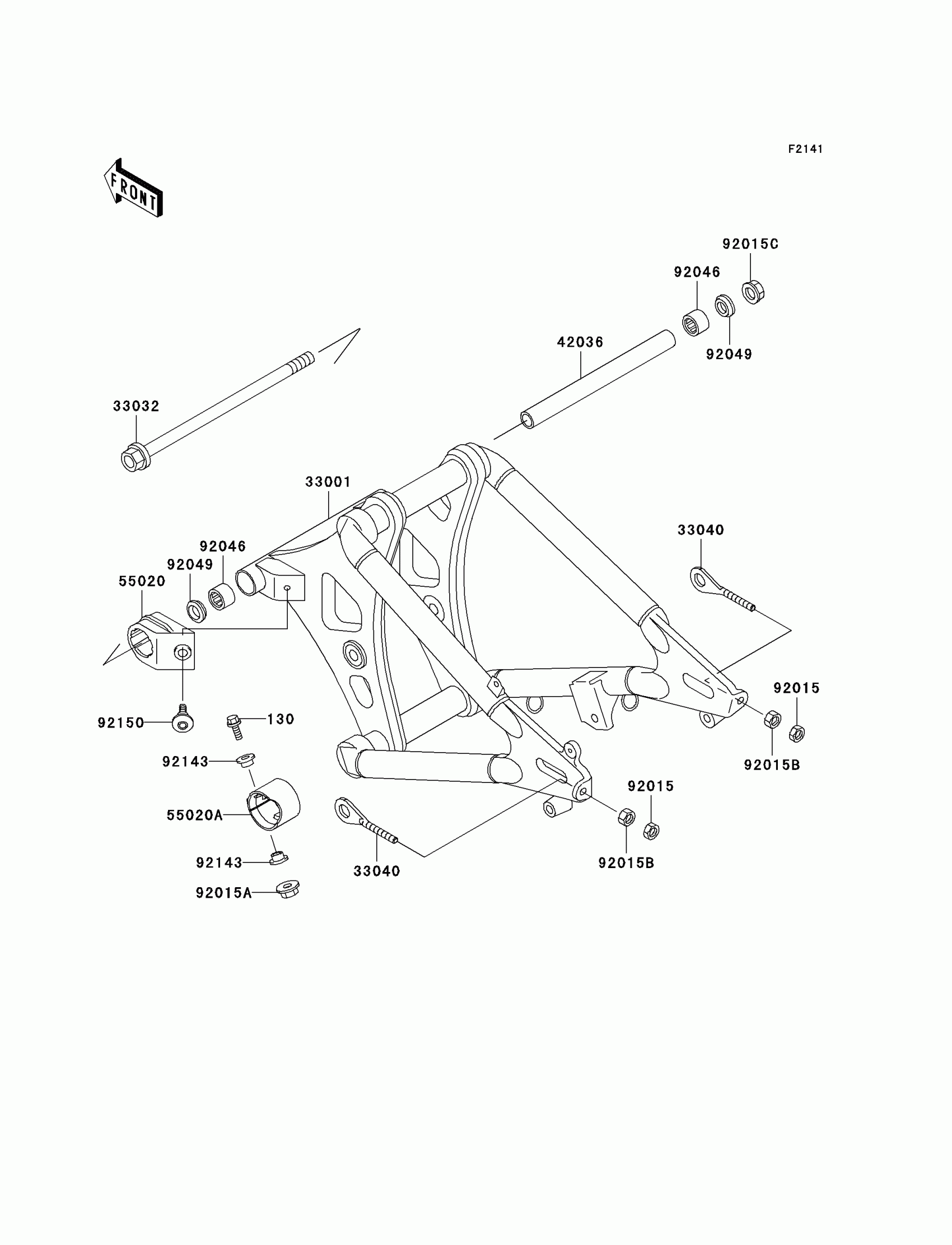

Kawasaki Vulcan 800 Swingarm Diagram

Description

Price

130

BOLT-FLANGED,6X25

130J0625

Unavailable

33001A

ARM-COMP-SWING

33001-1509

$635.36

33032

SHAFT-SWING ARM

33032-1177

$68.95

33040

ADJUSTER-CHAIN

33040-1146

$32.41

42036

SLEEVE,SWING ARM,L=243

42036-1324

$43.25

55020

GUARD,CHAIN PIVOT

55020-1530

$53.49

55020A

GUARD,CHAIN CLOSS

55020-1531

$24.97

92015

NUT,8MM

92015-1364

$2.99

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92015B

NUT,8MM

92015-1658

$3.71

92015C

NUT,FLANGED,16MM

92015-1946

$12.17

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$32.96

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

$8.63

92143

COLLAR,L=6.6

92143-1088

$4.68

92150

BOLT,SOCKET,6MM

92150-1154

$5.99
